03108 - Toro 58" Professional Reel Riding Mower (SN: 001000001 - 001999999) (1981) ENGINE ASSEMBLY Parts Diagram

58" Professional Reel Riding Mower

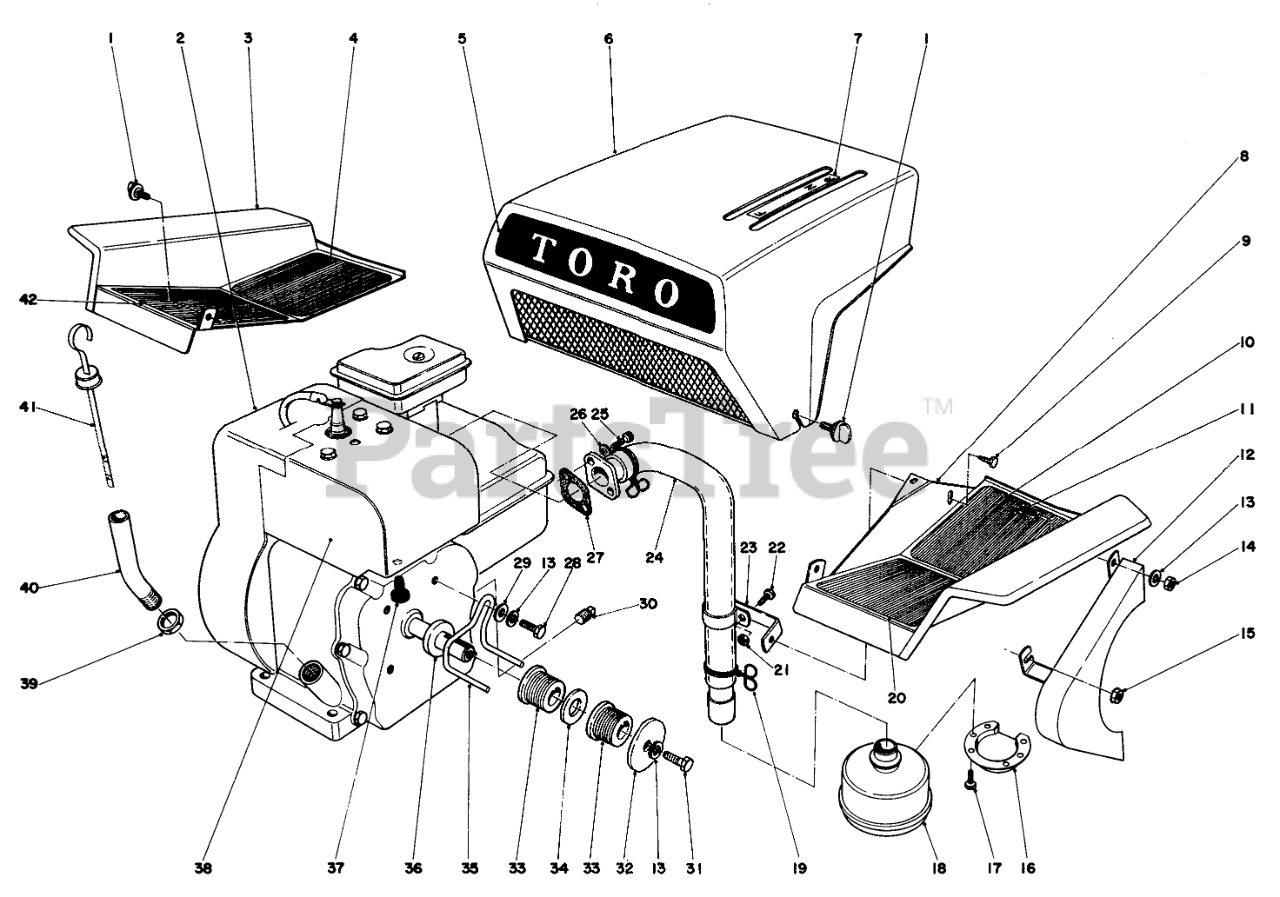

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 5-0680

THUMB SCREW WA

$

$

Not available

2

Toro 221-673

Engine

$

$

Currently unavailable

3

Toro 3-6369

Fender (Incl. Ref. #4 & 42)

$

$

Not available

4

Toro 3-7258

Pad, Foot Rest

$

$

Not available

5

Toro 5-1021

NAME PLATE DECAL

$

$

Not available

6

Toro 5-1010

Shroud

$

$

Not available

7

Toro 5-1020

Decal

$

$

Not available

8

Toro 3-6039

Fender & Insulation (Incl. Ref. #10 & 20)

$

$

Not available

Toro 3-7226

Insulation

Note: Not illustrated

$

$

Not available

9

Toro 32104-77

10-16 X 3/8 THDG SCREW

$

$

Not available

10

Toro 3-7264

Pad, Foot Rest

$

$

Not available

11

Toro 32122-38

Screw

$

$

Not available

12

Toro 3-7175

Chain Guard

$

$

Not available

13

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

14

Toro 3219-2

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

15

Toro 32149-5

NUT-KEPS
(Superseded to 121-4698)

$1.99

$

Usually ships in 3-6 days

0

16

Toro 2210-184

Deflector

$

$

Not available

17

Toro 2210-173

SCREW W/ENGINE

$

$

Not available

18

Toro 40-9240

Muffler

$

$

Not available

19

Toro 8-1830

Bale Tie

$

$

Not available

20

Toro 3-7223

Pad, Foot Rest

$

$

Not available

21

Toro 32153-4

NUT-HEX, SIDE DEFORM

$0.99

$

Usually ships in 3-6 days

0

22

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

23

Toro 41-9650

Bracket, Muffler Support

$

$

Not available

24

Toro 40-8790

Exhaust Pipe Assembly (Incl. Ref. #19)

$

$

Not available

25

Toro 3274-15

SCREW-HSH

$0.99

$

Usually ships in 3-6 days

0

26

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

27

Toro 3-7188

Gasket

$

$

Not available

28

Toro 3210-3

SCREW-HH

$6.49

$

Usually ships in 3-6 days

0

29

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

30

Toro 281-1

PLUG-PIPE, SQH

$5.49

$

Usually ships in 3-6 days

0

31

Toro 3210-5

SCREW-HH

$3.99

$

In Stock, Qty 6

0

32

Toro 5-0592

Washer

$

$

Not available

33

Toro 5-1004

Pulley, Engine Reel

$

$

Not available

34

Toro 3-8448

WASHER-THRUST

$

$

Currently unavailable

35

Toro 20-9730

Guide

$

$

Not available

36

Toro 20-9710

Washer

$

$

Not available

37

Toro 237-37

BUMPER-RUBBER

$

$

Not available

38

Toro 5-1005

Deflector

$

$

Not available

39

Toro 3290-246

PAL NUT

$

$

Not available

40

Toro 3-7731

Extension Oil Fill

$

$

Not available

41

Toro 3-7196

DIPSTICK ASM R

$

$

Not available

42

Toro 5-1186

Pad Foot Rest

$

$

Not available
