031 (213-031-100) - Cub Cadet Front-Tine Tiller Engine (1993) B&S 3 HP Cylinder Ass'y & Gasket Set Parts Diagram

Front-Tine Tiller Engine

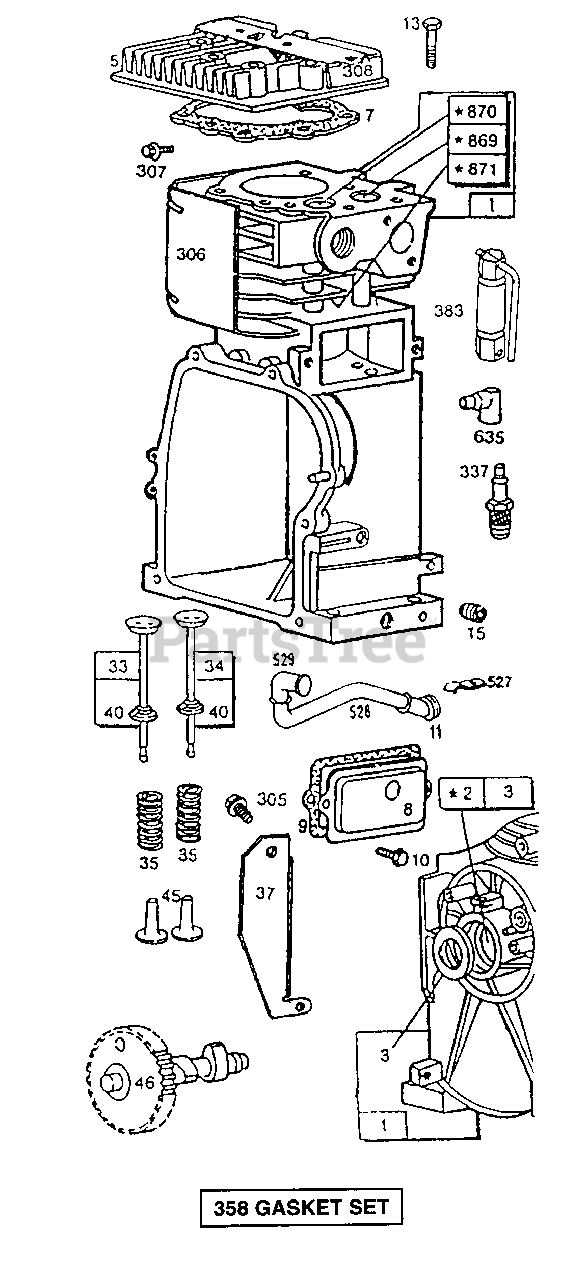

B&S 3 HP Cylinder Ass'y & Gasket Set Parts Diagram

  • Title

1

Cub Cadet BS-494549

Cylinder Assembly

$

$

Not available

2

Cub Cadet BS-293708

Bushing-Cylinder
(Superseded to BS-399269)

Note: Requires Special Tools To Install. See Repair Instruction Manual.

$21.99

$

In Stock, only 1 left!

0

3

Cub Cadet BS-299819

Seal-Oil
(Superseded to BS-299819S)

$5.49

$

In Stock, Qty 20+

0

5

Cub Cadet BS-211479

Head-Cylinder

$

$

Not available

7

Cub Cadet BS-272536

Gasket-Cylinder Head

$

$

Not available

8

Cub Cadet BS-294178

Breather-Valve Chamber
(Superseded to BS-791779)

$15.99

$

Usually ships in 2-12 days

0

9

Cub Cadet BS-27549

Gasket-Valve Cover

$

$

Not available

10

Cub Cadet BS-93394

Screw-Valve Cover Mounting
(Superseded to BS-691666)

$3.99

$

In Stock, Qty 5

0

11

Cub Cadet BS-66578

Grommet-Breather Tube
(Superseded to BS-692187)

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet BS-93111

Screw-Cylinder Head
(Superseded to BS-691640)

$3.49

$

In Stock, Qty 12

0

15

Cub Cadet BS-94387

Plug-Pipe, (1/4" Std. Square Hd.)
(Superseded to BS-691686)

Note: Plug-Oil Drain (Hex Socket Head), Part No. BS-93448

$5.49

$

In Stock, only 2 left!

0

33

Cub Cadet BS-296676

Valve-Exhaust

Note: (Grooved Stem-Includes Retainer No. BS-93312)

$23.99

$

In Stock, only 3 left!

0

34

Cub Cadet BS-296677

Valve-Intake

Note: (Grooved Stem-Includes Retainer No. BS-93312)

$24.99

$

In Stock, only 4 left!

0

35

Cub Cadet BS-260552

Spring-Valve

$5.49

$

In Stock, only 1 left!

0

37

Cub Cadet BS-224557

Guard-Flywheel

$

$

Currently unavailable

40

Cub Cadet BS-93312

Retainer-Valve Spring Used With Valves With Groove in Stem.
(Superseded to BS-692194)

$5.99

$

In Stock, Qty 11

0

45

Cub Cadet BS-230173

Tappet-Valve

$

$

Not available

46

Cub Cadet BS-493747

Gear-Cam

$

$

Not available

?257

Cub Cadet BS-93543

Screw-Fil. Hd.

$

$

Not available

305

Cub Cadet BS-93777

Screw-Sem

$

$

Currently unavailable

306

Cub Cadet BS-224555

Shield-Cylinder

$

$

Currently unavailable

307

Cub Cadet BS-93758

Screw-Cylinder Shield

$

$

Not available

308

Cub Cadet BS-224556

Cover-Cylinder Head

$

$

Not available

337

Cub Cadet 759-3338

Plug-Spark (1-7/8" High, 48 mm)

Note: (Resistor Type)

$3.49

$

In Stock, Qty 20+

0

358

Cub Cadet BS-494550

Gasket Set

$

$

Not available

383

Cub Cadet BS-89838

Wrench-Spark Plug
(Superseded to BS-89838S)

$6.49

$

In Stock, only 4 left!

0

?527

Cub Cadet BS-223786

Clamp-Breather Tube
(Superseded to BS-691741)

$4.99

$

Usually ships in 2-12 days

0

528

Cub Cadet BS-231527

Tube-Breather
(Superseded to BS-692528)

$

$

Not available

529

Cub Cadet BS-67838

Grommet-Breather Tube (90ø Angle)
(Superseded to BS-692189)

Note: Included in Gasket Set - P/N BS-494550

$4.49

$

In Stock, Qty 18

0

635

Cub Cadet BS-66538

Elbow-Spark Plug
(Superseded to BS-66538S)

$3.99

$

In Stock, Qty 13

0

869

Cub Cadet BS-211172

Seat-Intake Valve

Note: Note: For Options See Repair Manual.

$

$

Not available

870

Cub Cadet BS-211291

Seat-Exhaust Valve

Note: Note: For Options See Repair Manual.

$

$

Not available

871

Cub Cadet BS-231348

Guide-Exhaust Valve

$31.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-63709

Guide-Intake Valve.

Note: See Repair Manual.

$14.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-93312

Retainer--For Grooved Stem
(Superseded to BS-692194)

$5.99

$

In Stock, Qty 11

0

Cub Cadet BS-93448

Plug-Oil Drain (Hex Socket Head)

$

$

Currently unavailable
