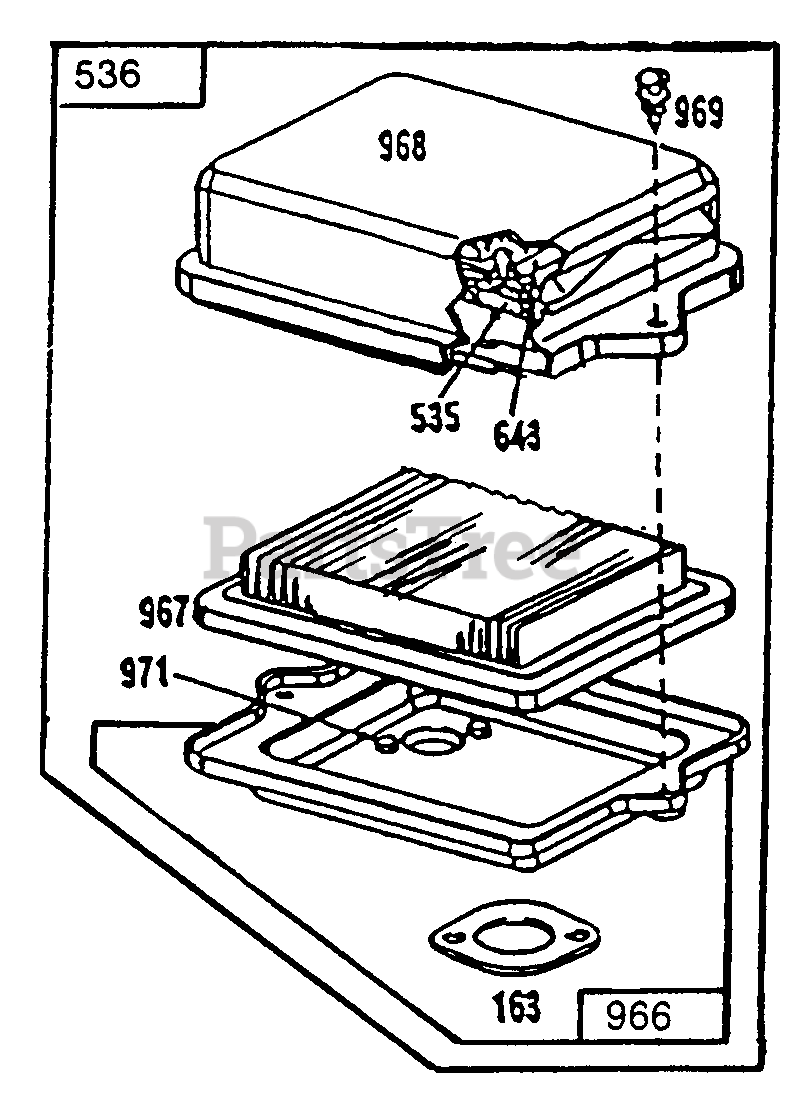

031 (213-031-100) - Cub Cadet Front-Tine Tiller Engine (1993) B&S 3 HP Air Cleaner Ass'y Parts Diagram

Front-Tine Tiller Engine

B&S 3 HP Air Cleaner Ass'y Parts Diagram

  • Title
163

Cub Cadet BS-271935

Gasket--Air Cleaner
(Superseded to BS-271935S)

$6.49

$

In Stock, Qty 13

0

535

Cub Cadet BS-491435

Element--Air Cleaner
(Superseded to BS-491435S)

$4.99

$

In Stock, Qty 10

0

536

Cub Cadet BS-494279

Cleaner--Air Ass'y.

$

$

Not available

643

Cub Cadet BS-280737

Retainer--Air Cleaner

$

$

Not available

966

Cub Cadet BS-492797

Base--Air Cleaner
(Superseded to BS-494279)

$

$

Not available

Cub Cadet BS-271935

Gasket
(Superseded to BS-271935S)

$6.49

$

In Stock, Qty 13

0

967

Cub Cadet BS-491588

Filter--Air
(Superseded to BS-491588S)

$6.49

$

In Stock, Qty 20+

0

968

Cub Cadet BS-223765

Cover--Air Cleaner
(Superseded to BS-791082)

$20.99

$

In Stock, Qty 13

0

969

Cub Cadet BS-490073

Screw--Cover Mtg.
(Superseded to BS-694515)

Note: (Includes Grommet)

$5.99

$

In Stock, Qty 8

0

971

Cub Cadet BS-94018

Screw--Air Cleaner
(Superseded to BS-690859)

$3.99

$

In Stock, Qty 8

0

Cub Cadet BS-494550

Gasket Set

$

$

Not available
