031 (212-031-100) - Cub Cadet Front-Tine Tiller Engine (1992) B&S 3 HP Rewind Starter Ass'y, Clutch and Armature Ass'y Parts Diagram

Front-Tine Tiller Engine

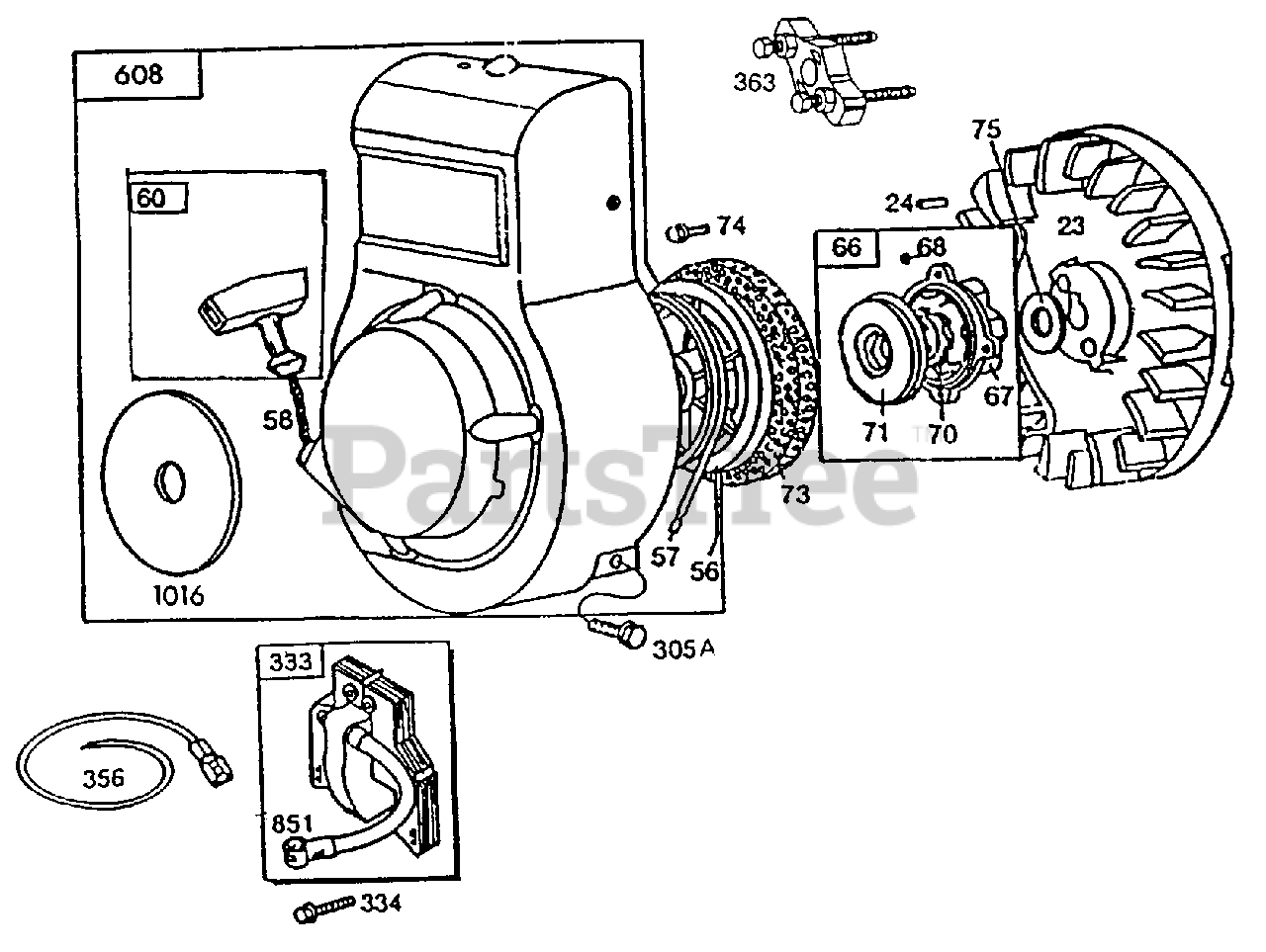

B&S 3 HP Rewind Starter Ass'y, Clutch and Armature Ass'y Parts Diagram

  • Title

23

Cub Cadet BS-296884

Flywheel--Magneto

$

$

Not available

24

Cub Cadet BS-222698

Key--Flywheel
(Superseded to BS-222698S)

$2.99

$

In Stock, Qty 20+

0

56

Cub Cadet BS-280439

Pulley--Rewind Starter
(Superseded to BS-280439S)

$12.99

$

In Stock, Qty 11

0

57

Cub Cadet BS-490179

Spring--Rewind Starter

$

$

Not available

58

Cub Cadet BS-280399

Rope--Starter Cut To Length
(Superseded to BS-280399S)

$5.99

$

In Stock, Qty 9

0

60

Cub Cadet BS-393152

Grip--Starter Rope

$4.99

$

Usually ships in 2-12 days

0

66

Cub Cadet BS-399671

Clutch Assembly--Rewind Starter

$34.99

$

In Stock, Qty 20+

0

67

Cub Cadet BS-394897

Housing--Starter Clutch

$36.99

$

In Stock, only 1 left!

0

68

Cub Cadet BS-63770

Ball--Clutch

$

$

Not available

70

Cub Cadet BS-298799

Ratchet--Rewind Starter
(Superseded to BS-691945)

$17.99

$

In Stock, only 1 left!

0

71

Cub Cadet BS-394506

Washer--Clutch Retainer (Rubber Coated)

$

$

Not available

73

Cub Cadet BS-221661

Screen--Rotating
(Superseded to BS-691725)

$

$

Not available

74

Cub Cadet BS-93758

Screw--Rotating Screen Mounting Sem

$

$

Not available

75

Cub Cadet BS-223047

Washer--Spring

$

$

Currently unavailable

305A

Cub Cadet BS-94608

Screw--Sem
(Superseded to BS-692198)

$5.99

$

In Stock, Qty 12

0

333

Cub Cadet BS-398593

Armature--Magneto
(Superseded to BS-591420)

$53.99

$

In Stock, only 1 left!

0

334

Cub Cadet BS-93381

Screw--Armature Mounting Sem

$

$

Not available

356

Cub Cadet BS-398808

Wire--Ground

$11.99

$

In Stock, only 1 left!

0

363

Cub Cadet BS-19069

Puller--Flywheel

$23.99

$

In Stock, only 1 left!

0

608

Cub Cadet BS-491728

Starter Ass'y.--Rewind (12 o'clock)

$

$

Not available

851

Cub Cadet BS-221798

Cable Terminal--Ignition
(Superseded to BS-493880S)

$3.49

$

In Stock, Qty 20+

0

1016

Cub Cadet BS-490817

Spacer--Rewind Starter

$9.49

$

In Stock, Qty 5

0
