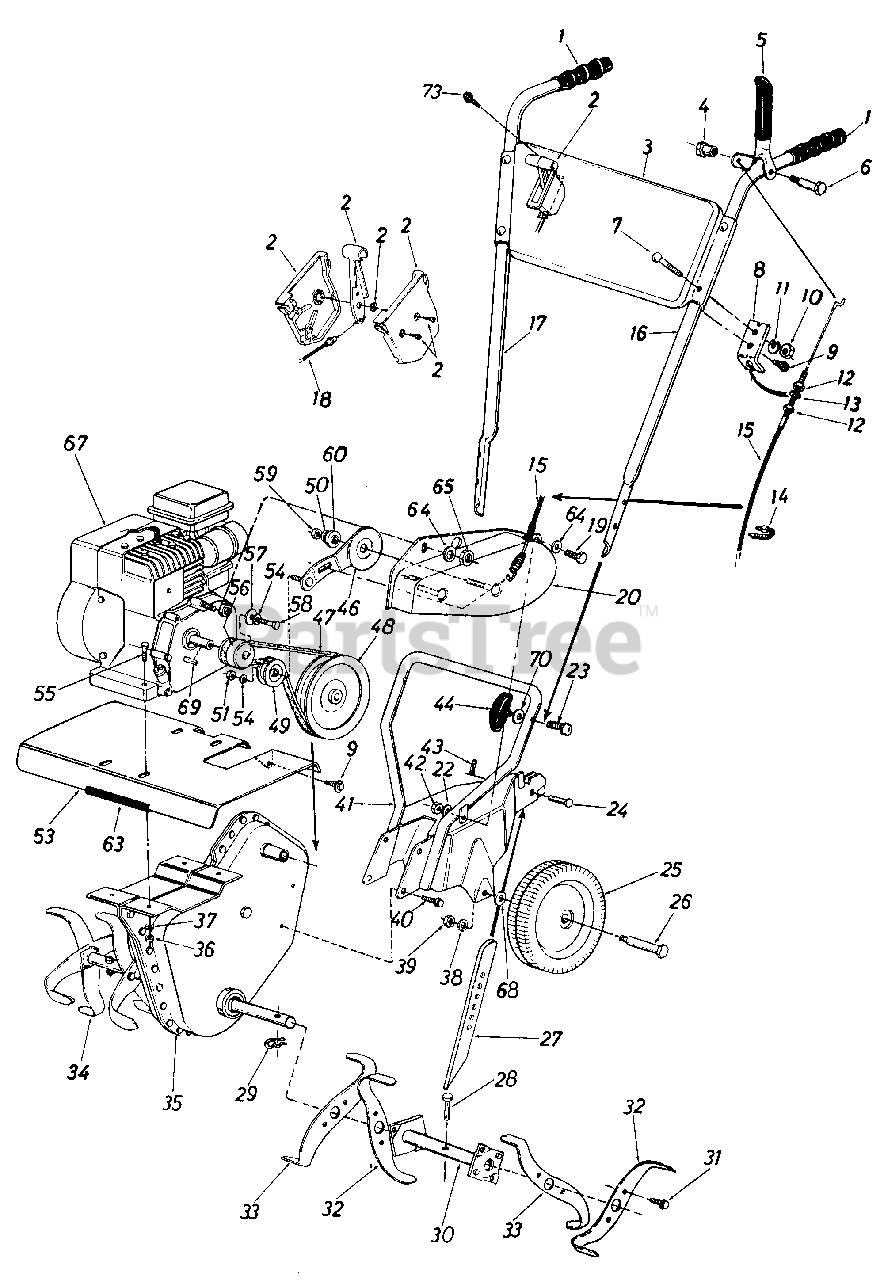

031 (210-031-100) - Cub Cadet Front-Tine Tiller (1990) Tiller Parts Diagram

Front-Tine Tiller

Tiller Parts Diagram

  • Title

1

Cub Cadet 720-0204

GRIP

$13.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 831-0796A

CONTROL-THROTTLE

$21.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 784-0036A

PANEL-HANDLE

$

$

Not available

4

Cub Cadet 738-0561

NUT-SHLD
(Superseded to 938-0561)

$9.49

$

Usually ships in 3-6 days

0

5

Cub Cadet 784-0007A

GRIP ASSY-CLUTCH-RH

$

$

Not available

6

Cub Cadet 738-0572

SCREW-SHLD

$7.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-0262

BOLT-CARRIAGE 5/16-18 X 1.50

$3.99

$

In Stock, Qty 11

0

8

Cub Cadet 15093C

BRACKET-CLUTCH

$

$

Not available

9

Cub Cadet 710-0599

SCREW-HEX WASH SF TAPP

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

12

Cub Cadet 712-0256

NUT-HEX JAM 5/16-24

$

$

Not available

13

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

14

Cub Cadet 725-0157

TIE-CABLE

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 746-0509

CABLE-CLUTCH
(Superseded to 946-0926)

$42.99

$

In Stock, only 2 left!

0

16

Cub Cadet 749-0631

HANDLE-UPPER-LH

Variations

Cub Cadet 749-0631-0637

UPPER HANDLE (LH) (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

17

Cub Cadet 749-0630

HANDLE-UPPER-RH

Variations

Cub Cadet 749-0630-0637

UPPER HANDLE (RH) - POWDER BLACK (0637)

$

$

Not available

$

$

18

Cub Cadet 746-0636

WIRE-THROTTLE
(Superseded to 946-0634)

$11.99

$

In Stock, only 1 left!

0

19

Cub Cadet 710-0252

SCREW-HEX 1/4-20 X .75
(Superseded to 710-3015)

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 784-0018

COVER-BELT

$

$

Currently unavailable

22

Cub Cadet 736-0329

LOCK WASHER 1/4 DIA
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

23

Cub Cadet 710-0405

BOLT-CARRIAGE 5/16-18 X 1.75
(Superseded to 710-1174)

$7.49

$

In Stock, Qty 20+

0

24

Cub Cadet 711-0653

PIN-CLEVIS

$3.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 734-1161A

WHEEL ASSY W/TIRE

$

$

Not available

Cub Cadet 734-0893

WHEEL ASSY W/TIRE-7 X 1.5 WAFFLE

$

$

Not available

Cub Cadet 741-0262

BEARING-FORTIFLEX

Note: (Used w/Steel Wheel)

$8.49

$

Usually ships in 3-6 days

0

26

Cub Cadet 738-0126

SCREW-SHLD .498 DIA X 1.450 LG THD
(Superseded to 738-0213)

$7.99

$

In Stock, only 2 left!

0

27

Cub Cadet 04764

BAR-DEPTH

Note: Color Code 499

$

$

Not available

28

Cub Cadet 711-0702

PIN-CLEVIS

$

$

Not available

29

Cub Cadet 714-0149B

PIN-COTTER

$4.49

$

In Stock, Qty 18

0

30

Cub Cadet 04918

ADAPTER ASSY-TINE
(Superseded to 04918-0637)

Variations

Cub Cadet 04918-0637

ADAPTER ASSY-TINE - POWDER BLACK (0637)

$

$

Not available

$

$

31

Cub Cadet 710-0599

SCREW-HEX WASH SF TAPP

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet 04923

TINE-LH
(Superseded to 04923-0637)

Variations

Cub Cadet 04923-0637

Tine, LH Powder Black - POWDER BLACK (0637)

$

$

Not available

$

$

33

Cub Cadet 04922

TINE-RH

$

$

Not available

34

Cub Cadet 04921

TINE ASSY-COMP

$

$

Not available

35

Cub Cadet 04924A

CASE ASSY-CHAIN COMP

Note: Color Code 498

$

$

Currently unavailable

36

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

37

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

38

Cub Cadet 736-0217

WASHER-HDL 3/8

$4.49

$

In Stock, Qty 8

0

39

Cub Cadet 712-0375

NUT-HEX CENTER L-3/8-16

$4.49

$

In Stock, Qty 6

0

40

Cub Cadet 710-0600

SCREW-HEX WASH SF TAPP

$3.49

$

Usually ships in 3-6 days

0

41

Cub Cadet 04762

BRACKET ASSY-SUPPORT

Note: Color Code 499

Variations

Cub Cadet 04762-0637

BRACKET ASSEMBLY-SUPPO - POWDER BLACK (0637)

$

$

Not available

$

$

42

Cub Cadet 712-0287

NUT-HEX 1/4-20
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

43

Cub Cadet 714-0104

PIN-INTERN COT-5/16 DIA

$4.49

$

In Stock, Qty 20+

0

44

Cub Cadet 09966

KNOB-HANDLE ASSY
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

46

Cub Cadet 784-0016

ARM-IDLER

$

$

Not available

47

Cub Cadet 754-0216

BELT-V 3/8 X 29
(Superseded to 954-0216)

$30.99

$

In Stock, only 1 left!

0

48

Cub Cadet 756-0287

PULLEY

$

$

Not available

49

Cub Cadet 756-0199

PULLEY-IDLER-FLAT W/FLANGES

$25.99

$

In Stock, only 1 left!

0

50

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

51

Cub Cadet 712-0116

NUT-HEX INS L-3/8-24

$4.99

$

In Stock, Qty 6

0

Cub Cadet 04765

SHIELD-TINE

Variations

Cub Cadet 04765-0498

TINE SHIELD - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 04765-0637

TINE SHIELD - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 04765-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

53

Cub Cadet 04765

SHIELD-TINE

Note: Color Code 499

Variations

Cub Cadet 04765-0498

TINE SHIELD - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 04765-0637

TINE SHIELD - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 04765-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

54

Cub Cadet 736-0169

WASHER-LOCK-3/8

$3.99

$

In Stock, Qty 20+

0

55

Cub Cadet 710-0442

SCREW-HEX 5/16-18 X 1.50
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

56

Cub Cadet 756-0286

PULLEY

$

$

Not available

57

Cub Cadet 736-0258

WASHER-FL-.385 X 1.00 X .135

$4.49

$

Usually ships in 3-6 days

0

58

Cub Cadet 710-0152

BOLT-3/8 NF X 1"GR5
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 20+

0

59

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

60

Cub Cadet 736-0289

WASHER-BUSHING
(Superseded to 936-0289)

$6.99

$

In Stock, only 1 left!

0

63

Cub Cadet 731-0511

STRIP-TRIM-12IN

$3.99

$

Usually ships in 3-6 days

0

64

Cub Cadet 736-0142

WASHER-FL-.281 ID X .50 OD X .063

$4.99

$

In Stock, Qty 20+

0

65

Cub Cadet 712-0107

NUT-HEX CENTER L-1/4-20
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

67

Note: Engine

$

$

Not available

68

Cub Cadet 736-0219

WASHER-BELL .3/8ID X 1.12OD X .030
(Superseded to 936-0219)

$4.49

$

Usually ships in 3-6 days

0

69

Cub Cadet 714-0122

KEY-SQ 3/16 X .75

$3.99

$

In Stock, Qty 20+

0

70

Cub Cadet 736-0242

WASHER-BELL .337 X .867 X .057

$4.49

$

In Stock, Qty 20+

0

73

Cub Cadet 710-0779A

SCREW-TRUSS TAP

$4.49

$

In Stock, Qty 12

0
