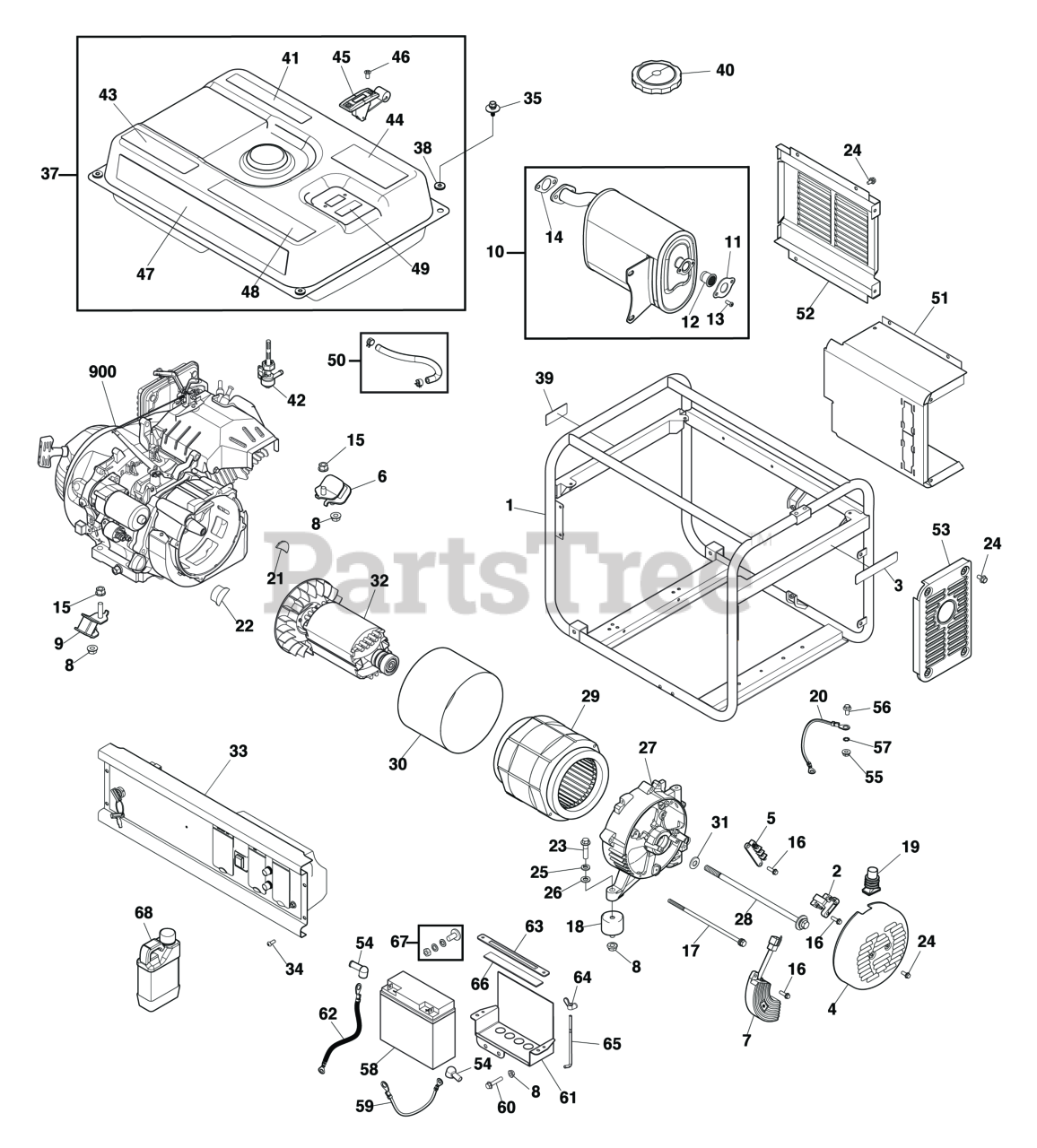

030841-01 - Briggs & Stratton 6,500 Watt Portable Generator, Electric Start Main Unit Parts Diagram

6,500 Watt Portable Generator, Electric Start

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 84003479

CRADLE

Note: (Includes 3 & 39)

$140.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 704915

BRUSH ASSY

$6.99

$

In Stock, Qty 11

0

3

Briggs & Stratton 84002468

DECAL

$9.49

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 704838

END COVER

$29.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 705783

TERMINAL BLOCK

$4.49

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 704890

MOUNT-VIBRATION

$9.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 704913

VOLTAGE REGULATOR

$54.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 67989GS

NUT, M8 Flange Serrated

$3.49

$

In Stock, Qty 9

0

9

Briggs & Stratton 704891

MOUNT-VIBRATION

$10.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 704084

ASSY-MUFFLER

$

$

Not available

11

Briggs & Stratton 704845

PLATE

$4.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 704846

SPARK ARRESTOR

$7.99

$

Usually ships in 2-12 days

0

13

* SCREW, Button Head, M5 x 12

$

$

Not available

14

Briggs & Stratton 704853

GASKET-MUFFLER

$4.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 52859GS

NUT, Lock

$2.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 207825GS

BOLT-M5-6 x 16

$4.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 707297

BOLT

$6.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 704081

MOUNT-VIBRATION

$7.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 207879GS

BOOT, Rubber

$6.99

$

In Stock, only 2 left!

0

20

Briggs & Stratton 705633

WIRE

$5.49

$

In Stock, only 1 left!

0

21

Briggs & Stratton 705772

GUARD-RUBBER

$4.49

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 705771

GUARD-RUBBER

$4.49

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 313524GS

SCREW

$2.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 207824GS

BOLT, M5 - 6 x 12

$4.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 2831983

WASHER, Lock, #8

$

$

Currently unavailable

26

Briggs & Stratton 84001078

WASHER

$3.49

$

In Stock, only 2 left!

0

27

Briggs & Stratton 704836

CARRIER-BEARING

$79.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 707296

BOLT

$7.49

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 84003462

STATOR

$504.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 707295

BAND-STATOR

$43.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 207826GS

WASHER, Senci

$4.49

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 84003463

ROTOR

$385.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton REF-80097481

Refer To: Control Panel Group

$

$

Currently unavailable

34

Briggs & Stratton 772229

SCREW

$3.49

$

In Stock, only 4 left!

0

35

Briggs & Stratton 84003614

BOLT

$

$

Currently unavailable

37

Briggs & Stratton 84006634

TANK-FUEL

$

$

Currently unavailable

38

Briggs & Stratton 704861

MOUNT-VIBRATION

$4.49

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 772236

DECAL

$9.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 319587GS

CAP-FUEL

$19.99

$

In Stock, only 1 left!

0

41

Briggs & Stratton 772237

DECAL

$8.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 209417GS

VALVE, Fuel

$8.99

$

In Stock, Qty 20+

0

43

Briggs & Stratton 84001093

DECAL

$9.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 84001068

DECAL

$10.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 704870

GAUGE-FUEL

$

$

Currently unavailable

46

Briggs & Stratton 704866

SCREW

$

$

Currently unavailable

47

Briggs & Stratton 84006639

DECAL

$

$

Currently unavailable

48

Briggs & Stratton 84003476

DECAL

$14.99

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 703264

DECAL

$16.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 791745

LINE, Fuel

Note: (Cut to Fit)

$10.99

$

In Stock, Qty 20+

0

51

Briggs & Stratton 704041

COVER-BACK

$54.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 705775

COVER-SIDE

$21.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 705776

COVER-FRONT

$21.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 704050

BOOT-CABLE

$4.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 52857GS

NUT-M6 FLANGE

$3.49

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 706152

SCREW, M6 x 12

$4.49

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 26850GS

WASHER, Ext. M6 - 1/4" Shakeproof

$2.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 316345GS

BATTERY

$246.99

$

In Stock, only 1 left!

0

59

Briggs & Stratton 704024

WIRE

$7.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 84003626

BOLT-M8 x 40

$

$

Currently unavailable

61

Briggs & Stratton 704070

TRAY-BATTERY

$37.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 704020

WIRE

$7.49

$

Usually ships in 2-12 days

0

63

Briggs & Stratton 704019

BRACKET

$7.49

$

Usually ships in 2-12 days

0

64

Briggs & Stratton 87680GS

NUT, M6 - 1.0 Wing

$7.49

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 704083

J-BOLT

$6.49

$

Usually ships in 2-12 days

0

66

Briggs & Stratton 704018

INSULATION

$125.99

$

Usually ships in 2-12 days

0

67

Briggs & Stratton 315546GS

KIT, Hardware, Battery Terminal

$8.99

$

In Stock, only 1 left!

0

68

Briggs & Stratton 100028

OIL-4 CYCLE30W 48OZ

$18.99

$

In Stock, Qty 9

0

900

Briggs & Stratton 24G035-0010-G1

Engine

Note: *See Footnote

$

$

Currently unavailable
