030805-00 - Briggs & Stratton 4,500 Watt Portable Generator, Inverter, CSA Compliant Main Unit P1 Parts Diagram

4,500 Watt Portable Generator, Inverter, CSA Compliant

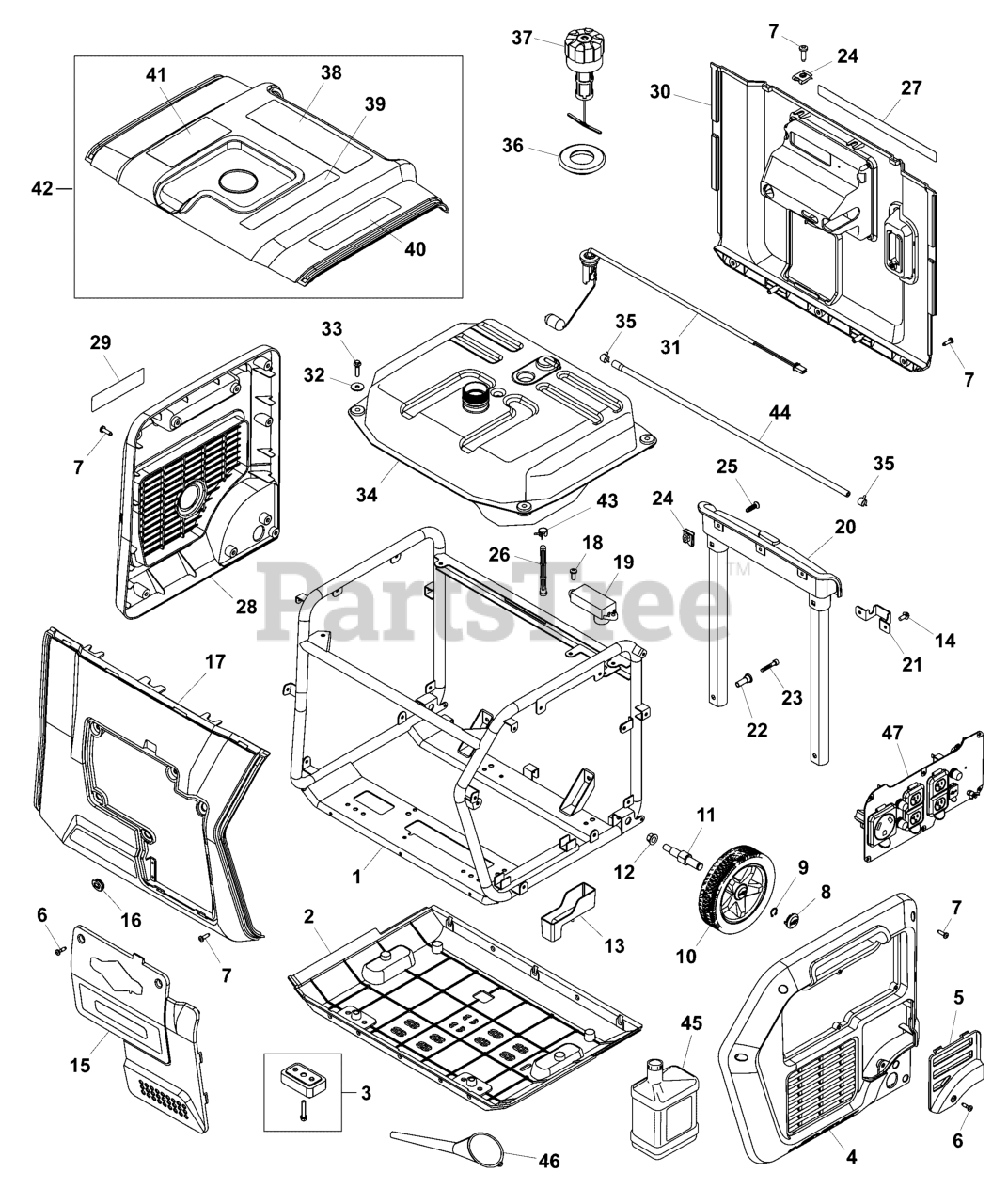

Main Unit P1 Parts Diagram

  • Title

1

Briggs & Stratton 84005416

CRADLE

$185.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 84002938

PANEL-BOTTOM

$98.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 84002939

MOUNT-VIBRATION

$9.49

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 84002911

PANEL-SIDE

$102.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 84002974

PANEL-BATTERY

$6.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 84002976

SCREW

$3.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 84002910

SCREW

$3.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 706065

HUBCAP

$5.49

$

In Stock, only 3 left!

0

9

Briggs & Stratton 771593

E-RING

$3.99

$

In Stock, only 3 left!

0

10

Briggs & Stratton 319940GS

WHEEL

Note: (Includes Item 8)

$50.99

$

In Stock, only 2 left!

0

11

Briggs & Stratton 84002909

AXLE

$13.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 709938

NUT-M10 FLANGE LOCK

$6.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 84002954

TRAP-DRAIN

$7.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 706865

SCREW, M6 x 18
(Superseded to 807084)

$3.49

$

In Stock, only 2 left!

0

15

Briggs & Stratton 84002912

PANEL-ACCESS

$57.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 84002917

GROMMET

$3.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 84002916

PANEL-BACK

$102.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 91526GS

MACHINE SCREW, Phllps Pn Hd

$3.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 84002951

CONTROLLER-IGNITION

$43.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 84002960

ASSY-HANDLE

$225.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 84002968

BRACKET

$6.49

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 84002969

BUSHING

$6.49

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 191364GS

SCREW

$

$

Currently unavailable

24

Briggs & Stratton 84002982

NUT-SPECIAL

$3.49

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 84002961

SCREW

$2.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 707168

FILTER-FUEL TANK

$4.49

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 84005327

DECAL

$

$

Currently unavailable

28

Briggs & Stratton 84005417

PANEL-MUFFLER

Note: (Includes Item 26 & 31)

$

$

Currently unavailable

29

Briggs & Stratton 771821

DECAL

$4.49

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 84005418

PANEL-FRONT

Note: (Includes Item 27)

$48.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 84002946

GAUGE-FUEL

$31.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 316506GS

WASHER-FLAT

$

$

Currently unavailable

33

Briggs & Stratton 706866

SCREW
(Superseded to 590644)

$3.99

$

In Stock, only 2 left!

0

34

Briggs & Stratton 84002947

TANK-FUEL

Note: (Includes Item 26 & 34)

$239.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 48031GGS

Clamp, Hose band

$3.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 84002943

GROMMET-FUEL

$6.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 84002942

CAP-FUEL

$24.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 84005330

DECAL

$

$

Currently unavailable

39

Briggs & Stratton 84005329

DECAL

$

$

Currently unavailable

40

Briggs & Stratton 84005328

DECAL

$

$

Currently unavailable

41

Briggs & Stratton 84003222

DECAL

$8.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 84005419

PANEL-TOP

$

$

Currently unavailable

43

Briggs & Stratton 84002949

CLAMP

$3.49

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 84002948

HOSE, VAPOR

$11.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 100005

OIL-4 CYCLE 30W 18OZ.

$8.99

$

In Stock, Qty 20+

0

46

Briggs & Stratton 706357

FUNNEL

$32.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 84005561

ASSY-CONTROL PANEL

$44.99

$

Usually ships in 2-12 days

0
