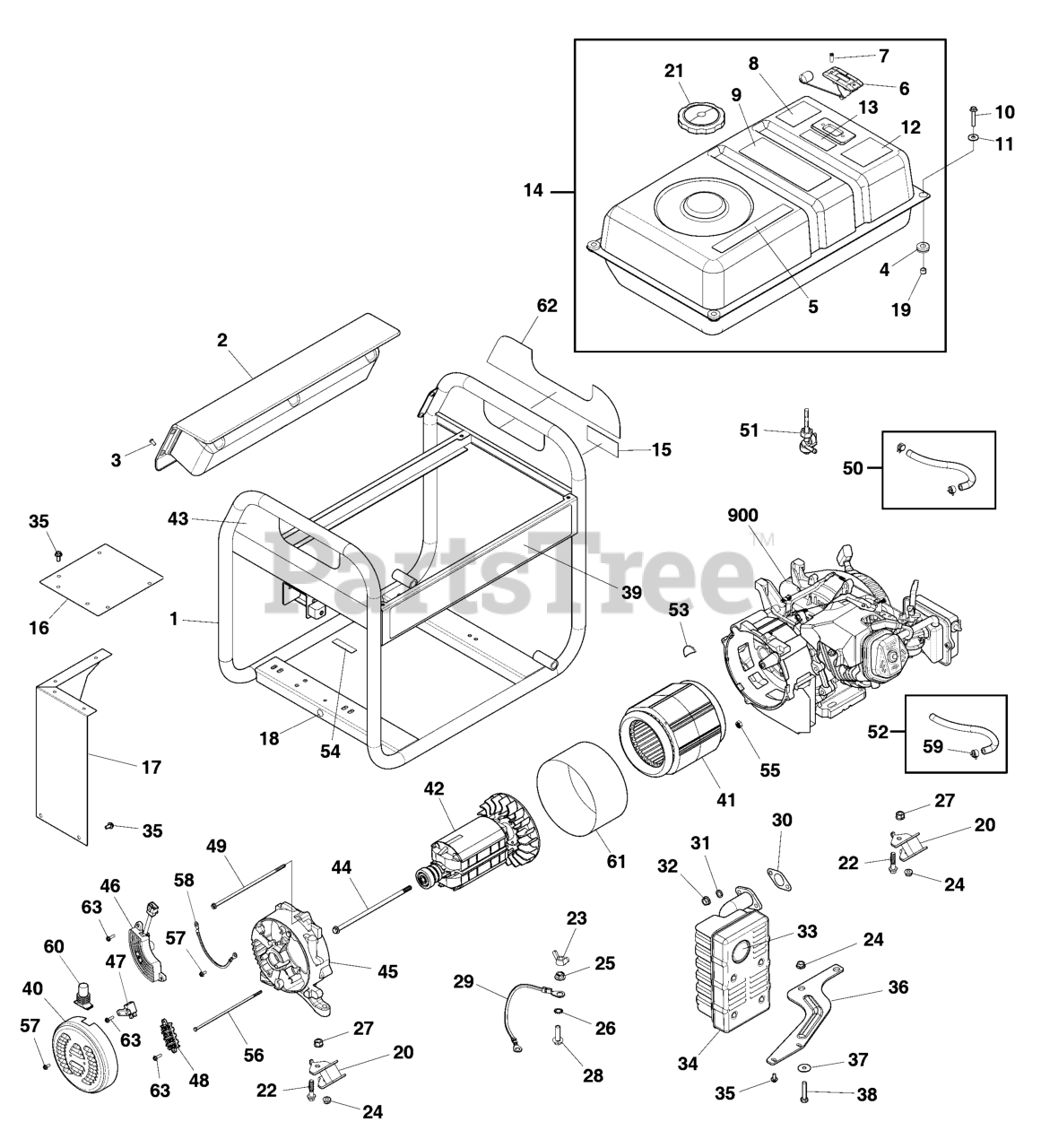

030798-00 - Briggs & Stratton 6,250 Watt Portable Generator Main Unit Parts Diagram

6,250 Watt Portable Generator

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 84002215

CRADLE

Note: (Includes item 15, 18 & 39)

$207.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 772230

PANEL-CONTROL

$537.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 772229

SCREW

$3.49

$

In Stock, only 4 left!

0

4

Briggs & Stratton 189134GS

GROMMET, Rubber

$4.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 772237

DECAL

$8.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 704183

GAUGE-FUEL

$17.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 314440GS

SCREW

$4.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 772233

DECAL

$9.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 772234

DECAL

$10.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 703805

SCREW

$10.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 312005GS

WASHER

$3.99

$

In Stock, only 3 left!

0

12

Briggs & Stratton 202997GS

DECAL, Warning, CO

$13.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 703264

DECAL

$16.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 772227

TANK-FUEL

$431.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 772236

DECAL

$9.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 319456GS

HEATSHIELD

$22.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 319455GS

HEATSHIELD

$90.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 704331

DECAL

$10.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 189137GS

SPACER

$4.49

$

In Stock, only 4 left!

0

20

Briggs & Stratton 708877

MOUNT-VIBRATION

$13.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 319587GS

CAP-FUEL

$19.99

$

In Stock, only 1 left!

0

22

Briggs & Stratton 709939

BOLT

$3.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 87680GS

NUT, M6 - 1.0 Wing

$7.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 67989GS

NUT, M8 Flange Serrated

$3.49

$

In Stock, Qty 9

0

25

Briggs & Stratton 52857GS

NUT-M6 FLANGE

$3.49

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 26850GS

WASHER, Ext. M6 - 1/4" Shakeproof

$2.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 709938

NUT-M10 FLANGE LOCK

$6.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 709934

BOLT

$9.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 706165

WIRE

$8.49

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 704853

GASKET-MUFFLER

$4.49

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 703454

LOCKWASHER, Spring, 3/8

$3.49

$

In Stock, Qty 17

0

32

Briggs & Stratton 45771GS

NUT, M8 - 1.25

$6.49

$

In Stock, only 2 left!

0

33

Briggs & Stratton 83083GS

SCREEN, Spark Arrest

$9.49

$

In Stock, only 2 left!

0

34

Briggs & Stratton 192569GS

MUFFLER

$179.99

$

In Stock, only 1 left!

0

35

Briggs & Stratton 706152

SCREW, M6 x 12

$4.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 319457GS

BRACKET, Muffler

$34.99

$

In Stock, only 1 left!

0

37

Briggs & Stratton B2495GS

WSHR, 25.4 X 8.45 X 1.4

$2.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 706355

SCREW

$5.49

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 772231

DECAL

$14.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 312870GS

COVER, Rear Bearing

$13.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 84002216

STATOR

$282.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 84002220

ROTOR

$268.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 772232

DECAL

$13.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 84002232

BOLT

$10.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 312866GS

SUPPORT, Bearing

$83.99

$

In Stock, only 3 left!

0

46

Briggs & Stratton 312871GS

REGULATOR-VOLTAGE

$65.99

$

In Stock, only 1 left!

0

47

Briggs & Stratton 704915

BRUSH ASSY

$6.99

$

In Stock, Qty 11

0

48

Briggs & Stratton 705783

TERMINAL BLOCK

$4.49

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 84002219

BOLT

$6.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 791745

LINE, Fuel

$10.99

$

In Stock, Qty 20+

0

51

Briggs & Stratton 209417GS

VALVE, Fuel

$8.99

$

In Stock, Qty 20+

0

52

Briggs & Stratton 315017GS

HOSE, Vapor (cut to fit)

$28.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 705771

GUARD-RUBBER

$4.49

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 706535

PAD-RUBBER

$4.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 709931

NUT

$3.49

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 84002218

BOLT

$11.99

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 709935

SCREW

$3.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 706150

WIRE

$6.99

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 314955GS

CLAMP

$4.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 207879GS

BOOT, Rubber

$6.99

$

In Stock, only 2 left!

0

61

Briggs & Stratton 84002217

BAND

$

$

Currently unavailable

62

Briggs & Stratton 772228

DECAL

$13.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton 25G032-0001-G1

*Engine

Note: *(Refer to Note:)

$

$

Currently unavailable

--

Briggs & Stratton 706983

CORDSET

Note: (Not Illustrated)

$

$

Currently unavailable
