030758-01 - Briggs & Stratton 2,400 Watt Portable Generator, Inverter, CARB Main Unit P1 Parts Diagram

2,400 Watt Portable Generator, Inverter, CARB

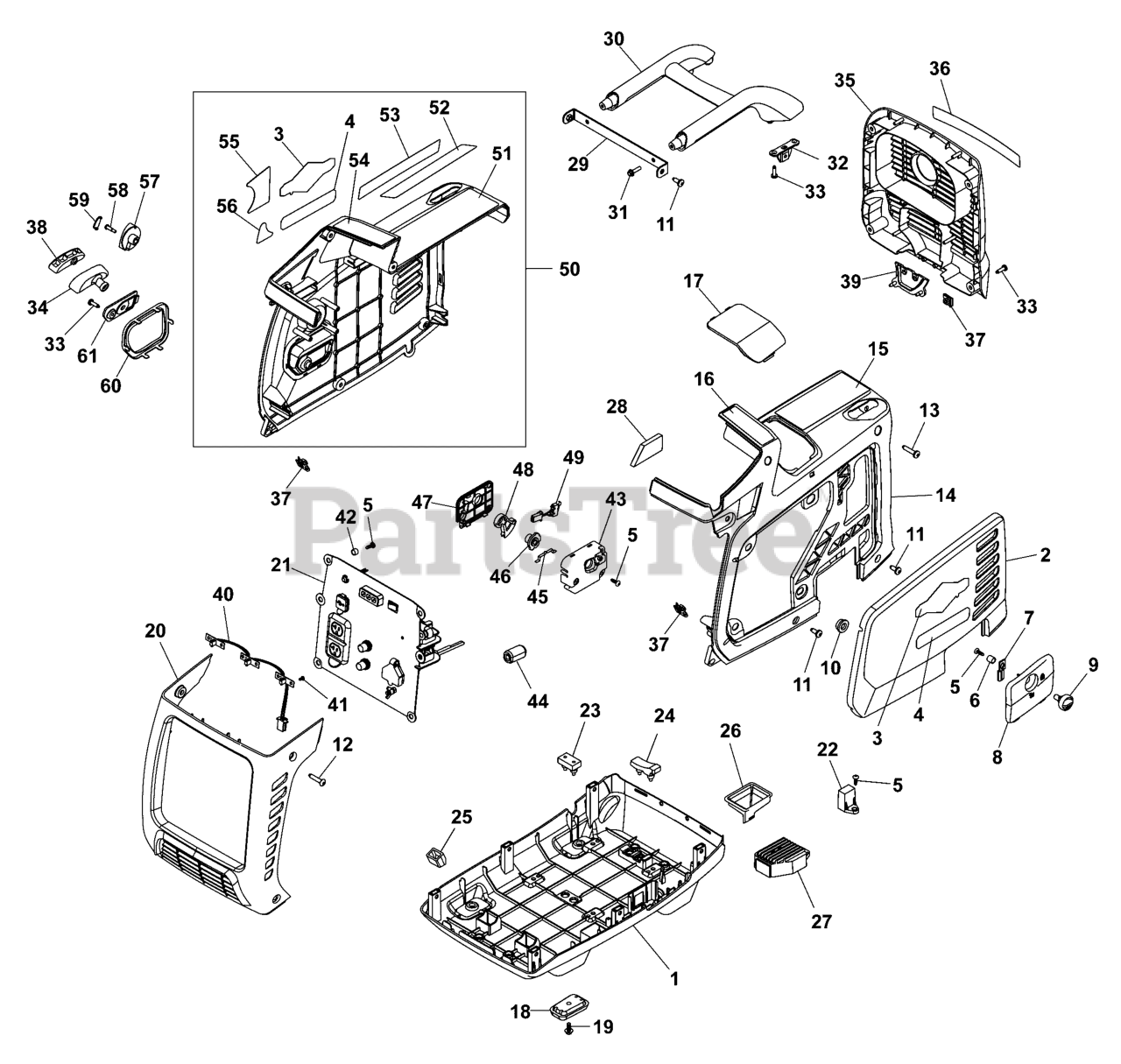

Main Unit P1 Parts Diagram

  • Title

1

Briggs & Stratton 84004872

COVER-BASE

$127.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 84004977

PANEL-SIDE

Note: (Includes Items 3 & 4)

$33.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 84004981

DECAL

$

$

Currently unavailable

4

Briggs & Stratton 84004982

DECAL

$

$

Currently unavailable

5

Briggs & Stratton 84002962

SCREW

$3.49

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 84002927

SLEEVE

$3.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 84002928

LATCH-HOOK

$4.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 84004870

DOOR-ACESS

$5.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 84004957

KNOB

$2.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 84004959

GROMMET

$2.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 84005245

SCREW

$2.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 84005247

SCREW

$2.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 84005246

SCREW

$2.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 84004988

PANEL-SIDE

Note: (Includes Items 15 & 16)

$115.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 84001068

DECAL

$10.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 84004992

DECAL

$

$

Currently unavailable

17

Briggs & Stratton 84004869

DOOR-ACCESS

$5.49

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 84004949

MOUNT-VIBRATION

$7.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 706865

SCREW, M6 x 18

$4.49

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 84004971

PANEL-FRONT

$53.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 84005966

ASSY-CONTROL PANEL

$294.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 84005262

RECTIFIER

$25.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 84005257

SHOCK-PAD

$3.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 84005255

SHOCK- PAD

$3.49

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 84004961

MOUNT-RUBBER

$2.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 84004884

TRAP-DRAIN

$6.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 84004964

RECTIFIER

$27.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 84004968

FOAM

$2.49

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 84004956

BRACKET

$11.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 84004970

HANDLE

$41.99

$

Usually ships in 2-12 days

0

31

* BOLT, M5 x 20

$

$

Not available

32

Briggs & Stratton 84004965

LINK

$5.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 84002910

SCREW

$3.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 84002971

INSERT-GRIP

$6.49

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 84004983

COVER-EXHAUST

Note: (Includes Item 36)

$49.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 84005013

DECAL

$

$

Currently unavailable

37

Briggs & Stratton 84002982

NUT-SPECIAL

$3.49

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 311414GS

INSERT, Grip

$4.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 84004950

BRACKET-SEALING

$3.49

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 84004871

LAMP-LED

$21.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 197958GS

SCREW, Tapping, 3 x 6

$3.49

$

In Stock, only 3 left!

0

42

Briggs & Stratton 84005263

SPACER

$2.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 84004882

COVER

$3.49

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 84005258

FERRITE

$4.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 84004881

SPRING

$2.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 84004880

WHEEL-FUEL SELECTOR

$2.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 84004878

COVER

$2.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 84004883

ROCKER ARM-FUEL SELECTOR

$2.49

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 84004879

SWITCH

$6.49

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 84004986

COVER-SIDE

$95.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 84001051

DECAL

$12.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 84001093

DECAL

$9.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 84004991

DECAL

$

$

Currently unavailable

54

Briggs & Stratton 84004996

DECAL

$

$

Currently unavailable

55

Briggs & Stratton 84005014

DECAL

$

$

Currently unavailable

56

Briggs & Stratton 84005252

DECAL

$

$

Currently unavailable

57

Briggs & Stratton 84004863

KNOB

$2.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 84002926

SCREW

$3.49

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 311377GS

COVER, Knob

$5.49

$

In Stock, only 1 left!

0

60

Briggs & Stratton 84004877

COVER-ROPE RECOIL

$3.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 84004875

PANEL-RECOIL

$16.99

$

Usually ships in 2-12 days

0
