030758-01 - Briggs & Stratton 2,400 Watt Portable Generator, Inverter, CARB Control Panel Parts Diagram

2,400 Watt Portable Generator, Inverter, CARB

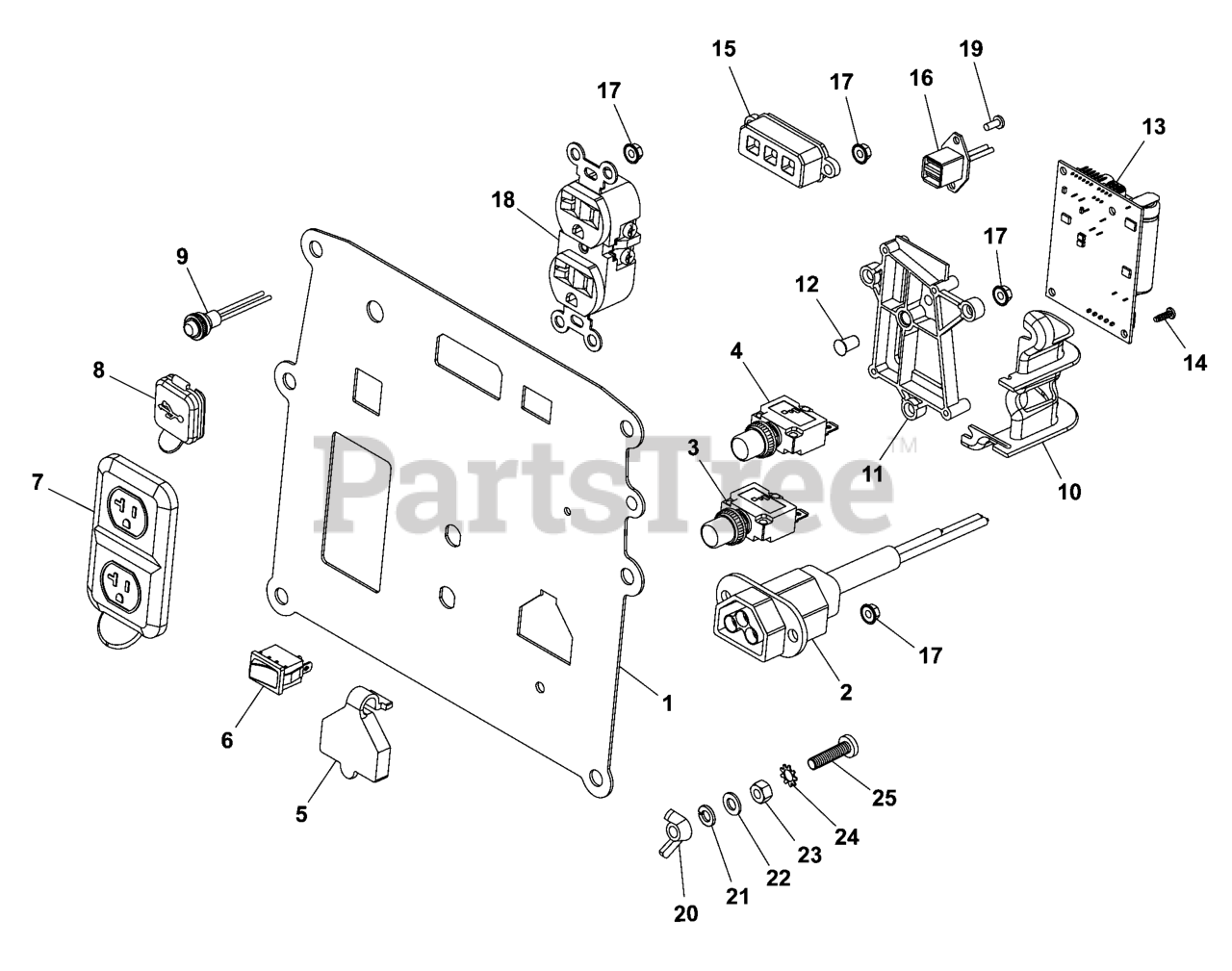

Control Panel Parts Diagram

  • Title

1

Briggs & Stratton 84005237

PANEL-CONTROL

$45.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 705488

PORT-PARALLEL

$46.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 84005051

BREAKER-CIRCUIT

$14.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 84005045

BREAKER-CIRCUIT

$17.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 705478

COVER-PORT

$8.99

$

In Stock, only 1 left!

0

6

Briggs & Stratton 311442GS

SWITCH

$24.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 84005030

COVER-RUBBER

$4.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 84005027

COVER-USB

$3.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 319463GS

BUTTON-SELECT

$37.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 84005025

SHIELD

$3.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 772213

BRACKET-MODULE

$3.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 772217

LIGHT-PIPE

$3.49

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 84004007

MODULE-CO

$128.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 84001081

SCREW

$1.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 84005026

LED- INDICATOR

$17.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 84003013

PORT-USB

$10.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 795016

NUT

$3.49

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 68759GS

OUTLET, 120V, 20Amp, Duplex

$24.99

$

In Stock, only 4 left!

0

19

Briggs & Stratton 75475GS

SCREW

$3.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 84002979

WING NUT

$2.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 84003036

WASHER-LOCK

$2.49

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 84003037

WASHER-FLAT

$2.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 84003038

NUT

$2.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 84003039

WASHER-SERRATED

$2.49

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 84003035

SCREW

$2.99

$

Usually ships in 2-12 days

0
