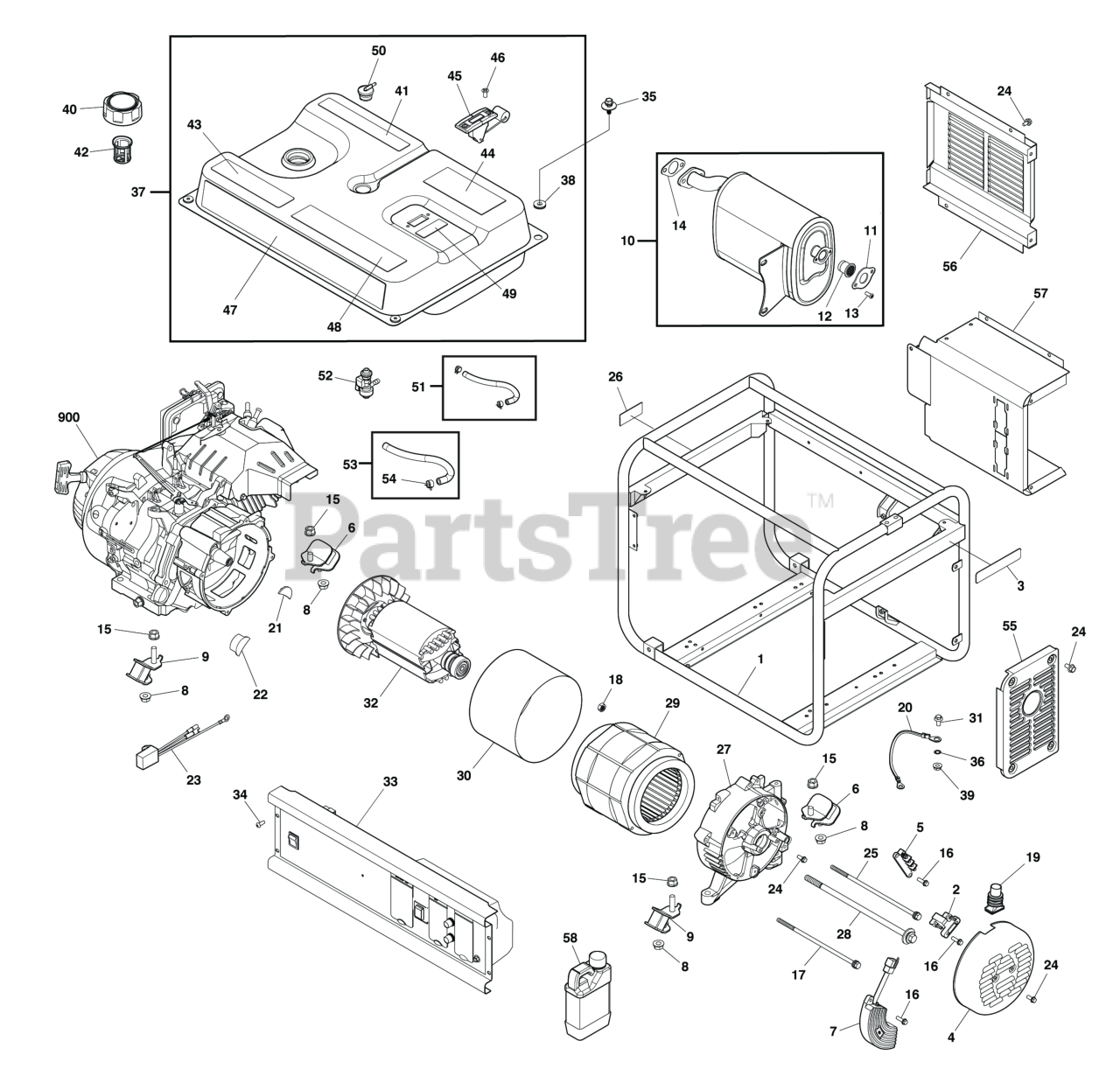

030756-00 - PowerBoss 5,500 Watt Portable Generator Main Unit Parts Diagram

5,500 Watt Portable Generator

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 84003515

CRADLE

Note: (Includes Items 3 & 26

$139.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 704915

BRUSH ASSY

$6.99

$

In Stock, Qty 11

0

3

Briggs & Stratton 84002468

DECAL

$9.49

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 704838

END COVER

$29.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 705783

TERMINAL BLOCK

$4.49

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 704890

MOUNT-VIBRATION

$9.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 704913

VOLTAGE REGULATOR

$54.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 67989GS

NUT, M8 Flange Serrated

$3.49

$

In Stock, Qty 5

0

9

Briggs & Stratton 704891

MOUNT-VIBRATION

$10.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 704842

ASSY-MUFFLER

$164.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 704845

PLATE

$4.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 704846

SPARK ARRESTOR

$7.99

$

Usually ships in 2-12 days

0

13

* SCREW, Button Head, M5 x 12

$

$

Not available

14

Briggs & Stratton 704853

GASKET-MUFFLER

$4.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 52859GS

NUT, Lock

$2.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 84001685

BOLT

$2.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 707297

BOLT

$6.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 709931

NUT

$3.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 207879GS

BOOT, Rubber

$6.99

$

In Stock, only 2 left!

0

20

Briggs & Stratton 705633

WIRE

$5.49

$

In Stock, only 1 left!

0

21

Briggs & Stratton 705772

GUARD-RUBBER

$4.49

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 705771

GUARD-RUBBER

$4.49

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 84003180

MODULE-SNUBBER

$14.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 709935

SCREW

$3.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 707298

BOLT

$7.49

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 84003488

DECAL

$7.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 704836

CARRIER-BEARING

$79.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 707296

BOLT

$7.49

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 707429

STATOR

$496.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 707295

BAND-STATOR

$43.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 706152

SCREW, M6 x 12

$4.49

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 707432

ROTOR

$302.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton REF-80082673

Refer to: Control Panel Group

$

$

Currently unavailable

34

Briggs & Stratton 772229

SCREW

$3.49

$

In Stock, only 4 left!

0

35

Briggs & Stratton 84003614

BOLT

$

$

Currently unavailable

36

Briggs & Stratton 26850GS

WASHER, Ext. M6 - 1/4" Shakeproof

$2.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 84003516

TANK-FUEL

$192.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 704861

MOUNT-VIBRATION

$4.49

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 52857GS

NUT-M6 FLANGE

$3.49

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 704865

CAP-FUEL

$21.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 772237

DECAL

$8.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 704863

FILTER-FUEL

$4.49

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 84001093

DECAL

$9.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 84001068

DECAL

$10.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 704870

GAUGE-FUEL

$

$

Currently unavailable

46

Briggs & Stratton 704866

SCREW

$

$

Currently unavailable

47

Briggs & Stratton 84003490

DECAL

$17.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 84003476

DECAL

$14.99

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 703264

DECAL

$16.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 704863

FILTER-FUEL

$4.49

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 791745

LINE, Fuel

Note: (Cut To Fit)

$10.99

$

In Stock, Qty 20+

0

52

Briggs & Stratton 310574GS

KIT, Fuel Valve

$10.99

$

In Stock, Qty 20+

0

53

Briggs & Stratton 315017GS

HOSE, Vapor (cut to fit)

Note: (Cut To Fit)

$28.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 314955GS

CLAMP

$4.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 705776

COVER-FRONT

$21.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 705775

COVER-SIDE

$21.99

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 705777

COVER-BACK

$42.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 100028

OIL-4 CYCLE30W 48OZ

$18.99

$

In Stock, Qty 9

0

900

Briggs & Stratton 24G032-0011-G1

Engine

Note: (Refer to Note:)

$796.99

$

Usually ships in 2-12 days

0
