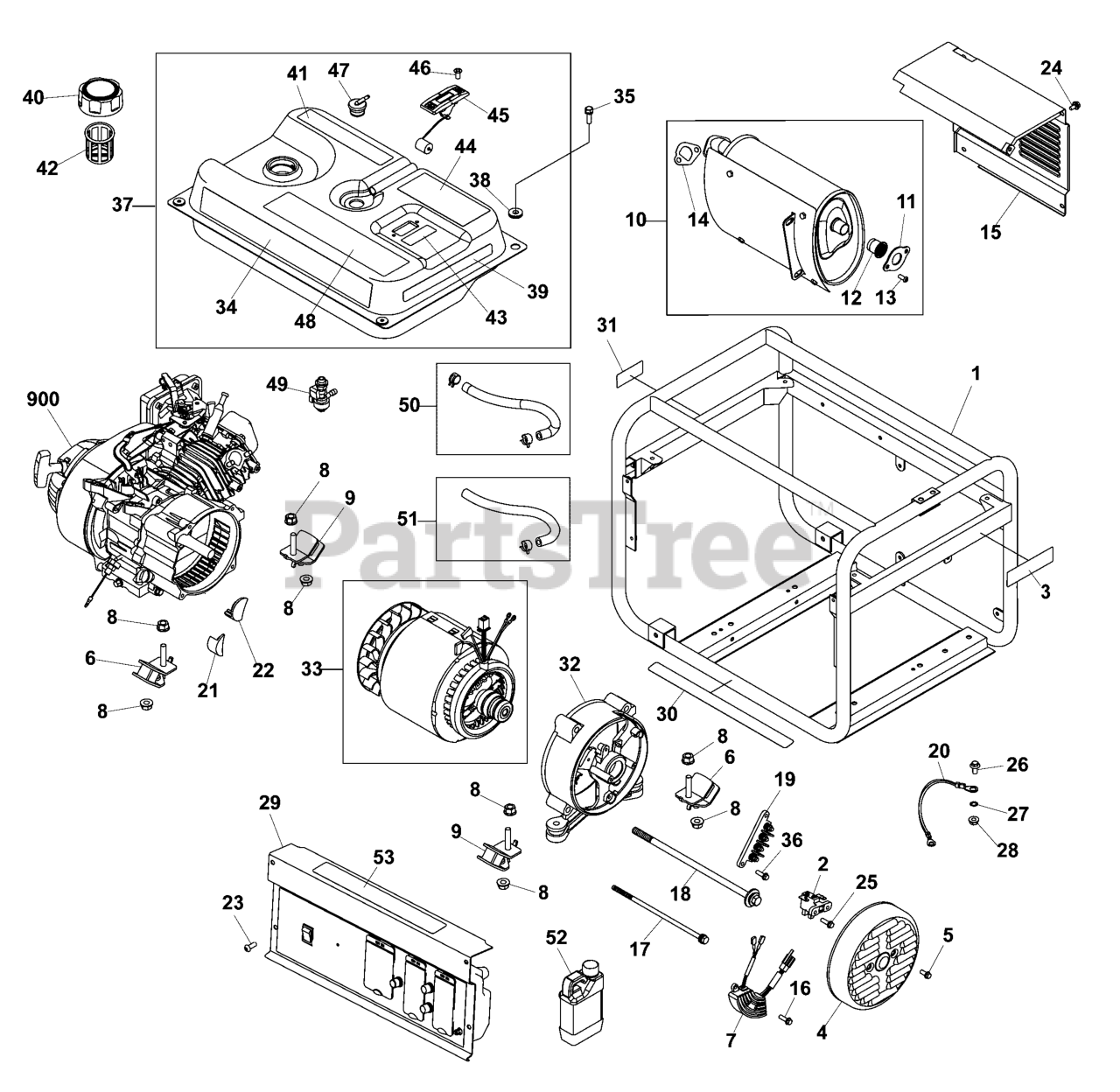

030755-02 - PowerBoss 3,500 Watt Portable Generator Main Unit Parts Diagram

3,500 Watt Portable Generator

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 84003559

CRADLE

Note: (Includes 3, 30 & 31)

$122.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 704914

BRUSH ASSY

$7.49

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 84002468

DECAL

$9.49

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 704837

END COVER

$13.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 709935

SCREW

$3.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 704888

MOUNT-VIBRATION

$9.99

$

In Stock, Qty 5

0

7

Briggs & Stratton 705692

VOLTAGE REGULATOR

$50.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 67989GS

NUT, M8 Flange Serrated

$3.49

$

In Stock, Qty 9

0

9

Briggs & Stratton 704889

MOUNT-VIBRATION

$10.99

$

In Stock, Qty 6

0

10

Briggs & Stratton 704841

ASSY-MUFFLER

$108.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 704844

PLATE

$4.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 704846

SPARK ARRESTOR

$7.99

$

Usually ships in 2-12 days

0

13

SCREW, M5 x 12

$

$

Not available

14

Briggs & Stratton 704852

GASKET-MUFFLER

$4.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 705774

COVER-MUFFLER

$45.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 84001685

BOLT

$2.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 84003721

BOLT

$9.49

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 84003720

BOLT-ROTOR

$10.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 705783

TERMINAL BLOCK

$4.49

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 705633

WIRE

$5.49

$

In Stock, only 1 left!

0

21

Briggs & Stratton 705770

GUARD-RUBBER

$4.49

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 705769

GUARD-RUBBER

$3.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 772229

SCREW

$3.49

$

In Stock, only 4 left!

0

24

BOLT, M6 x 12

$

$

Not available

25

Briggs & Stratton 84003722

BOLT

$4.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 706152

SCREW, M6 x 12

$4.49

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 26850GS

WASHER, Ext. M6 - 1/4" Shakeproof

$2.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 52857GS

NUT-M6 FLANGE

$3.49

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 84005964

ASSY-CONTROL PANEL

Note: (Includes Item 53)

$

$

Currently unavailable

30

Briggs & Stratton 84003489

DECAL

$10.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 84003488

DECAL

$7.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 704969

CARRIER-BEARING

$59.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 704833

ALTERNATOR

$469.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 84003558

DECAL

$18.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 84003614

BOLT

$

$

Currently unavailable

36

Briggs & Stratton 84003723

BOLT

$4.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 84003560

TANK-FUEL

$107.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 704861

MOUNT-VIBRATION

$4.49

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 84003487

DECAL

$11.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 704865

CAP-FUEL

$21.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 772237

DECAL

$8.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 704863

FILTER-FUEL

$4.49

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 703264

DECAL

$16.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 84001068

DECAL

$10.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 704869

GAUGE-FUEL

$8.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 704866

SCREW

$

$

Currently unavailable

47

Briggs & Stratton 704916

VALVE

$13.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 84003553

DECAL

$13.99

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 310574GS

KIT, Fuel Valve

$10.99

$

In Stock, Qty 20+

0

50

Briggs & Stratton 791745

LINE, Fuel

$10.99

$

In Stock, Qty 20+

0

51

Briggs & Stratton 315017GS

HOSE, Vapor (cut to fit)

$28.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 100028

OIL-4 CYCLE30W 48OZ

$18.99

$

In Stock, Qty 9

0

53

Briggs & Stratton 84003554

DECAL

$6.49

$

Usually ships in 2-12 days

0

900

Briggs & Stratton 12G032-0010-G1

ENGINE

$

$

Currently unavailable
