030750-02 - Briggs & Stratton Elite 8,000 Watt Portable Generator, CSA Compliant, Canada Control Panel Parts Diagram

Elite 8,000 Watt Portable Generator, CSA Compliant, Canada

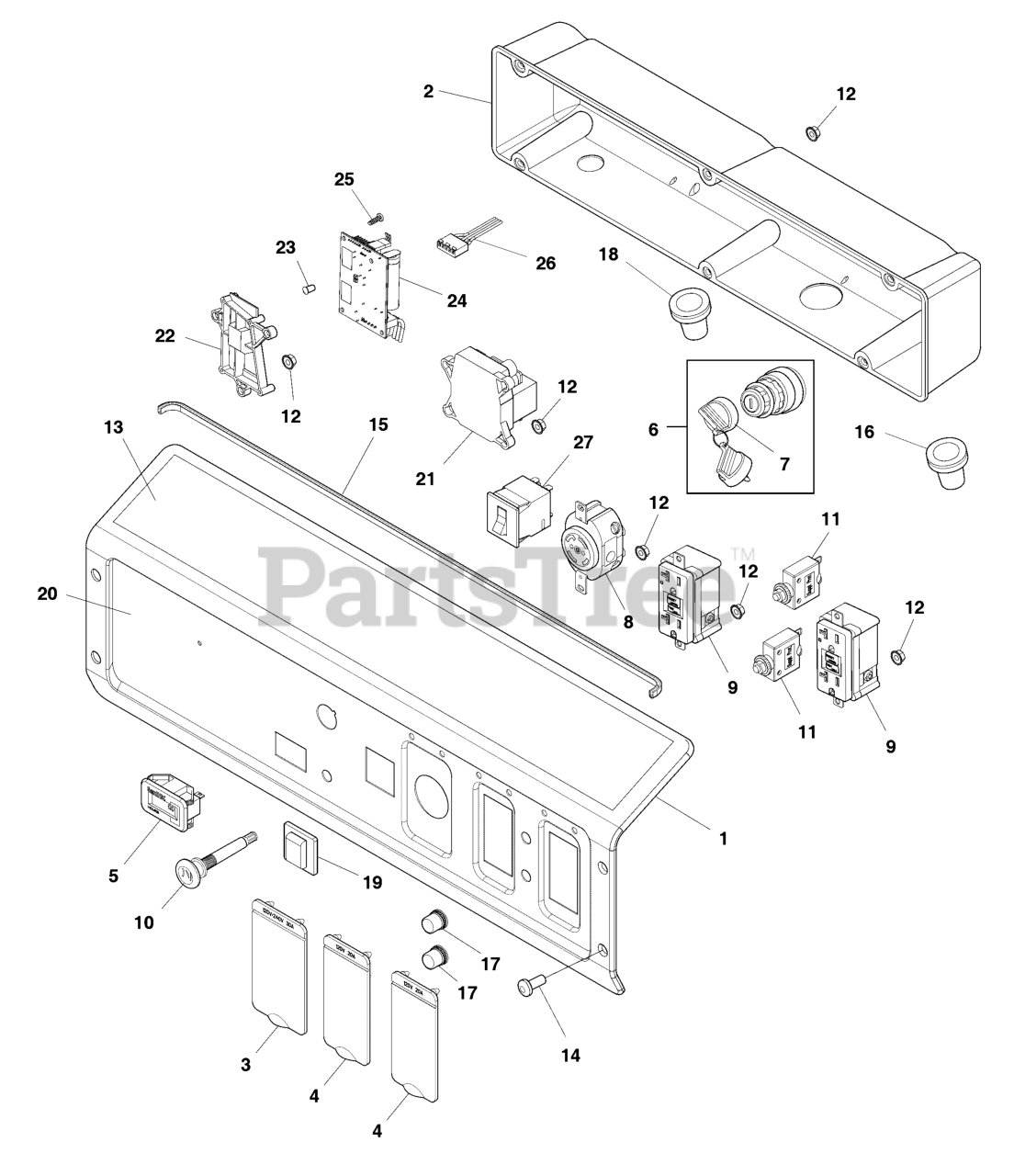

Control Panel Parts Diagram

  • Title

1

Briggs & Stratton 84002431

PANEL-CONTROL

$70.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 84002428

BOX- CONTROL PANEL

$45.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 319477GS

COVER-OUTLET

$

$

Not available

4

Briggs & Stratton 319476GS

COVER-OUTLET

$9.99

$

In Stock, only 2 left!

0

5

Briggs & Stratton 198245GS

METER, Hour Digital
(Superseded to 202602GS)

$97.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 318307GS

KEY-SWITCH IGNITION

$35.99

$

In Stock, Qty 10

0

7

Briggs & Stratton 705436

KEY

$6.49

$

In Stock, only 1 left!

0

8

Briggs & Stratton 43437GS

OUTLET, 120/240V Locking, 30A

$17.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 709526

OUTLET-GFCI

$64.99

$

In Stock, only 2 left!

0

10

Briggs & Stratton 84002429

CABLE-CHOKE

$33.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 209872GS

BREAKER, Circuit, 20A

$9.99

$

In Stock, only 4 left!

0

12

Briggs & Stratton 795016

NUT

$3.49

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 84002449

DECAL

$12.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 703804

SCREW

$4.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 319459GS

TRIM-EDGE

$11.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 319529GS

GROMMET

$6.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 312636GS

BOOT, Circuit Breaker

$5.49

$

In Stock, only 4 left!

0

18

Briggs & Stratton 319530GS

GROMMET

$7.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 191481GS

BOOT, Breaker Circuit

$11.99

$

In Stock, only 1 left!

0

20

Briggs & Stratton 84002430

DECAL

$14.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 84002089

MODULE-BATTERY CHARGE

$32.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 772213

BRACKET-MODULE

$3.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 772217

LIGHT-PIPE

$3.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 84005244

MODULE-CO

$142.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 84001081

SCREW

$1.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 772215

WIRE-HARNESS-CO

$27.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 202033GS

Breaker, Circuit, 30A, 2P

$104.99

$

In Stock, only 1 left!

0
