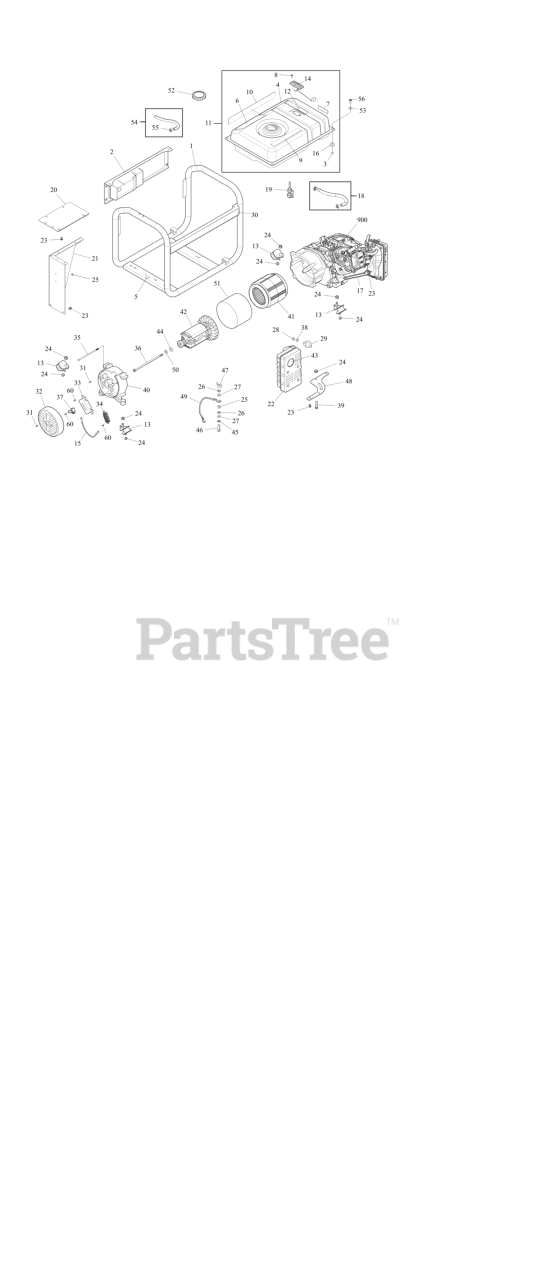

030747-01 - Briggs & Stratton 3,500 Watt Portable Generator Main Unit Parts Diagram

3,500 Watt Portable Generator

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 84002344

CRADLE

Note: (Includes Items 5 & 30)

$269.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton REF-80078854

Refer to: Control Panel Group

$

$

Currently unavailable

3

Briggs & Stratton 189137GS

SPACER

$4.49

$

In Stock, only 4 left!

0

4

Briggs & Stratton 84003219

DECAL

$8.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 704331

DECAL

$10.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 84003222

DECAL

$8.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 704189

DECAL

$11.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 314440GS

SCREW

$4.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 706159

DECAL

$12.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 84003224

DECAL

$5.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 84003220

TANK-FUEL

$

$

Currently unavailable

12

Briggs & Stratton 703264

DECAL

$16.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 706149

MOUNT-VIBRATION

$10.99

$

In Stock, Qty 7

0

14

Briggs & Stratton 704183

GAUGE-FUEL

$17.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 706150

WIRE

$6.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 189134GS

GROMMET, Rubber

$4.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 709662

BRACKET

$4.49

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 791745

LINE, Fuel

Note: (Cut to Fit)

$10.99

$

In Stock, Qty 20+

0

19

Briggs & Stratton 209417GS

VALVE, Fuel

$8.99

$

In Stock, Qty 20+

0

20

Briggs & Stratton 709655

HEATSHIELD

$30.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 709660

HEATSHIELD

$50.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 709665

MUFFLER

$120.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 706152

SCREW, M6 x 12

$4.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 67989GS

NUT, M8 Flange Serrated

$3.49

$

In Stock, Qty 9

0

25

Briggs & Stratton 49813GS

NUT, Hex, M6 - 1.0

$2.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 22097GS

WASHER, Lock, Split, 1/4"

$3.49

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 49811GS

WASHER

$1.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 45771GS

NUT, M8 - 1.25

$6.49

$

In Stock, only 2 left!

0

29

Briggs & Stratton 709664

GASKET, Muffler Adapter

$11.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 84003221

DECAL

$9.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 312909GS

SCREW

$3.49

$

In Stock, only 2 left!

0

32

Briggs & Stratton 703191

COVER-REAR BEARING

$12.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 709666

VOLTAGE REGULATOR

$30.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 703075

TERMINAL BLOCK

$6.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 706918

BOLT

$4.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 707155

BOLT

$6.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 703113

BRUSH ASSY

$7.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 703454

LOCKWASHER, Spring, 3/8

$3.49

$

In Stock, Qty 17

0

39

Briggs & Stratton 84001095

BOLT

$2.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 703190

CARRIER-BEARING

$73.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 84003181

STATOR

$288.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 709670

ROTOR

$251.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 83083GS

SCREEN, Spark Arrest

$9.49

$

In Stock, only 2 left!

0

44

Briggs & Stratton 189295GS

Washer, .432 x 1 x .064
(Superseded to 22304GS)

$3.49

$

In Stock, Qty 20+

0

45

Briggs & Stratton 26850GS

WASHER, Ext. M6 - 1/4" Shakeproof

$2.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 189156GS

HHCS, M6-1.0 x 25

$2.49

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 87680GS

NUT, M6 - 1.0 Wing

$7.49

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 709661

BRACKET-MUFFLER

$23.99

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 706165

WIRE

$8.49

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 801237

WASHER

$2.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 709657

BAND-STATOR

$2.49

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 319587GS

CAP-FUEL

$19.99

$

In Stock, only 1 left!

0

53

Briggs & Stratton 312005GS

WASHER

$3.99

$

In Stock, only 3 left!

0

54

Briggs & Stratton 315017GS

HOSE, Vapor (cut to fit)

Note: (Cut to Fit)

$28.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 314955GS

CLAMP

$4.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 703805

SCREW

$10.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 312908GS

SCREW

$2.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton 13U132-0004-G1

Engine

Note: *(See Note:)

$

$

Currently unavailable
