030728-03 - Briggs & Stratton Storm 6,250 Watt Portable Generator Control Panel Parts Diagram

Storm 6,250 Watt Portable Generator

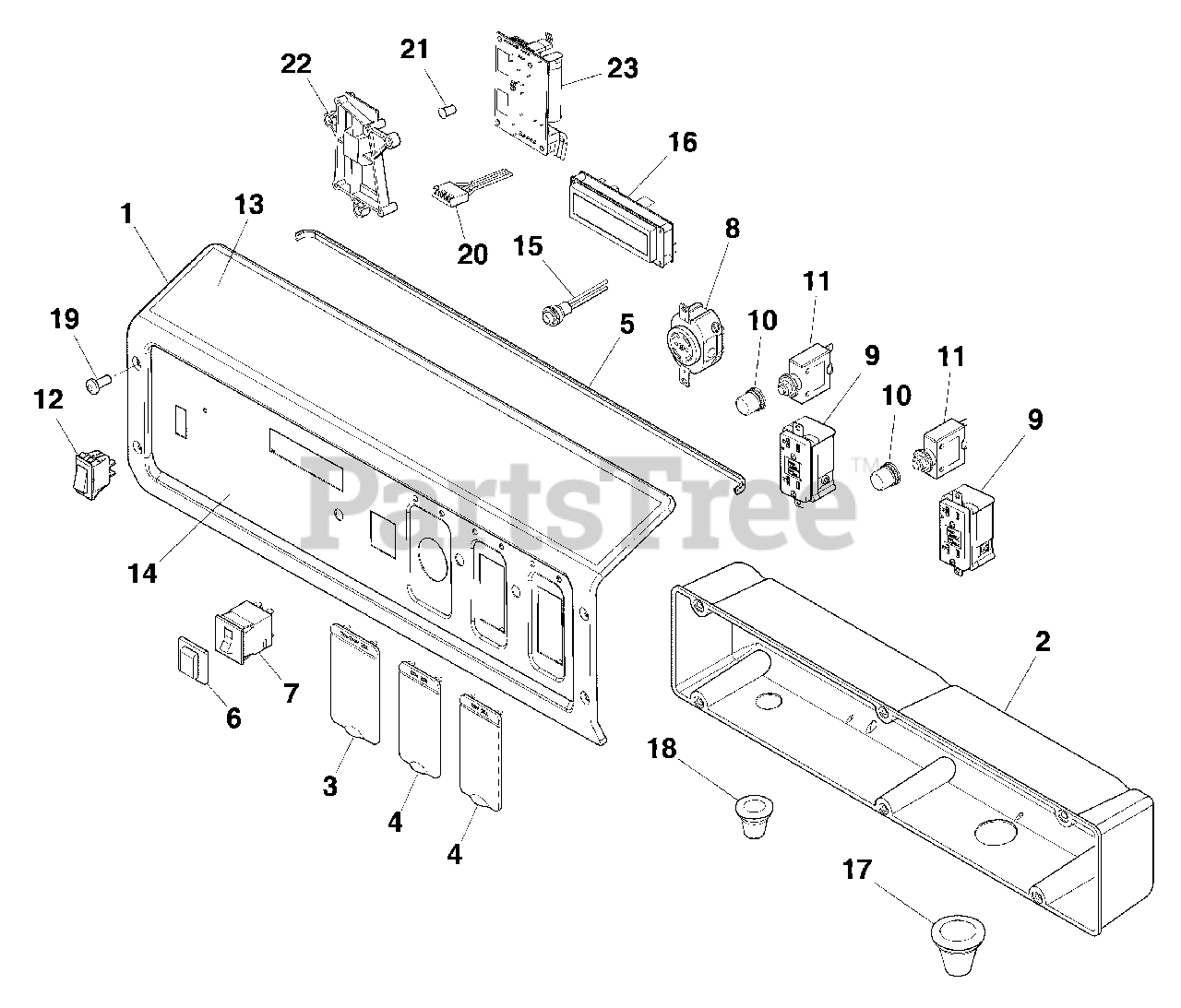

Control Panel Parts Diagram

  • Title

1

Briggs & Stratton 772210

PANEL-CONTROL

Note: (Includes Item 13 & 14)

$86.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 772214

BOX-CONTROL-PANEL

$56.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 319477GS

COVER-OUTLET

$

$

Not available

4

Briggs & Stratton 319476GS

COVER-OUTLET

$9.99

$

In Stock, only 2 left!

0

5

Briggs & Stratton 319459GS

TRIM-EDGE

$11.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 191481GS

BOOT, Breaker Circuit

$11.99

$

In Stock, only 1 left!

0

7

Briggs & Stratton 319540GS

BREAKER-CIRCUIT

$127.99

$

In Stock, only 3 left!

0

8

Briggs & Stratton 43437GS

OUTLET, 120/240V Locking, 30A

$17.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 709526

OUTLET-GFCI

$64.99

$

In Stock, only 2 left!

0

10

Briggs & Stratton 312636GS

BOOT, Circuit Breaker

$5.49

$

In Stock, only 4 left!

0

11

Briggs & Stratton 209872GS

BREAKER, Circuit, 20A

$9.99

$

In Stock, Qty 6

0

12

Briggs & Stratton 319525GS

SWITCH-ON/OFF

$9.49

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 772212

DECAL

$16.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 772216

DECAL

$18.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 319463GS

BUTTON-SELECT

$37.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 318458GS

POWER MONITOR

$275.99

$

In Stock, only 1 left!

0

17

Briggs & Stratton 319529GS

GROMMET

$6.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 319530GS

GROMMET

$7.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 772229

SCREW

$3.49

$

In Stock, only 4 left!

0

20

Briggs & Stratton 772215

WIRE-HARNESS-CO

$27.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 772217

LIGHT-PIPE

$3.49

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 772213

BRACKET-MODULE

$3.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 84005244

MODULE-CO

$142.99

$

Usually ships in 2-12 days

0
