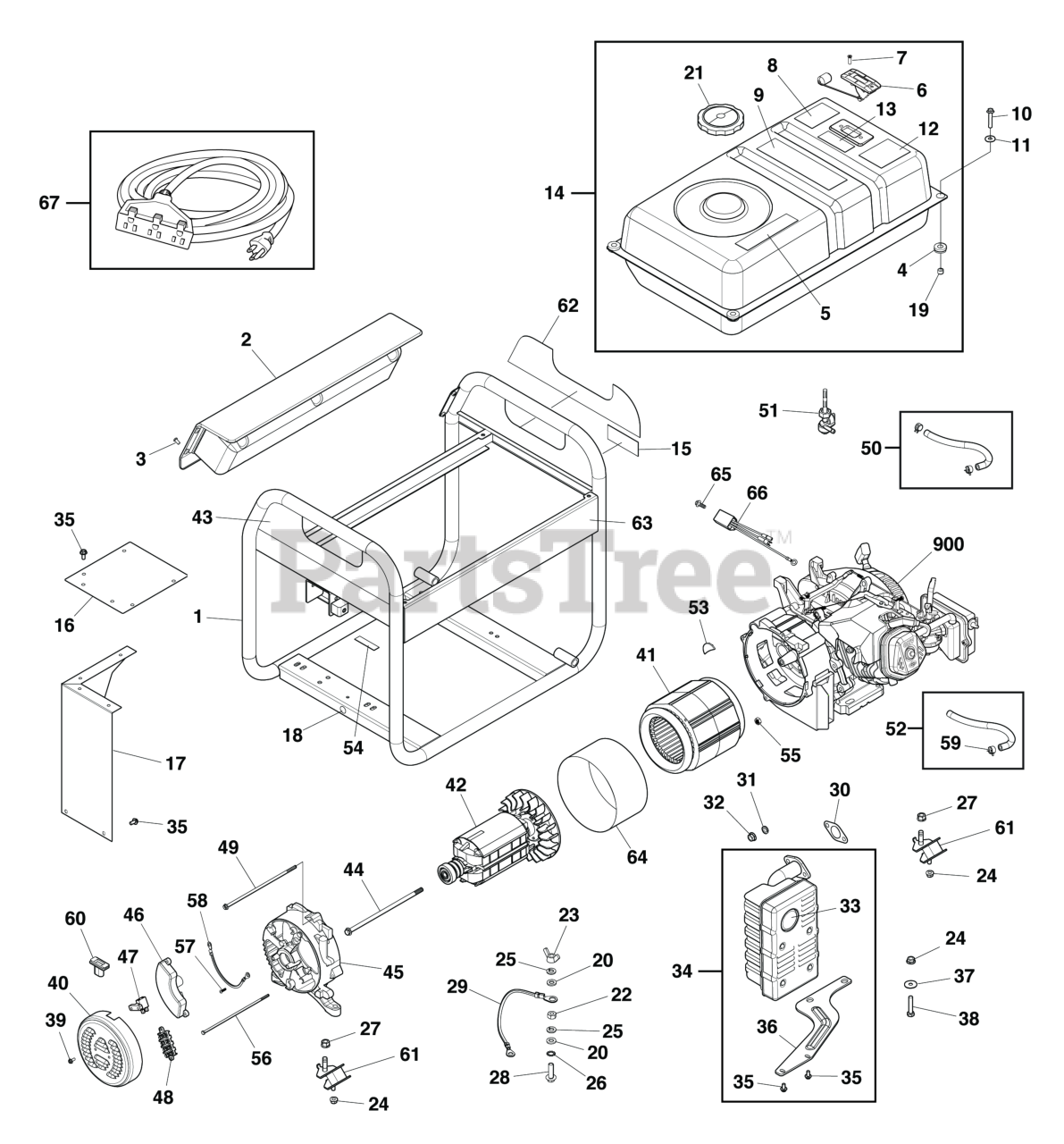

030728-01 - Briggs & Stratton Storm 6,250 Watt Portable Generator Main Unit Parts Diagram

Storm 6,250 Watt Portable Generator

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 772226

CRADLE

Note: (Includes Item 15, 18 & 63)

$201.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 772230

PANEL-CONTROL

$537.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 772229

SCREW

$3.49

$

In Stock, only 4 left!

0

4

Briggs & Stratton 189134GS

GROMMET, Rubber

$4.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 772237

DECAL

$8.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 704183

GAUGE-FUEL

$17.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 314440GS

SCREW

$4.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 772233

DECAL

$9.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 772234

DECAL

$10.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 703805

SCREW

$10.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 312005GS

WASHER

$3.99

$

In Stock, only 3 left!

0

12

Briggs & Stratton 202997GS

DECAL, Warning, CO

$13.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 703264

DECAL

$16.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 772227

TANK-FUEL

$431.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 772236

DECAL

$9.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 319456GS

HEATSHIELD

$22.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 319455GS

HEATSHIELD

$90.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 704331

DECAL

$10.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 189137GS

SPACER

$4.49

$

In Stock, only 4 left!

0

20

WASHER, Flat M6

$

$

Not available

21

Briggs & Stratton 319587GS

CAP-FUEL

$19.99

$

In Stock, only 1 left!

0

22

NUT, Hex, M6

$

$

Not available

23

Briggs & Stratton 87680GS

NUT, M6 - 1.0 Wing

$7.49

$

Usually ships in 2-12 days

0

24

* NUT, Flange Lock, M8

$

$

Not available

25

* WASHER, Lock, M6

$

$

Not available

26

* WASHER, Shakeproof, Ext M6

$

$

Not available

27

* NUT, Flange Lock, M10

$

$

Not available

28

HHCS, M6 - 1.0 x 25

$

$

Not available

29

Briggs & Stratton 706165

WIRE

$8.49

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 813085GS

GASKET
(Superseded to 797770)

$6.99

$

Usually ships in 2-12 days

0

31

* WASHER, Lock, M8

$

$

Not available

32

* NUT, Hex, M8-1.25

$

$

Not available

33

Briggs & Stratton 83083GS

SCREEN, Spark Arrest

$9.49

$

In Stock, only 2 left!

0

34

Briggs & Stratton 84003865

KIT-MUFFLER

$

$

Currently unavailable

35

Briggs & Stratton 706152

SCREW, M6 x 12

$4.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 319457GS

BRACKET, Muffler

$34.99

$

In Stock, only 1 left!

0

37

* WASHER, Flat M8

$

$

Not available

38

Briggs & Stratton 57821GS

CAPSCREW, Hex Head, M8-1.25 x 40

$2.49

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 312909GS

SCREW

$3.49

$

In Stock, only 2 left!

0

40

Briggs & Stratton 312870GS

COVER, Rear Bearing

$13.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 706903

STATOR

$564.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 706902

ROTOR

$438.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 772232

DECAL

$13.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 703910

BOLT

$9.49

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 312866GS

SUPPORT, Bearing

$83.99

$

In Stock, only 3 left!

0

46

Briggs & Stratton 312871GS

REGULATOR-VOLTAGE

$65.99

$

In Stock, only 1 left!

0

47

Briggs & Stratton 312904GS

BRUSH ASSEMBLY

$15.99

$

In Stock, Qty 15

0

48

Briggs & Stratton 312921GS

BLOCK, Junction

$9.49

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 703909

BOLT

$5.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 791745

LINE, Fuel

Note: (Cut to Fit)

$10.99

$

In Stock, Qty 20+

0

51

Briggs & Stratton 209417GS

VALVE, Fuel

$8.99

$

In Stock, Qty 20+

0

52

Briggs & Stratton 315017GS

HOSE, Vapor (cut to fit)

$28.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 706376

COVER-RUBBER

$3.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 706535

PAD-RUBBER

$4.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 312916GS

NUT

$3.49

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 703908

BOLT

$7.49

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 312911GS

SCREW

$2.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 706150

WIRE

$6.99

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 314955GS

CLAMP

$4.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 703013

COVER, Alternator, Rubber

$4.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 319451GS

MOUNT-VIBRATION

$13.99

$

In Stock, Qty 12

0

62

Briggs & Stratton 772228

DECAL

$13.99

$

Usually ships in 2-12 days

0

63

Briggs & Stratton 772231

DECAL

$14.99

$

Usually ships in 2-12 days

0

64

Briggs & Stratton 703911

BAND-STATOR

$45.99

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 84003179

SCREW

$2.49

$

Usually ships in 2-12 days

0

66

Briggs & Stratton 84003180

MODULE-SNUBBER

$14.99

$

Usually ships in 2-12 days

0

67

Briggs & Stratton 771800

CORDSET

$69.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton 25P132-0006-G1

ENGINE

$

$

Currently unavailable
