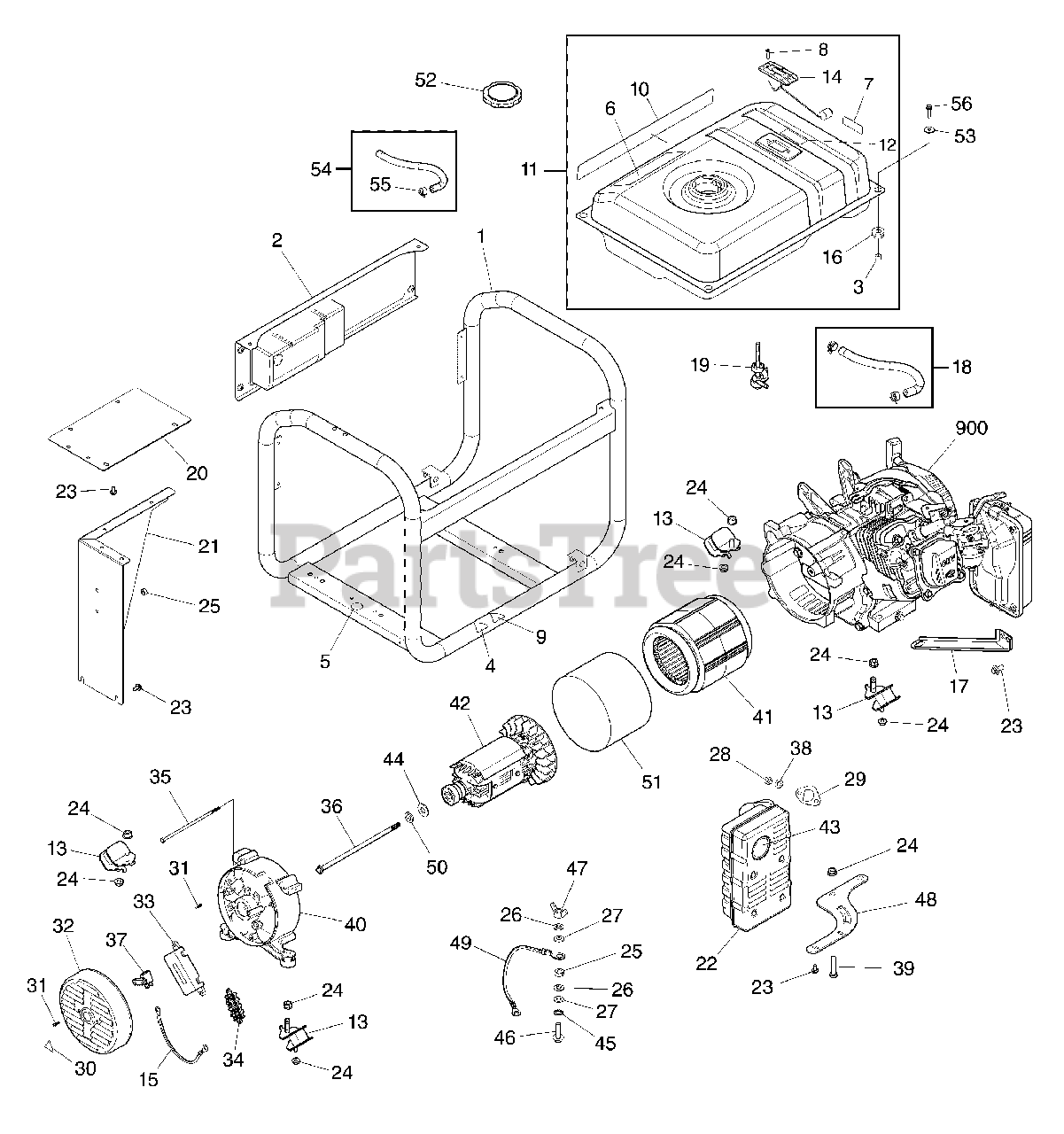

030711-00 - Briggs & Stratton 3,500 Watt Portable Generator Main Unit (80024082) Parts Diagram

3,500 Watt Portable Generator

Main Unit (80024082) Parts Diagram

  • Title

1

Briggs & Stratton 707011

CRADLE

Note: (Includes 4, 5 & 9)

$217.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 707207

ASSY- PANEL CONTROL

$103.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 189137GS

SPACER

$4.49

$

In Stock, only 4 left!

0

4

Briggs & Stratton 709663

DECAL

$12.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 704331

DECAL

$10.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 202997GS

DECAL

$13.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 704142

DECAL

$11.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 314440GS

SCREW

$4.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 709667

DECAL

$10.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 706950

DECAL

$5.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 706919

TANK-FUEL

$189.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 703264

DECAL

$16.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 706149

MOUNT-VIBRATION

$10.99

$

In Stock, Qty 7

0

14

Briggs & Stratton 704183

GAUGE-FUEL

$17.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 706150

WIRE

$6.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 189134GS

GROMMET

$4.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 709662

BRACKET

$4.49

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 791745

KIT-FUEL HOSE

Note: (Cut to Fit)

$10.99

$

In Stock, Qty 20+

0

19

Briggs & Stratton 209417GS

VALVE-FUEL

$8.99

$

In Stock, Qty 20+

0

20

Briggs & Stratton 709655

HEATSHIELD

$30.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 709660

HEATSHIELD

$50.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 709665

MUFFLER

$120.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 706152

BOLT

$4.49

$

Usually ships in 2-12 days

0

24

-----

* NUT, Flange, M8

$

$

Not available

25

-----

* NUT, Hex, M6

$

$

Not available

26

-----

* WASHER, Lock, M6

$

$

Not available

27

-----

* WASHER, M6

$

$

Not available

28

Briggs & Stratton 45771GS

NUT

$6.49

$

In Stock, only 2 left!

0

29

Briggs & Stratton 709664

GASKET

$11.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 709683

DECAL

$4.49

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 312909GS

SCREW

$3.49

$

In Stock, only 2 left!

0

32

Briggs & Stratton 703191

END COVER

$12.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 709666

VOLTAGE REGULATOR

$30.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 703075

TERMINAL BLOCK

$6.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 706918

BOLT

$4.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 707155

BOLT

$6.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 703113

BRUSH ASSY

$7.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 706162

WASHER

$3.49

$

Usually ships in 2-12 days

0

39

-----

* BOLT-M8 x 35

$

$

Not available

40

Briggs & Stratton 703190

CARRIER-BEARING

$73.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 709668

STATOR

$332.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 709670

ROTOR

$251.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 83083GS

SCREEN

$9.49

$

In Stock, only 2 left!

0

44

Briggs & Stratton 189295GS

WASHER
(Superseded to 22304GS)

$3.49

$

In Stock, Qty 20+

0

45

Briggs & Stratton 26850GS

WASHER

$2.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 189156GS

BOLT

$2.49

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 87680GS

NUT

$7.49

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 709661

BRACKET-MUFFLER

$23.99

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 706165

WIRE

$8.49

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 801237

WASHER-LOCK

$2.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 709657

BOND

$2.49

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 319587GS

CAP-FUEL

$19.99

$

In Stock, only 2 left!

0

53

Briggs & Stratton 312005GS

WASHER

$3.99

$

In Stock, only 3 left!

0

54

Briggs & Stratton 315017GS

HOSE-VAPOR

Note: (Cut to Fit)

$28.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 314955GS

CLAMP

$4.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 703805

BOLT

$10.99

$

Usually ships in 2-12 days

0

900

-----

** ENGINE

$

$

Not available
