030708-00 - Briggs & Stratton 5,750 Watt Portable Generator Control Panel (80024616) Parts Diagram

5,750 Watt Portable Generator

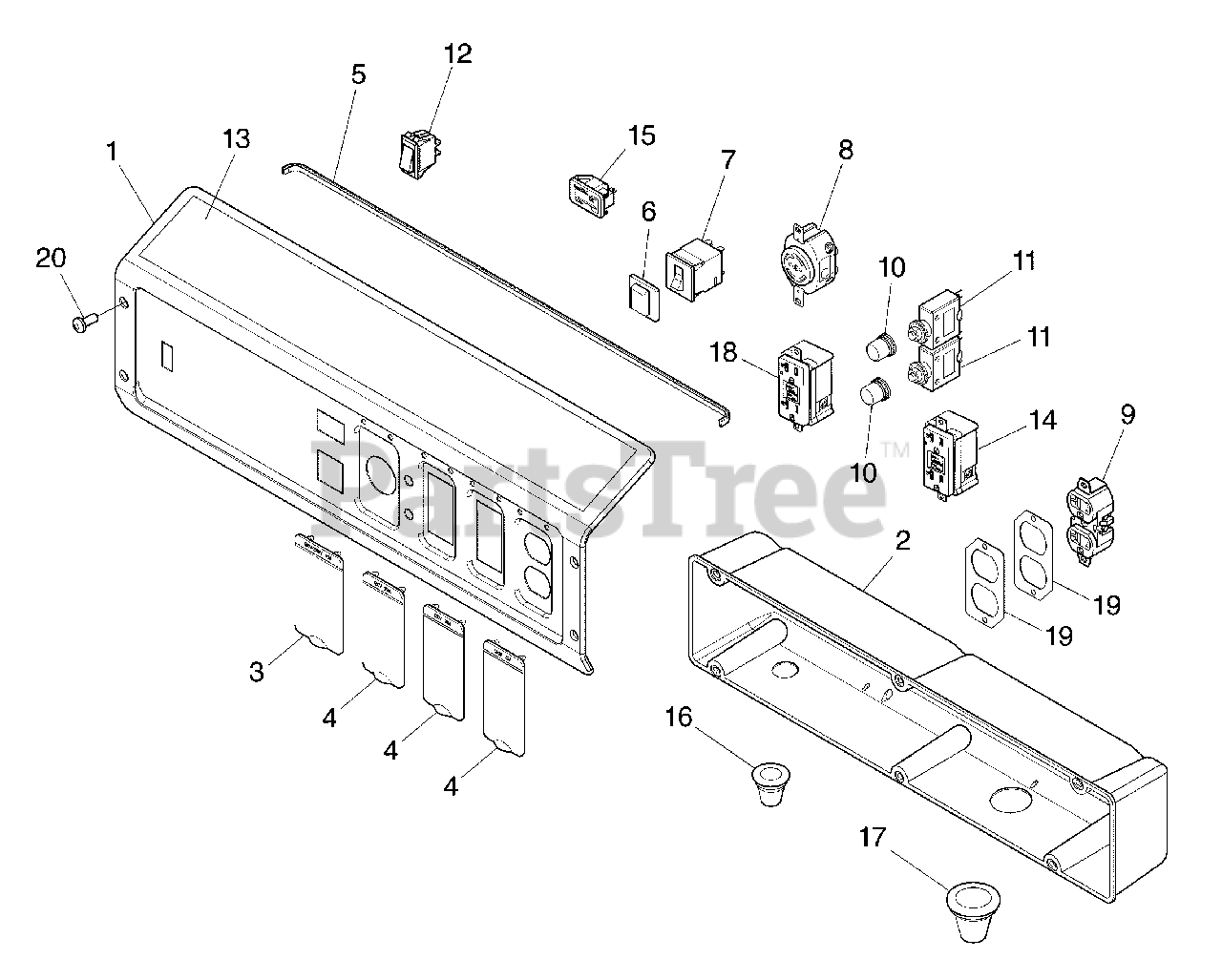

Control Panel (80024616) Parts Diagram

  • Title

1

Briggs & Stratton 707256

PANEL-CONTROL

Note: (Includes Ref. No. 13)

$80.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 319458GS

BOX-CONTROL PANEL

$71.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 319477GS

COVER-OUTLET

$

$

Not available

4

Briggs & Stratton 319476GS

COVER-OUTLET

$9.99

$

In Stock, only 2 left!

0

5

Briggs & Stratton 319459GS

TRIM-EDGE

$11.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 191481GS

BOOT

$11.99

$

In Stock, only 1 left!

0

7

Briggs & Stratton 707343

BREAKER-CIRCUIT

$43.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 43437GS

OUTLET-120/240V TL30A

$17.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 704903

OUTLET-120V

$14.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 312636GS

BOOT-CIRCUIT BREAKER

$5.49

$

In Stock, only 4 left!

0

11

Briggs & Stratton 704907

BREAKER-CIRCUIT 20A

$9.99

$

In Stock, only 2 left!

0

12

Briggs & Stratton 319525GS

SWITCH-ON/OFF

$9.49

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 707288

DECAL

$18.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 707290

OUTLET-120V GFCI 20A

$73.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 198245GS

HOUR METER
(Superseded to 202602GS)

$97.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 319530GS

GROMMET

$7.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 319529GS

GROMMET

$6.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 709526

OUTLET

$64.99

$

In Stock, only 2 left!

0

19

Briggs & Stratton 706326

INSULATION

$5.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 703804

SCREW

$4.99

$

Usually ships in 2-12 days

0
