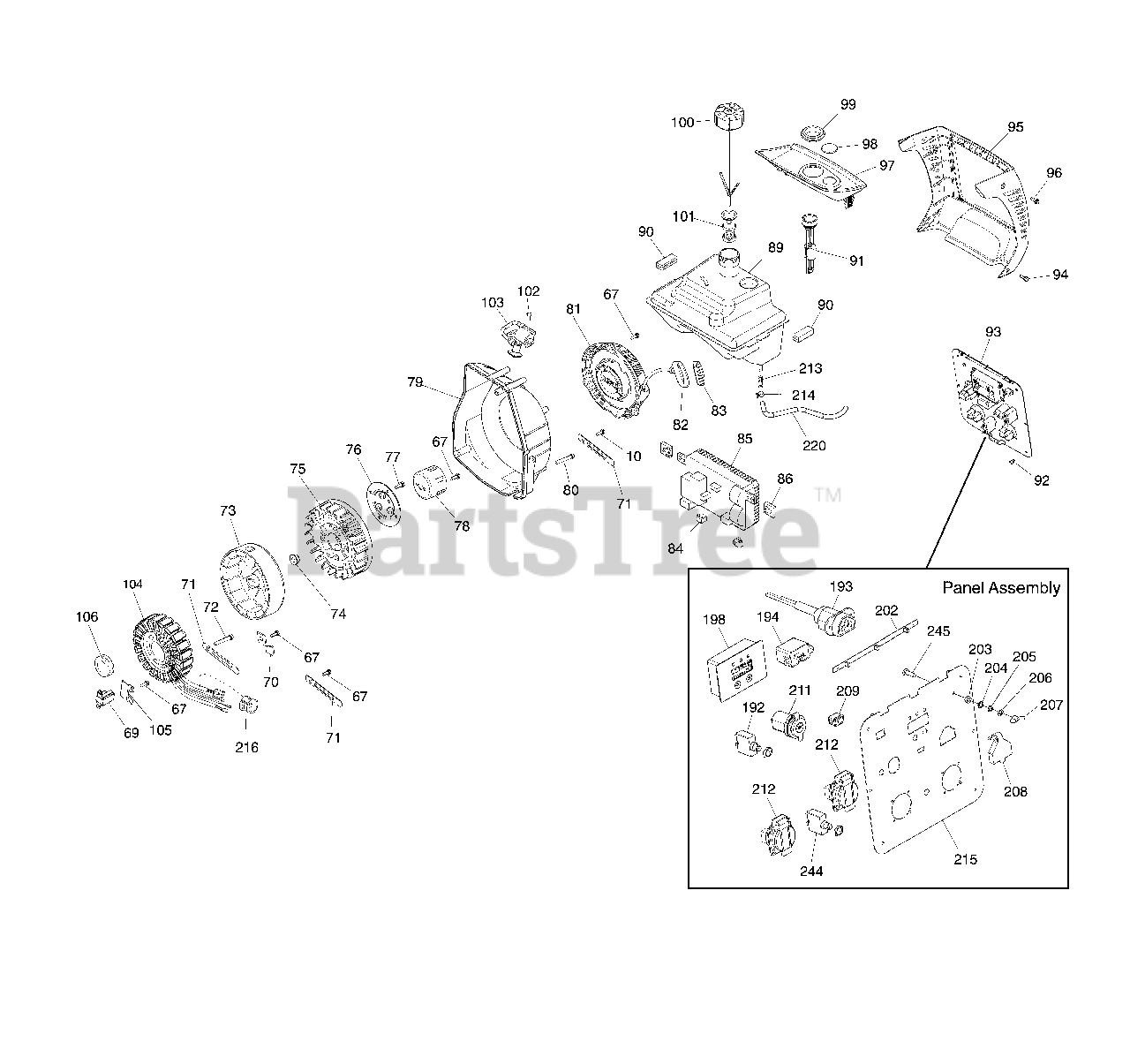

030688-00 - Generac 3,000 Watt Portable Generator, Inverter Alternator & Control Panel (80021848p1) Parts Diagram

3,000 Watt Portable Generator, Inverter

Alternator & Control Panel (80021848p1) Parts Diagram

  • Title

10

-----

SCREW

$

$

Not available

67

-----

BOLT, M6 X 12

$

$

Not available

69

Briggs & Stratton 705457

TRIGGER-IGNITION

$21.99

$

Usually ships in 2-12 days

0

70

-----

BRACKET

$

$

Not available

71

-----

BRACKET

$

$

Not available

72

-----

SCREW, M6 X 60

$

$

Not available

73

Briggs & Stratton 705458

ROTOR

$139.99

$

Usually ships in 2-12 days

0

74

-----

NUT, FLANGE M14

$

$

Not available

75

Briggs & Stratton 705459

FAN

$41.99

$

Usually ships in 2-12 days

0

76

-----

TERMINAL

$

$

Not available

77

-----

BOLT, M6 X 16

$

$

Not available

78

Briggs & Stratton 705466

CUP-FLYWHEEL

$14.99

$

Usually ships in 2-12 days

0

79

-----

COVER-FAN

$

$

Not available

80

-----

BOLT, M6 X 55

$

$

Not available

81

Briggs & Stratton 705465

STARTER-REWIND

$86.99

$

Usually ships in 2-12 days

0

82

-----

GRIP

$

$

Not available

83

Briggs & Stratton 311414GS

INSERT-GRIP

$4.99

$

Usually ships in 2-12 days

0

84

-----

MOUNT-VIBRATION

$

$

Not available

85

Briggs & Stratton 770527

INVERTER

$1196.99

$

Usually ships in 2-12 days

0

86

-----

MOUNT-VIBRATION

$

$

Not available

89

Briggs & Stratton 707176

TANK-FUEL

$256.99

$

Usually ships in 2-12 days

0

90

Briggs & Stratton 319941GS

MOUNT-VIBRATION

$7.49

$

Usually ships in 2-12 days

0

91

Briggs & Stratton 316633GS

GAUGE

$

$

Currently unavailable

92

-----

SCREW

$

$

Not available

93

Briggs & Stratton 708165

PANEL-CONTROL

$547.99

$

Usually ships in 2-12 days

0

94

-----

SCREW, M5 X 30

$

$

Not available

95

Briggs & Stratton 314529GS

COVER-PANEL

$32.99

$

Usually ships in 2-12 days

0

96

-----

SCREW, M6 X 56

$

$

Not available

97

Briggs & Stratton 3199929GS

TRAY-FUEL

$

$

Currently unavailable

98

Briggs & Stratton 706134

PLUG-SIGHT

$8.49

$

In Stock, only 1 left!

0

99

Briggs & Stratton 705490

GROMMET-FUEL

$14.99

$

Usually ships in 2-12 days

0

100

Briggs & Stratton 317134GS

CAP-FUEL

$28.99

$

Usually ships in 2-12 days

0

101

Briggs & Stratton 317441GS

FILTER-FILLER NECK

$7.49

$

Usually ships in 2-12 days

0

102

-----

SCREW

$

$

Not available

103

Briggs & Stratton 705463

COIL-IGNITION

$67.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 705464

STATOR

$378.99

$

Usually ships in 2-12 days

0

105

-----

BRACKET

$

$

Not available

106

-----

SEAL-OIL

$

$

Not available

192

Briggs & Stratton 311444GS

BREAKER-CIRCUIT

$80.99

$

Usually ships in 2-12 days

0

193

Briggs & Stratton 705488

PORT-PARALLEL

$46.99

$

Usually ships in 2-12 days

0

194

Briggs & Stratton 319946GS

PORT-USB

$56.99

$

Usually ships in 2-12 days

0

198

Briggs & Stratton 705482

MODULE

$207.99

$

Usually ships in 2-12 days

0

202

Briggs & Stratton 319945GS

PCB-LED

$35.99

$

Usually ships in 2-12 days

0

203

Briggs & Stratton 207743GS

NUT

$3.49

$

Usually ships in 2-12 days

0

204

Briggs & Stratton 91719GS

WASHER

$2.49

$

Usually ships in 2-12 days

0

205

Briggs & Stratton 207806GS

WASHER

$2.99

$

Usually ships in 2-12 days

0

206

Briggs & Stratton 207805GS

WASHER

$3.49

$

Usually ships in 2-12 days

0

207

Briggs & Stratton 187424GS

NUT-WING

$2.99

$

Usually ships in 2-12 days

0

208

Briggs & Stratton 705478

COVER-PORT

$8.99

$

In Stock, only 1 left!

0

209

Briggs & Stratton 311442GS

SWITCH

$24.99

$

Usually ships in 2-12 days

0

211

Briggs & Stratton 314531GS

OUTLET-DC

$18.99

$

Usually ships in 2-12 days

0

212

Briggs & Stratton 316585GS

OUTLET

$12.99

$

Usually ships in 2-12 days

0

213

Briggs & Stratton 707168

FILTER

$4.49

$

Usually ships in 2-12 days

0

214

-----

CLAMP

$

$

Not available

215

Briggs & Stratton 707179

PANEL-CONTROL

$89.99

$

Usually ships in 2-12 days

0

216

-----

COVER-RUBBER

$

$

Not available

220

Briggs & Stratton 707178

HOSE

$49.99

$

Usually ships in 2-12 days

0

244

Briggs & Stratton 707170

BREAKER-CIRCUIT

$31.99

$

Usually ships in 2-12 days

0

245

Briggs & Stratton 76040GS

SCREW

$2.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 187876GS

CABLE-BTTRY CHARGE

Note: (Not Illustrated)

$31.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 706357

FUNNEL

Note: (Not Illustrated)

$32.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 703574

KIT-TOOL

Note: (Not Illustrated)

$13.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 311559GS

JET-MAIN, High Altitude, 5000 ft.

Note: (Optional Accessory - Not Included)

$12.99

$

Usually ships in 2-12 days

0
