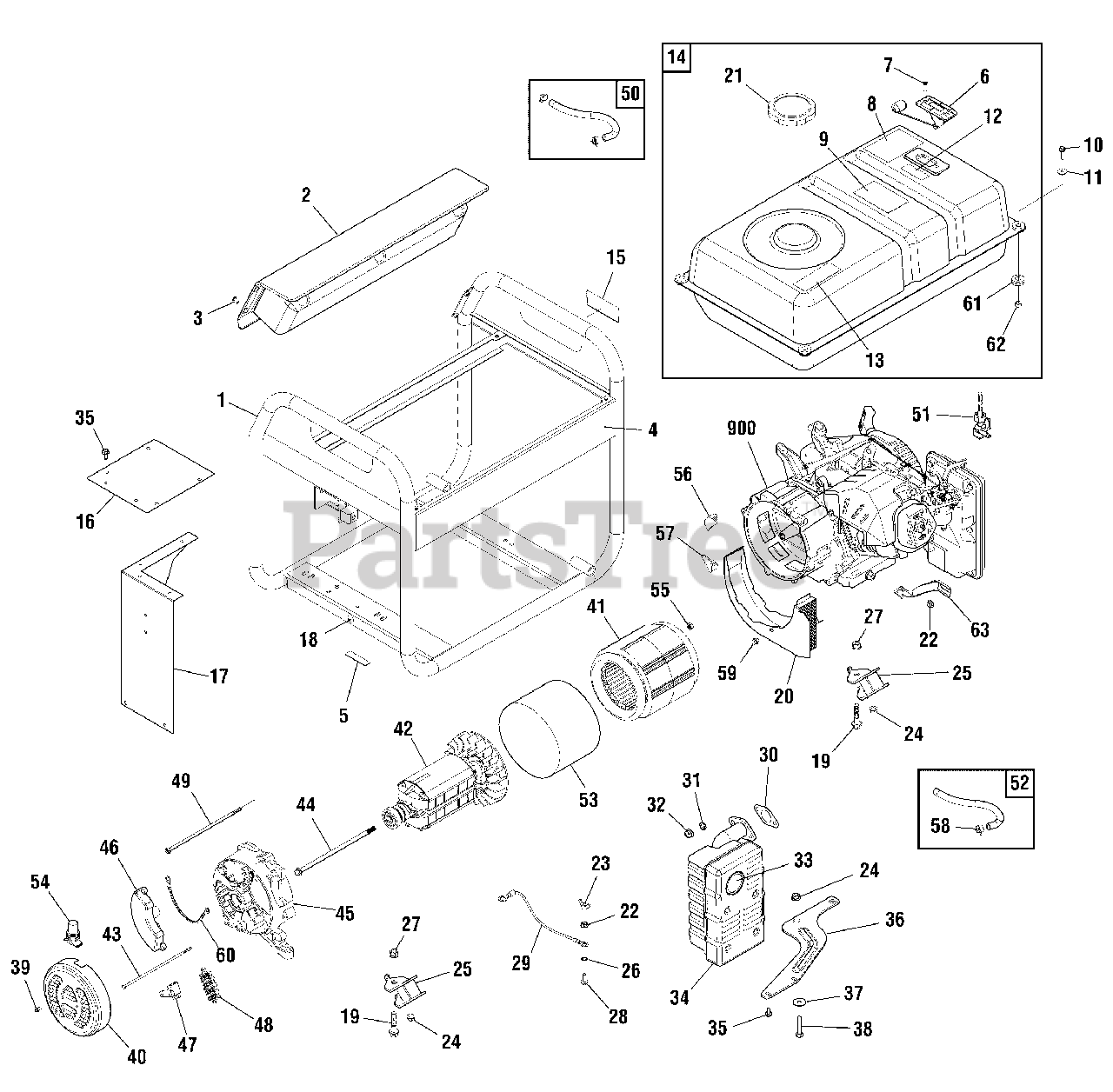

030677-00 - Briggs & Stratton 5,000 Watt Portable Generator Main Unit (80016035) Parts Diagram

5,000 Watt Portable Generator

Main Unit (80016035) Parts Diagram

  • Title

1

Briggs & Stratton 709930

CRADLE

$257.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 709936

PANEL-CONTROL

$285.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 703804

SCREW

$4.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 709933

DECAL

$19.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 706535

PAD-RUBBER

$4.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 704183

GAUGE-FUEL

$17.99

$

In Stock, only 1 left!

0

7

Briggs & Stratton 314440GS

SCREW

$4.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 202997GS

DECAL

$13.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 709937

DECAL

$10.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 703805

SCREW

$10.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 312005GS

WASHER

$3.99

$

In Stock, only 3 left!

0

12

Briggs & Stratton 703264

DECAL

$16.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 709667

DECAL

$10.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 709929

TANK-FUEL

$365.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 704142

DECAL

$11.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 319456GS

HEATSHIELD

$22.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 708881

HEATSHIELD

$75.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 704331

DECAL

$10.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 709939

BOLT

$3.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 709941

COVER-ALT

$28.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 319587GS

CAP-FUEL

$19.99

$

In Stock, only 1 left!

0

22

-----

* NUT, Flange Lock, M6

$

$

Not available

23

Briggs & Stratton 87680GS

NUT

$7.49

$

Usually ships in 2-12 days

0

24

-----

* NUT, Flange Lock, M8

$

$

Not available

25

Briggs & Stratton 708877

MOUNT-VIBRATION

$13.99

$

Usually ships in 2-12 days

0

26

-----

* WASHER, Ext. Shakeproof, M6

$

$

Not available

27

Briggs & Stratton 709938

NUT-M10 FLANGE LOCK

$6.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 706355

SCREW

$5.49

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 709932

WIRE

$5.49

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 704853

GASKET

$4.49

$

Usually ships in 2-12 days

0

31

-----

* WASHER, Lock, M8

$

$

Not available

32

-----

* NUT, Hex, M8-1.25

$

$

Not available

33

Briggs & Stratton 83083GS

SCREEN

$9.49

$

In Stock, only 2 left!

0

34

Briggs & Stratton 708878

MUFFLER

$142.99

$

Usually ships in 2-12 days

0

35

-----

* SCREW, Flange, M6 x 12

$

$

Not available

36

Briggs & Stratton 708879

BRACKET-MUFFLER

$207.99

$

Usually ships in 2-12 days

0

37

-----

* WASHER, Flat, M8

$

$

Not available

38

Briggs & Stratton 709934

BOLT

$9.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 709935

SCREW

$3.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 704838

END COVER

$29.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 704140

STATOR

$471.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 709943

ROTOR
(Superseded to 708883)

$294.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 709944

BOLT

$7.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 709946

BOLT

$8.49

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 704836

CARRIER-BEARING

$79.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 704913

VOLTAGE REGULATOR

$54.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 704915

BRUSH ASSY

$6.99

$

In Stock, Qty 11

0

48

Briggs & Stratton 705783

TERMINAL BLOCK

$4.49

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 709945

BOLT

$7.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 791745

KIT-FUEL HOSE (cut to fit)

$10.99

$

In Stock, Qty 20+

0

51

Briggs & Stratton 209417GS

VALVE-FUEL

$8.99

$

In Stock, Qty 20+

0

52

Briggs & Stratton 315017GS

HOSE-VAPOR (cut to fit)

$28.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 317342GS

BAND-STATOR

$10.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 207879GS

BOOT

$6.99

$

In Stock, only 2 left!

0

55

Briggs & Stratton 709931

NUT

$3.49

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 705771

GUARD

$4.49

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 705772

GUARD

$4.49

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 314955GS

CLAMP

$4.99

$

Usually ships in 2-12 days

0

59

-----

* SCREW, Flange, M6 x 8

$

$

Not available

60

Briggs & Stratton 709940

WIRE

$5.49

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 189134GS

GROMMET

$4.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 189137GS

SPACER

$4.49

$

In Stock, only 4 left!

0

63

Briggs & Stratton 708880

BRACKET

$4.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton 24G032-0001-G1

** ENGINE

$

$

Not available
