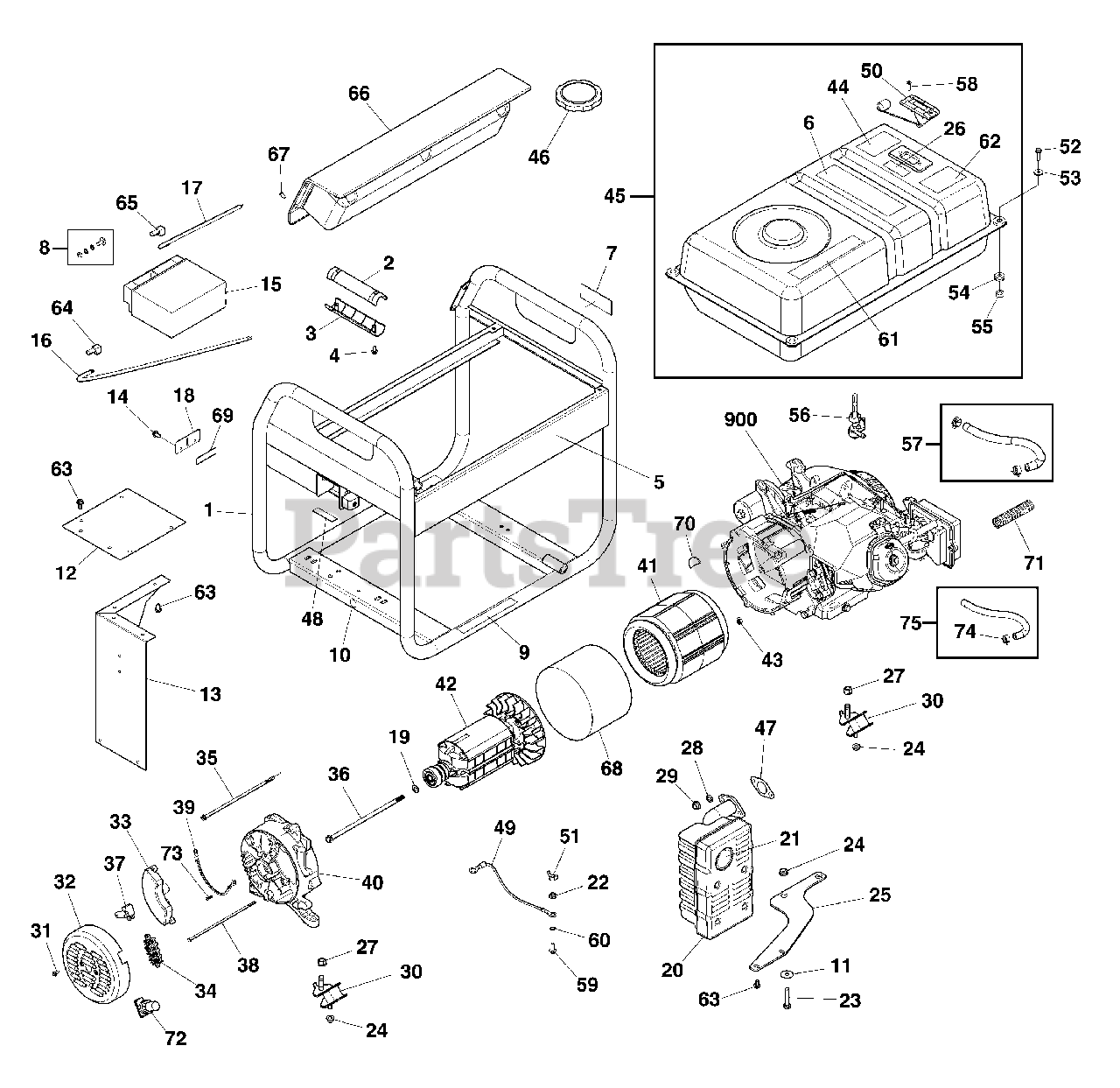

030664-01 - Briggs & Stratton 8,000 Watt Portable Generator Main Unit (80017903) Parts Diagram

8,000 Watt Portable Generator

Main Unit (80017903) Parts Diagram

  • Title

1

Briggs & Stratton 706551

CRADLE

Note: (Includes Ref. Nos. 5, 7 & 10)

$419.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 312009GS

GRIP, Handle

$18.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 312008GS

GRIP, Handle

$16.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 75477GS

PPHMS, M5 - 0.8 x 20

$3.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 706552

DECAL

$16.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 704186

DECAL

$8.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 704189

DECAL

$11.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 315546GS

KIT, Hardware, Battery Terminal

$8.99

$

In Stock, only 1 left!

0

9

Briggs & Stratton 704187

DECAL

$5.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 704331

DECAL

$10.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton B2495GS

WSHR, 25.4 X 8.45 X 1.4

$2.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 312020GS

HEATSHIELD

$36.99

$

In Stock, only 1 left!

0

13

Briggs & Stratton 312019GS

HEATSHIELD

$60.99

$

In Stock, only 1 left!

0

14

Briggs & Stratton 209775GS

BOLT

$4.99

$

In Stock, only 1 left!

0

15

Briggs & Stratton 316345GS

BATTERY

$246.99

$

In Stock, only 1 left!

0

16

Briggs & Stratton 312014GS

CABLE-BATTRY, RED

$22.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 312026GS

CABLE-BTTRY, BLACK

$21.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 311983GS

PLATE-BATTERY

$9.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 207826GS

WASHER, Senci

$4.49

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 192569GS

MUFFLER

$179.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 83083GS

SCREEN, Spark Arrest

$9.49

$

In Stock, only 2 left!

0

22

Briggs & Stratton 52857GS

NUT-M8 FLANGE

$3.49

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 57821GS

CAPSCREW, Hex Head, M8-1.25 x 40

$2.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 67989GS

NUT, M8 Flange Serrated

$3.49

$

In Stock, Qty 9

0

25

Briggs & Stratton 319457GS

BRACKET, Muffler

$34.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 703264

DECAL

$16.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 52859GS

NUT, Lock

$2.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 22237GS

WASHER, Locking, 3/8

$2.49

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 45771GS

NUT, M8 - 1.25

$6.49

$

In Stock, only 2 left!

0

30

Briggs & Stratton 319451GS

MOUNT-VIBRATION

$13.99

$

In Stock, Qty 12

0

31

Briggs & Stratton 207824GS

BOLT, M5 - 6 x 12

$4.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 209428GS

END COVER

$31.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 312038GS

VOLTAGE REGULATOR

$65.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 316945GS

BLOCK-JUNCTION

$9.49

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 312638GS

BOLT

$17.99

$

In Stock, only 2 left!

0

36

Briggs & Stratton 704235

BOLT

$11.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 207827GS

BRUSH ASSEMBLY

$

$

Not available

38

Briggs & Stratton 312640GS

BOLT

$7.49

$

In Stock, only 2 left!

0

39

Briggs & Stratton 706150

WIRE

$6.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 708704

CARRIER-BEARING

$112.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 706375

STATOR

$770.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 312029GS

ROTOR

$484.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 207878GS

NUT, M5

$7.49

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 704192

DECAL

$12.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 706554

TANK-FUEL

$121.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 319587GS

CAP-FUEL

$19.99

$

In Stock, only 2 left!

0

47

Briggs & Stratton 813085GS

GASKET
(Superseded to 797770)

$6.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 706535

PAD-RUBBER

$4.99

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 706165

WIRE

$8.49

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 704183

GAUGE-FUEL

$17.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 87680GS

NUT, M6 - 1.0 Wing

$7.49

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 703805

SCREW

$10.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 312005GS

WASHER

$3.99

$

In Stock, only 3 left!

0

54

Briggs & Stratton 189134GS

GROMMET, Rubber

$4.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 189137GS

SPACER

$4.49

$

In Stock, only 4 left!

0

56

Briggs & Stratton 209417GS

VALVE, Fuel

$8.99

$

In Stock, Qty 20+

0

57

Briggs & Stratton 791745

KIT-FUEL, Hose (Cut To Fit)

Note: (Cut to Fit)

$10.99

$

In Stock, Qty 20+

0

58

Briggs & Stratton 314440GS

SCREW

$4.49

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 706166

SCREW

$5.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 26850GS

WASHER, Ext. M6 - 1/4" Shakeproof

$2.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 704193

DECAL

$13.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 202997GS

DECAL, Warning, CO

$13.99

$

Usually ships in 2-12 days

0

63

Briggs & Stratton 706152

SCREW, M6 x 12

$4.49

$

Usually ships in 2-12 days

0

64

Briggs & Stratton 319405GS

CAP-WIRE, RED

$3.99

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 319821GS

CAP-WIRE, BLACK

$3.99

$

Usually ships in 2-12 days

0

66

Briggs & Stratton 705404

ASSY-CONTROL PANEL

$620.99

$

Usually ships in 2-12 days

0

67

Briggs & Stratton 703804

SCREW

$4.99

$

Usually ships in 2-12 days

0

68

Briggs & Stratton 706168

BOND

$37.99

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 706377

PAD-RUBBER

$4.49

$

Usually ships in 2-12 days

0

70

Briggs & Stratton 706376

COVER-RUBBER

$3.99

$

Usually ships in 2-12 days

0

71

Briggs & Stratton 706534

BELLOWS

$37.99

$

Usually ships in 2-12 days

0

72

Briggs & Stratton 207879GS

BOOT, Rubber

$6.99

$

In Stock, only 2 left!

0

73

Briggs & Stratton 207824GS

BOLT, M5 - 6 x 12

$4.99

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 314955GS

CLAMP

$4.99

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 315017GS

HOSE, Vapor (cut to fit)

Note: (Cut to Fit)

$28.99

$

Usually ships in 2-12 days

0

76

Briggs & Stratton 707648

DECAL

$15.99

$

Usually ships in 2-12 days

0

77

Briggs & Stratton 707652

DECAL

$13.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton 25T235-0035-G1

ENGINE

$

$

Not available

--

Briggs & Stratton 316742GS

FUSE

Note: (Not Illustrated)

$13.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 100028WEB

100028 OIL 48OZ. (EA)

Note: (Not Illustrated)

$

$

Not available

--

Briggs & Stratton B4177GS

CHARGER, Battery, Round Connector, 120 VAC,
(Superseded to 705927)

Note: (Not Illustrated)

$38.99

$

In Stock, Qty 8

0
