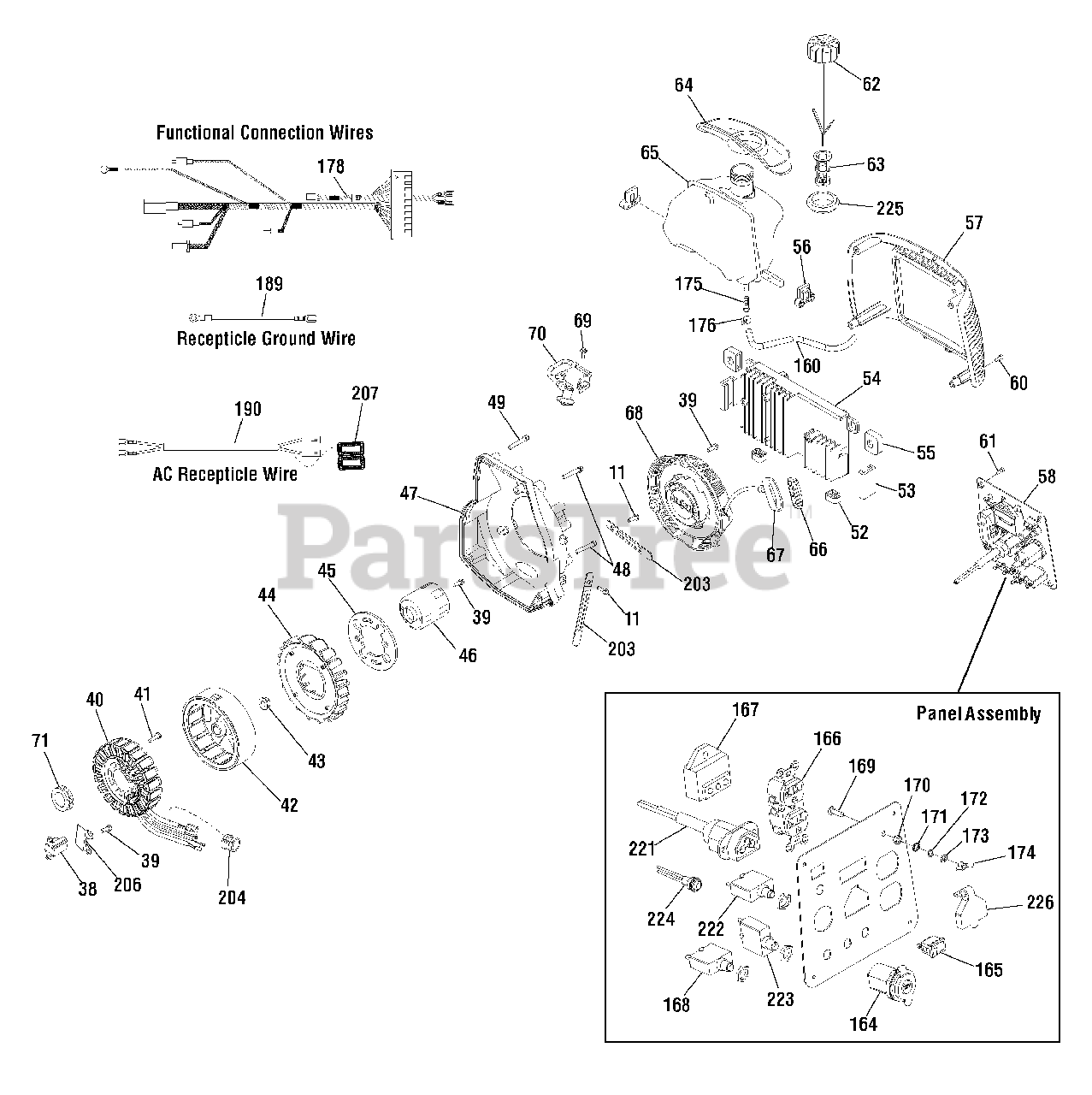

030651-00 - Briggs & Stratton 1,700 Watt Portable Generator, Inverter Alternator & Control Panel (80015609p1) Parts Diagram

1,700 Watt Portable Generator, Inverter

Alternator & Control Panel (80015609p1) Parts Diagram

  • Title

11

-----

BOLT

$

$

Not available

38

Briggs & Stratton 311399GS

TRIGGER-IGNITION

$16.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 311400GS

SCREW

$2.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 707590

STATOR

$289.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 311402GS

SCREW

$2.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 707591

ROTOR

$155.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 311404GS

NUT

$7.49

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 314701GS

FAN

$37.99

$

Usually ships in 2-12 days

0

45

-----

TERMINAL

$

$

Not available

46

Briggs & Stratton 311406GS

CUP-FLYWHEEL

$13.99

$

Usually ships in 2-12 days

0

47

-----

COVER-FAN

$

$

Not available

48

-----

BOLT

$

$

Not available

49

-----

BOLT

$

$

Not available

52

-----

MOUNT-VIBRATION

$

$

Not available

53

-----

MOUNT-VIBRATION

$

$

Not available

54

Briggs & Stratton 707592

INVERTER

$743.99

$

Usually ships in 2-12 days

0

55

-----

MOUNT-VIBRATION

$

$

Not available

56

-----

MOUNT-VIBRATION

$

$

Not available

57

Briggs & Stratton 314529GS

COVER-PANEL

$32.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 708077

PANEL-CONTROL

$391.99

$

Usually ships in 2-12 days

0

60

-----

SCREW

$

$

Not available

61

-----

SCREW

$

$

Not available

62

Briggs & Stratton 317134GS

CAP-FUEL

$28.99

$

Usually ships in 2-12 days

0

63

Briggs & Stratton 317441GS

FILTER-FILLER NECK

$7.49

$

Usually ships in 2-12 days

0

64

Briggs & Stratton 707595

PAD-FUEL TANK

$16.99

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 707596

TANK-FUEL

$256.99

$

Usually ships in 2-12 days

0

66

Briggs & Stratton 311414GS

INSERT-GRIP

$4.99

$

Usually ships in 2-12 days

0

67

-----

GRIP

$

$

Not available

68

Briggs & Stratton 706058

STARTER-REWIND

$106.99

$

Usually ships in 2-12 days

0

69

-----

SCREW

$

$

Not available

70

Briggs & Stratton 317436GS

COIL-IGNITION

$39.99

$

In Stock, only 2 left!

0

71

-----

SEAL-OIL

$

$

Not available

160

Briggs & Stratton 707167

HOSE-FUEL

$53.99

$

Usually ships in 2-12 days

0

164

Briggs & Stratton 314531GS

OUTLET

$18.99

$

Usually ships in 2-12 days

0

165

Briggs & Stratton 311442GS

SWITCH

$24.99

$

Usually ships in 2-12 days

0

166

Briggs & Stratton 68759GS

OUTLET

$24.99

$

In Stock, only 4 left!

0

167

Briggs & Stratton 311443GS

LIGHT-INDICATOR

$289.99

$

Usually ships in 2-12 days

0

168

Briggs & Stratton 311444GS

CIRCUIT BREAKER

$80.99

$

Usually ships in 2-12 days

0

169

Briggs & Stratton 76040GS

SCREW

$2.99

$

Usually ships in 2-12 days

0

170

Briggs & Stratton 207743GS

NUT

$3.49

$

Usually ships in 2-12 days

0

171

Briggs & Stratton 91719GS

WASHER

$2.49

$

Usually ships in 2-12 days

0

172

Briggs & Stratton 207806GS

WASHER

$2.99

$

Usually ships in 2-12 days

0

173

Briggs & Stratton 207805GS

WASHER

$3.49

$

Usually ships in 2-12 days

0

174

Briggs & Stratton 187424GS

WING NUT

$2.99

$

Usually ships in 2-12 days

0

175

Briggs & Stratton 707168

FILTER-FUEL TANK

$4.49

$

Usually ships in 2-12 days

0

176

-----

CLAMP

$

$

Not available

178

Briggs & Stratton 314533GS

HARNESS-WIRING

$34.99

$

Usually ships in 2-12 days

0

189

Briggs & Stratton 315824GS

WIRE

$6.49

$

Usually ships in 2-12 days

0

190

Briggs & Stratton 315829GS

HARNESS-WIRING

$16.99

$

Usually ships in 2-12 days

0

203

-----

BRACKET

$

$

Not available

204

-----

COVER-RUBBER

$

$

Not available

206

-----

PROTECTOR BOARD

$

$

Not available

207

Briggs & Stratton 317445GS

BEAD-FERRITE

$17.99

$

Usually ships in 2-12 days

0

221

Briggs & Stratton 705488

SOCKET

$46.99

$

Usually ships in 2-12 days

0

222

Briggs & Stratton 707170

CIRCUIT BREAKER, 15A

$31.99

$

Usually ships in 2-12 days

0

223

Briggs & Stratton 705931

CIRCUIT BREAKER, 20A

$41.99

$

Usually ships in 2-12 days

0

224

Briggs & Stratton 319463GS

BUTTON-SELECT

$37.99

$

Usually ships in 2-12 days

0

225

Briggs & Stratton 705490

GROMMET

$14.99

$

Usually ships in 2-12 days

0

226

Briggs & Stratton 705478

COVER

$8.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 187876GS

CABLE-BTTRY CHARGE

Note: (Not Illustrated)

$31.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 100005

OIL

Note: (Not Illustrated)

$8.99

$

In Stock, Qty 20+

0

Briggs & Stratton 707850

ADAPTER-USB

Note: (Not Illustrated)

$34.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 706357

FUNNEL

Note: (Not Illustrated)

$32.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 703574

KIT-TOOL

Note: (Not Illustrated)

$13.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 311559GS

JET-MAIN, High Altitude, 5000 ft

Note: (Optional Accessory - Not Included)

$12.99

$

Usually ships in 2-12 days

0
