030640-00 - Briggs & Stratton 5,500 Watt Portable Generator Main Unit (80011031) Parts Diagram

5,500 Watt Portable Generator

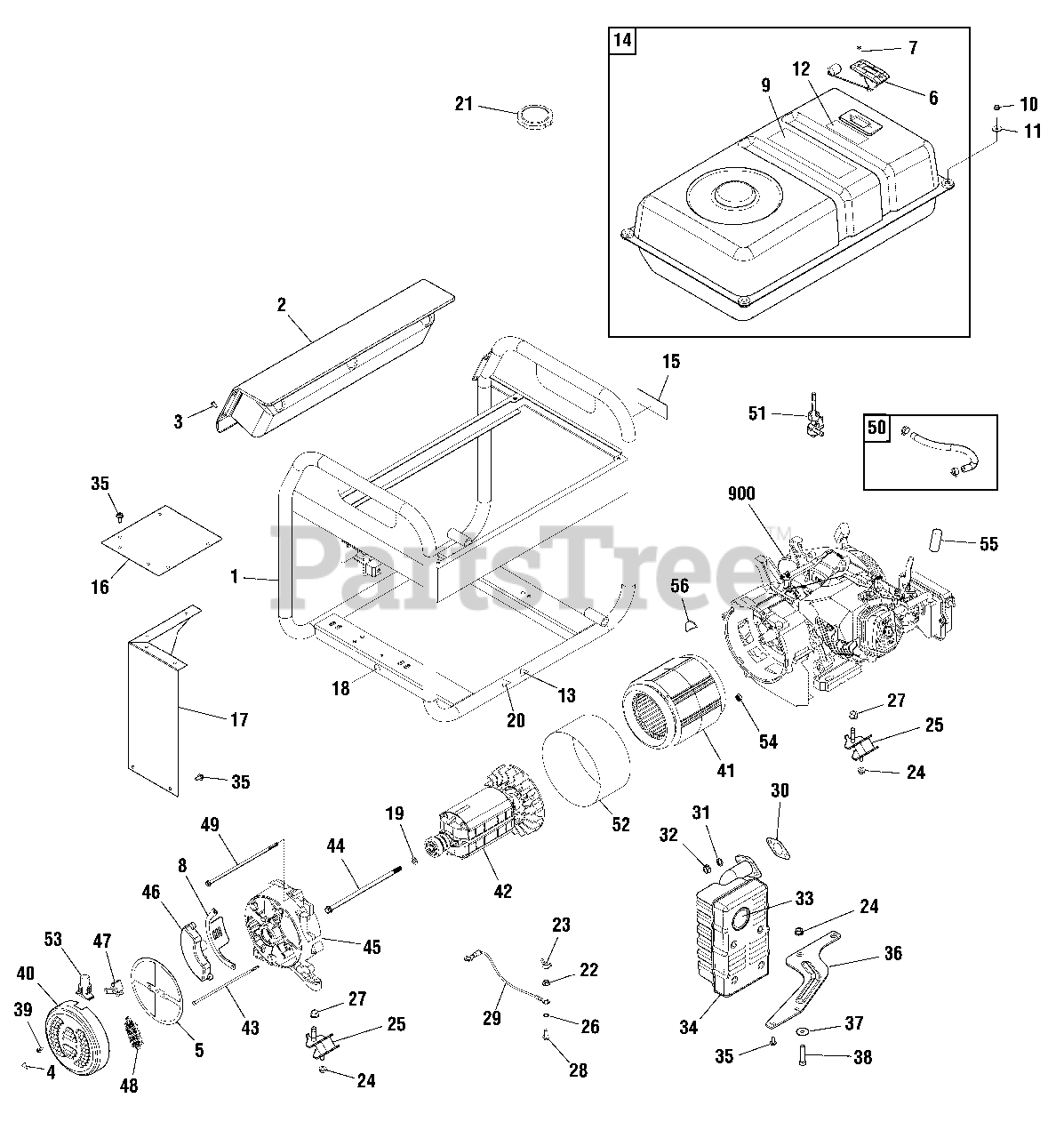

Main Unit (80011031) Parts Diagram

  • Title

1

Briggs & Stratton 706476

CRADLE

$291.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 706443

PANEL-CONTROL

$310.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 703804

SCREW

$4.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 315636GS

DECAL

$7.49

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 706398

GUARD-SCREEN

$12.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 704183

GAUGE-FUEL

$17.99

$

In Stock, only 1 left!

0

7

Briggs & Stratton 314440GS

SCREW

$4.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 706397

SHIELD

$4.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 315637GS

DECAL

$7.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 703805

SCREW

$10.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 312005GS

WASHER

$3.99

$

In Stock, only 3 left!

0

12

Briggs & Stratton 703264

DECAL

$16.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 315635GS

DECAL

$7.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 706442

TANK-FUEL

$459.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 704330

DECAL

$10.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 319456GS

HEATSHIELD

$22.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 319455GS

HEATSHIELD

$90.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 704331

DECAL

$10.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 207826GS

WASHER

$4.49

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 315634GS

DECAL

$7.49

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 704655

CAP-FUEL

$17.99

$

Usually ships in 2-12 days

0

22

-----

* NUT, Flange Lock, M6

$

$

Not available

23

Briggs & Stratton 87680GS

NUT

$7.49

$

Usually ships in 2-12 days

0

24

-----

* NUT, Flange Lock, M8

$

$

Not available

25

Briggs & Stratton 319451GS

MOUNT-VIBRATION

$13.99

$

In Stock, Qty 12

0

26

-----

* WASHER, Shakeproof, EXT, M6

$

$

Not available

27

-----

* NUT, Flange Lock, M10

$

$

Not available

28

-----

* SCREW, Flange, M6 x 16

$

$

Not available

29

Briggs & Stratton 706165

WIRE

$8.49

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 813085GS

GASKET
(Superseded to 797770)

$6.99

$

Usually ships in 2-12 days

0

31

-----

* WASHER, Lock, M8

$

$

Not available

32

-----

* NUT, Hex, M8 1.25

$

$

Not available

33

Briggs & Stratton 83083GS

SCREEN

$9.49

$

In Stock, only 2 left!

0

34

Briggs & Stratton 192569GS

MUFFLER

$179.99

$

In Stock, only 1 left!

0

35

Briggs & Stratton 706152

BOLT

$4.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 319457GS

BRACKET-MUFFLER

$34.99

$

In Stock, only 1 left!

0

37

-----

* WASHER, Flat, M8

$

$

Not available

38

Briggs & Stratton 57821GS

HHCS-M8-1.25 x 40

$2.49

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 207824GS

SCREW

$4.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 313364GS

END COVER

$32.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 706439

STATOR

$434.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 706440

ROTOR

$397.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 312640GS

BOLT

$7.49

$

In Stock, only 2 left!

0

44

Briggs & Stratton 704235

BOLT

$11.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 207838GS

CARRIER-BEARING

$106.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 706394

VOLTAGE REGULATOR

$119.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 207827GS

BRUSH ASSY

$

$

Not available

48

Briggs & Stratton 316945GS

TERMINAL BLOCK

$9.49

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 312638GS

BOLT

$17.99

$

In Stock, only 2 left!

0

50

Briggs & Stratton 791745

KIT-FUEL HOSE (cut to fit)

$10.99

$

In Stock, Qty 20+

0

51

Briggs & Stratton 209417GS

VALVE-FUEL

$8.99

$

In Stock, Qty 20+

0

52

Briggs & Stratton 706168

BOND

$37.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 207879GS

BOOT

$6.99

$

In Stock, only 2 left!

0

54

Briggs & Stratton 207878GS

NUT

$7.49

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 706441

CAP

$4.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 706376

COVER-RUBBER

$3.99

$

Usually ships in 2-12 days

0

900

-----

** ENGINE

$

$

Not available

--

Briggs & Stratton 316768GS

OIL BOTTLE (Qty 2 Required)

Note: (Not Illustrated)

$

$

Currently unavailable
