030635-00 - Brute 5,250 Watt Portable Generator Main Unit (80009634) Parts Diagram

5,250 Watt Portable Generator

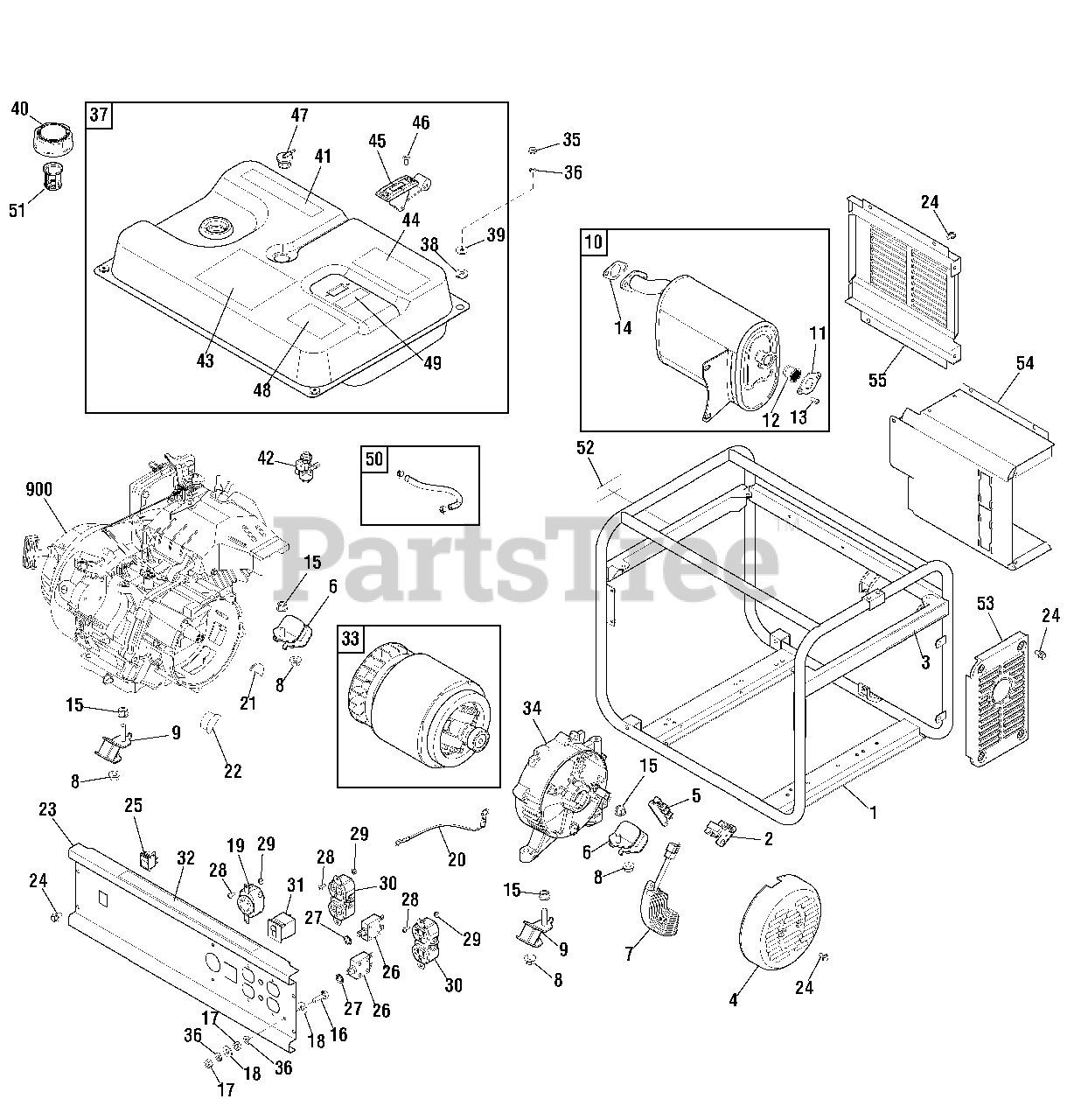

Main Unit (80009634) Parts Diagram

  • Title

1

Briggs & Stratton 704885

CRADLE

$364.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 704915

BRUSH ASSY

$6.99

$

In Stock, Qty 11

0

3

Briggs & Stratton 319066GS

DECAL

$11.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 704838

END COVER

$29.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 705783

TERMINAL

$4.49

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 704890

MOUNT-VIBRATION

$9.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 704913

VOLTAGE REGULATOR

$54.99

$

Usually ships in 2-12 days

0

8

-----

* NUT, Flange, M8

$

$

Not available

9

Briggs & Stratton 704891

MOUNT-VIBRATION

$10.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 704842

ASSY-MUFFLER

$164.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 704845

PLATE

$4.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 704846

SPARK ARRESTOR

$7.99

$

Usually ships in 2-12 days

0

13

-----

* SCREW, M5 x 12

$

$

Not available

14

Briggs & Stratton 704853

GASKET-MUFFLER

$4.49

$

Usually ships in 2-12 days

0

15

-----

* NUT, Flange, M10

$

$

Not available

16

-----

* BOLT, M6 x 22

$

$

Not available

17

-----

* NUT, M6

$

$

Not available

18

-----

* WASHER, Flat, M6

$

$

Not available

19

Briggs & Stratton 704905

OUTLET

$14.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 705633

WIRE

$5.49

$

In Stock, only 1 left!

0

21

Briggs & Stratton 705772

GUARD-RUBBER

$4.49

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 705771

GUARD-RUBBER

$4.49

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 705766

PANEL-CONTROL

$84.99

$

Usually ships in 2-12 days

0

24

-----

* BOLT, M6 x 12

$

$

Not available

25

Briggs & Stratton 704893

SWITCH

$5.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 704907

BREAKER-CIRCUIT

$9.99

$

In Stock, only 2 left!

0

27

Briggs & Stratton 704909

NUT-BREAKER

$3.49

$

In Stock, only 2 left!

0

28

-----

* SCREW, M4 x 14

$

$

Not available

29

-----

* NUT, Flange, M4

$

$

Not available

30

Briggs & Stratton 704903

OUTLET

$14.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 704910

BREAKER-CIRCUIT

$69.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 704880

DECAL

$6.49

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 704834

ALTERNATOR

$672.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 704836

CARRIER-BEARING

$79.99

$

Usually ships in 2-12 days

0

35

-----

* BOLT, M6 x 20

$

$

Not available

36

-----

* WASHER, Lock, M6

$

$

Not available

37

Briggs & Stratton 705764

TANK-FUEL

$290.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 704861

MOUNT-VIBRATION

$4.49

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 704862

WASHER

$2.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 704865

CAP-FUEL

$21.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 704879

DECAL

$11.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 310574GS

VALVE-FUEL

$10.99

$

In Stock, Qty 20+

0

43

Briggs & Stratton 704874

DECAL

$11.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 704922

DECAL

$10.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 704870

GAUGE-FUEL

$

$

Currently unavailable

46

-----

* SCREW, M5 x 10

$

$

Not available

47

Briggs & Stratton 704916

VALVE

$13.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 704877

DECAL

$10.99

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 703264

DECAL

$16.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 791745

KIT-FUEL HOSE

Note: (Cut to Fit)

$10.99

$

In Stock, Qty 20+

0

51

Briggs & Stratton 704863

FILTER-FUEL

$4.49

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 705767

DECAL

$11.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 705776

COVER-FRONT

$21.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 705777

COVER-BACK

$42.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 705775

COVER-SIDE

$21.99

$

Usually ships in 2-12 days

0

900

-----

** ENGINE

$

$

Not available
