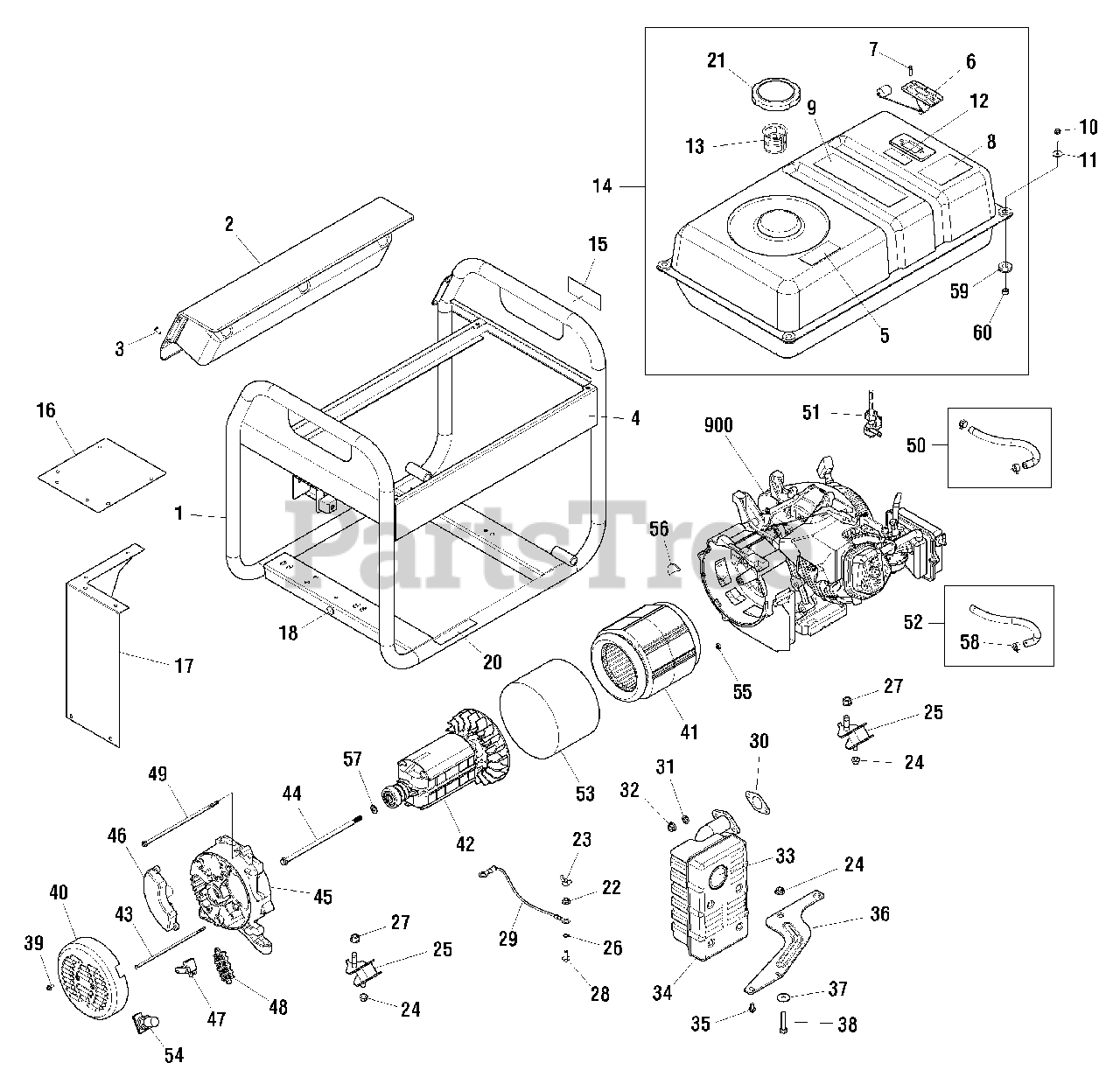

030621A-01 - Briggs & Stratton 5,000 Watt Portable Generator Main Unit (80017647) Parts Diagram

5,000 Watt Portable Generator

Main Unit (80017647) Parts Diagram

  • Title

1

Briggs & Stratton 705502

CRADLE

Note: (Includes Ref No. 4, 15, 18 & 20)

$713.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 709527

PANEL-CONTROL

$161.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 703804

SCREW

$4.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 705500

DECAL

$71.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 319065GS

DECAL

$6.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 704183

GAUGE-FUEL

$17.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 314440GS

SCREW

$4.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 202997GS

DECAL

$13.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 319064GS

DECAL

$7.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 703805

SCREW

$10.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 312005GS

WASHER

$3.99

$

In Stock, only 3 left!

0

12

Briggs & Stratton 703264

DECAL

$16.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 705504

FILTER-FUEL

$7.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 705520

TANK-FUEL

$341.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 704142

DECAL

$11.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 705489

HEATSHIELD

$56.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 705503

HEATSHIELD

$99.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 704331

DECAL

$10.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 319066GS

DECAL

$11.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 319587GS

CAP-FUEL

$19.99

$

In Stock, only 2 left!

0

22

-----

* NUT, Flange Lock, M16

$

$

Not available

23

Briggs & Stratton 87680GS

NUT

$7.49

$

Usually ships in 2-12 days

0

24

-----

* NUT, Flange Lock, M8

$

$

Not available

25

Briggs & Stratton 319451GS

MOUNT-VIBRATION

$13.99

$

In Stock, Qty 12

0

26

-----

* WASHER, Ext Shakeproof, M6

$

$

Not available

27

-----

* NUT, Flange Lock, M10

$

$

Not available

28

Briggs & Stratton 706166

SCREW

$5.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 706165

WIRE

$8.49

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 813085GS

GASKET
(Superseded to 797770)

$6.99

$

Usually ships in 2-12 days

0

31

-----

* WASHER, Lock, M8

$

$

Not available

32

-----

* NUT, Hex, M8 1.25

$

$

Not available

33

Briggs & Stratton 83083GS

SCREEN

$9.49

$

In Stock, only 2 left!

0

34

Briggs & Stratton 192569GS

MUFFLER

$179.99

$

In Stock, only 1 left!

0

35

Briggs & Stratton 706152

SCREW

$4.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 705501

BRACKET-MUFFLER

$18.99

$

Usually ships in 2-12 days

0

37

-----

* WASHER, Flat, M8

$

$

Not available

38

Briggs & Stratton 57821GS

HHCS-M8-1.25 x 40

$2.49

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 207824GS

SCREW

$4.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 313364GS

END COVER

$32.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 704140

STATOR

$471.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 704202

ROTOR

$341.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 317340GS

BOLT

$7.49

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 708710

BOLT

$9.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 708704

CARRIER-BEARING

$112.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 207840GS

VOLTAGE REGULATOR

$

$

Not available

47

Briggs & Stratton 207827GS

BRUSH ASSY

$

$

Not available

48

Briggs & Stratton 316945GS

TERMINAL BLOCK

$9.49

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 317338GS

BOLT

$14.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 791745

KIT-FUEL HOSE

Note: (Cut to Fit)

$10.99

$

In Stock, Qty 20+

0

51

Briggs & Stratton 209417GS

VALVE-FUEL

$8.99

$

In Stock, Qty 20+

0

52

Briggs & Stratton 315017GS

HOSE-VAPOR

Note: (Cut to Fit)

$28.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 317342GS

BAND-STATOR

$10.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 207879GS

BOOT

$6.99

$

In Stock, only 2 left!

0

55

Briggs & Stratton 207878GS

NUT

$7.49

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 706376

COVER-RUBBER

$3.99

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 207826GS

WASHER

$4.49

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 314955GS

CLAMP

$4.99

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 189134GS

GROMMET

$4.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 189137GS

SPACER

$4.49

$

In Stock, only 4 left!

0

900

-----

** ENGINE

$

$

Not available
