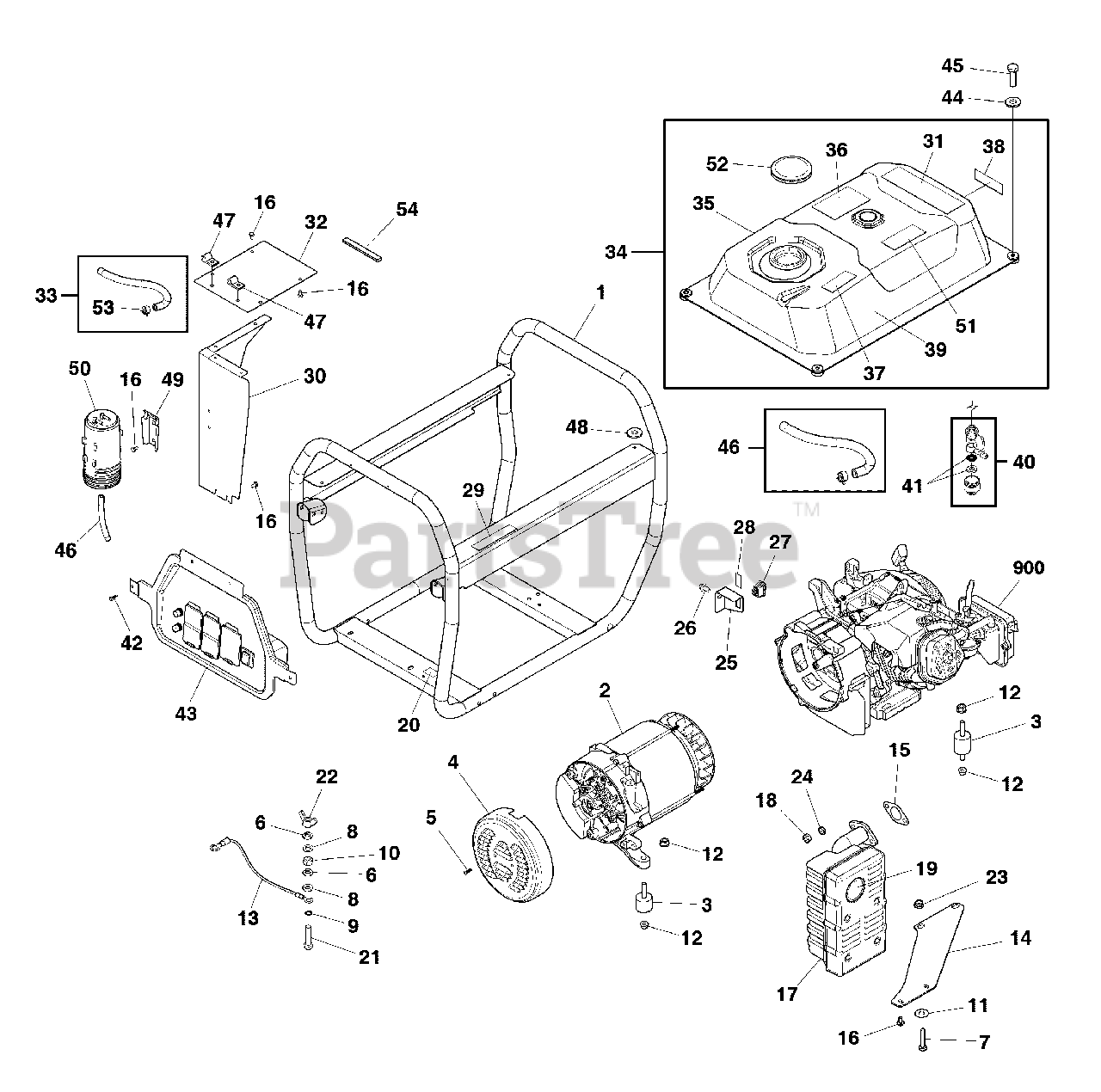

XP 6,250 Watt Portable Generator, CARB

Main Unit (80030038) Parts Diagram

  • Title

1

Briggs & Stratton 318787GS

CRADLE (Includes Item 20 & 29)

Note: (Includes Ref. Nos. 20 & 29)

$

$

Currently unavailable

2

ALTERNATOR

$

$

Not available

3

Briggs & Stratton 318779GS

MOUNT, Vibration

$13.99

$

In Stock, only 2 left!

0

4

Briggs & Stratton 312870GS

COVER, Rear Bearing

$13.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 312909GS

SCREW

$3.49

$

In Stock, only 2 left!

0

6

* WASHER, Lock, 1/4

$

$

Not available

7

* CAPSCREW, Hex Head, M10-1.5 x 45

$

$

Not available

8

* WASHER, Flat, M6

$

$

Not available

9

Briggs & Stratton 26850GS

WASHER, Ext. M6 - 1/4" Shakeproof

$2.99

$

Usually ships in 2-12 days

0

10

* NUT, Hex. M6-1.0

$

$

Not available

11

Briggs & Stratton 189295GS

Washer, .432 x 1 x .064
(Superseded to 22304GS)

$3.49

$

In Stock, Qty 20+

0

12

Briggs & Stratton 67989GS

NUT, M8 Flange Serrated

$3.49

$

In Stock, Qty 5

0

13

Briggs & Stratton 313481GS

WIRE

$6.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 312941GS

SUPPORT-MUFFLER

$23.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 797770

GASKET, Exhaust

$6.99

$

Usually ships in 2-12 days

0

16

* CAPSCREW, Hex Head, M6-1.0 x 10

$

$

Not available

17

Briggs & Stratton 192569GS

MUFFLER

$179.99

$

In Stock, only 1 left!

0

18

* NUT, Hex, M8 1.25

$

$

Not available

19

Briggs & Stratton 83083GS

SCREEN, Spark Arrest

$9.49

$

In Stock, only 2 left!

0

20

Briggs & Stratton B4986GS

DECAL, Ground, Green

$2.99

$

In Stock, only 1 left!

0

21

* CAPSCREW, Hex Head, M6-1.0 x 25

$

$

Not available

22

Briggs & Stratton 87680GS

NUT, M6 - 1.0 Wing

$7.49

$

Usually ships in 2-12 days

0

23

* NUT, Lock, M10

$

$

Not available

24

WASHER, 3/8" Lock

$

$

Not available

25

Briggs & Stratton 706827

BRACKET

$8.99

$

Usually ships in 2-12 days

0

26

* SCREW, Flange, M8-10

$

$

Not available

27

Briggs & Stratton 797340

Switch-Rocker

$16.99

$

In Stock, only 1 left!

0

28

Briggs & Stratton 319663GS

DECAL

$6.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 319066GS

DECAL

$11.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 318782GS

HEATSHIELD

$98.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 319064GS

DECAL

$7.49

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 318781GS

HEATSHIELD

$32.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 315017GS

HOSE, Vapor (cut to fit)

Note: (Cut to Fit)

$28.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 772180

TANK, FUEL

$251.99

$

In Stock, only 1 left!

0

35

Briggs & Stratton 319661GS

DECAL

$12.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 202997GS

DECAL, Warning, CO

$13.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 319065GS

DECAL

$6.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 197797GS

Decal, Fuel Shutoff, CCW

$8.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 319662GS

DECAL

$12.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 310574GS

KIT, Fuel Valve

$10.99

$

In Stock, Qty 20+

0

41

Briggs & Stratton 189759GS

KIT, Fuel Valve Repair
(Superseded to 310574GS)

$10.99

$

In Stock, Qty 20+

0

42

Briggs & Stratton 313075GS

SCREW

$2.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 709529

PANEL-CONTROL

$384.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 312976GS

WASHER

$4.49

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 704203

SCREW

$4.49

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 791745

KIT-FUEL, Hose (Cut To Fit)

Note: (Cut to Fit)

$10.99

$

In Stock, Qty 20+

0

47

Briggs & Stratton 315042GS

CLAMP

$2.49

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 193588GS

WASHER-FLAT

$5.99

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 318884GS

BRACKET

$13.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 318889GS

CARB CANISTER

$217.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 705545

DECAL

$11.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 319385GS

CAP, Fuel

$24.99

$

In Stock, only 1 left!

0

53

Briggs & Stratton 316173GS

CLAMP

$5.49

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 315041GS

EDGING

$9.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton 25P132-0001-G1

ENGINE

$

$

Currently unavailable
