030594-00 - Troy-Bilt 6,250 Watt Portable Generator Control Panel (319976) Parts Diagram

6,250 Watt Portable Generator

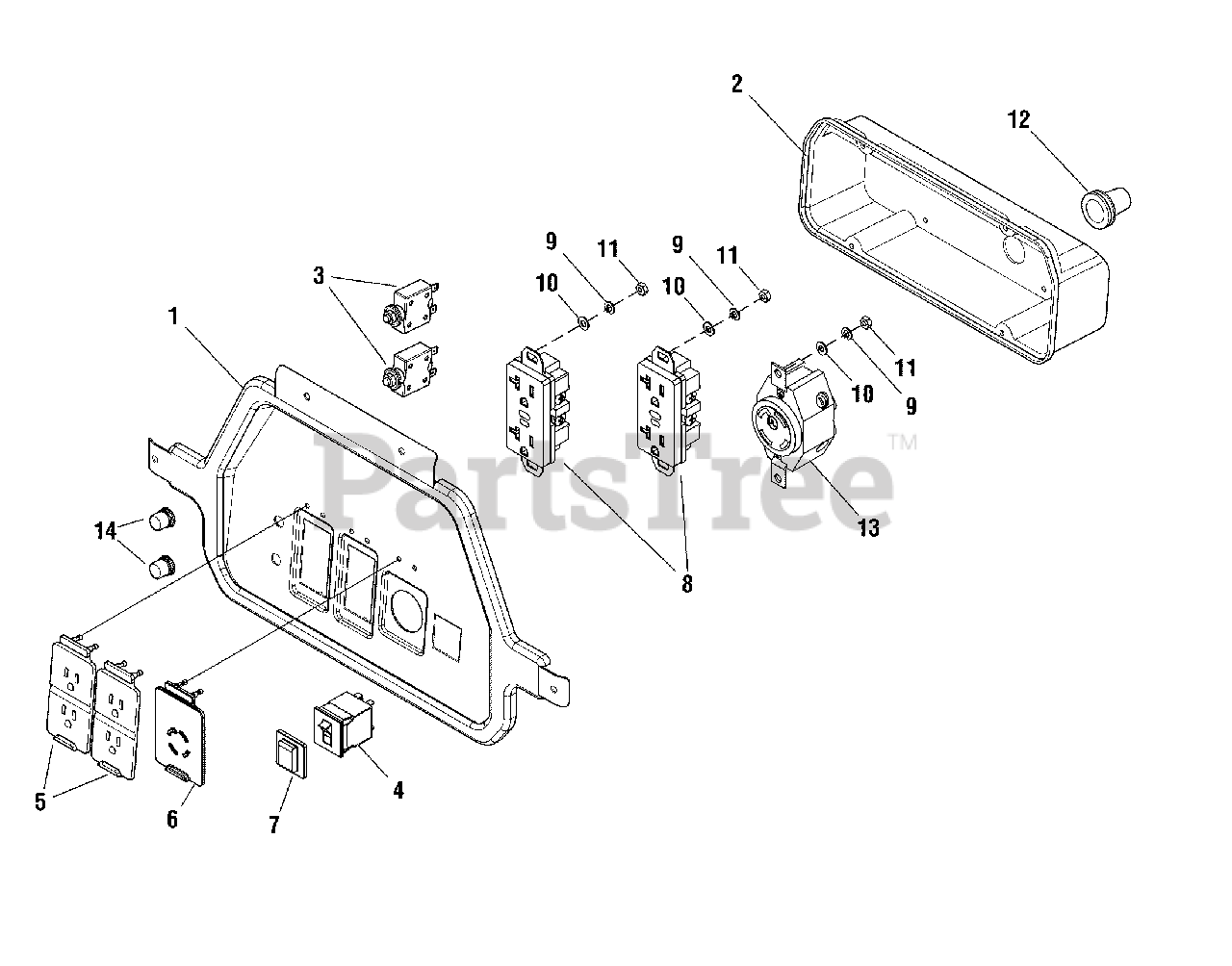

Control Panel (319976) Parts Diagram

  • Title

1

Briggs & Stratton 318777GS

PANEL-CONTROL

$136.99

$

In Stock, only 2 left!

0

2

Briggs & Stratton 319330GS

BOX-CONTROL PANEL

$29.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 209872GS

BREAKER-CIRCUIT

$9.99

$

In Stock, Qty 12

0

4

Briggs & Stratton 319540GS

BREAKER-CIRCUIT

$127.99

$

In Stock, only 3 left!

0

5

Briggs & Stratton 311497GS

COVER-OUTLET

$21.99

$

In Stock, only 1 left!

0

6

Briggs & Stratton 703898

COVER-OUTLET

$

$

Not available

7

Briggs & Stratton 191481GS

BOOT-CIRCUIT BREAKER

$11.99

$

In Stock, only 1 left!

0

8

Briggs & Stratton 312635GS

OUTLET, 120V 20A

$17.99

$

In Stock, Qty 8

0

9

-----

* WASHER, Lock, #8

$

$

Not available

10

-----

* WASHER, Flat, M4

$

$

Not available

11

-----

* NUT, Hex

$

$

Not available

12

Briggs & Stratton 312741GS

GROMMET

$4.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 312689GS

OUTLET, 120/240V TL30A

$18.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 312636GS

BOOT-CIRCUIT BREAKER

$5.49

$

In Stock, only 4 left!

0
