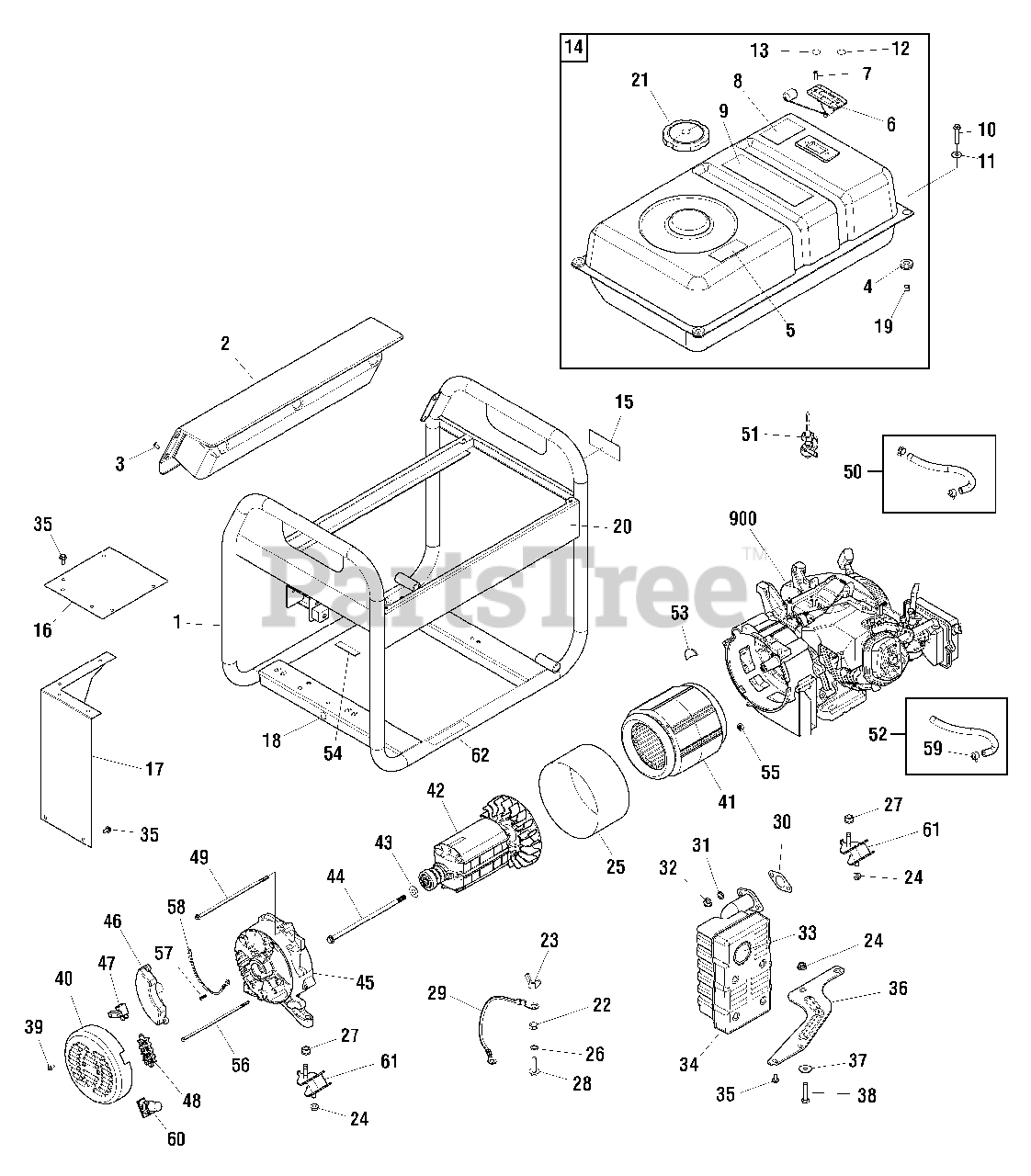

030592H-00 - Briggs & Stratton Storm 6,250 Watt Portable Generator Main Unit Parts Diagram

Storm 6,250 Watt Portable Generator

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 318988GS

CRADLE

$682.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 708694

PANEL-CONTROL

$484.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 703804

SCREW

$4.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 189134GS

GROMMET, Rubber

$4.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 319065GS

DECAL

$6.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 704183

GAUGE-FUEL

$17.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 314440GS

SCREW

$4.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 202997GS

DECAL, Warning, CO

$13.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 319064GS

DECAL

$7.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 703805

SCREW

$10.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 312005GS

WASHER

$3.99

$

In Stock, only 3 left!

0

12

Briggs & Stratton 313462GS

DECAL

$9.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 313461GS

DECAL

$10.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 704184

TANK-FUEL

$431.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 704142

DECAL

$11.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 319456GS

HEATSHIELD

$22.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 319455GS

HEATSHIELD

$90.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 704331

DECAL

$10.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 189137GS

SPACER

$4.49

$

In Stock, only 4 left!

0

20

Briggs & Stratton 704141

DECAL

$18.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 319587GS

CAP-FUEL

$19.99

$

In Stock, only 1 left!

0

22

Briggs & Stratton 52857GS

NUT-M8 FLANGE

$3.49

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 87680GS

NUT, M6 - 1.0 Wing

$7.49

$

Usually ships in 2-12 days

0

24

* NUT, Flange Lock, M8

$

$

Not available

25

Briggs & Stratton 704236

BAND-STATOR

$42.99

$

Usually ships in 2-12 days

0

26

* WASHER, Ext, Shakeproof, M6

$

$

Not available

27

* NUT, Flange Lock, M10

$

$

Not available

28

Briggs & Stratton 706166

SCREW

$5.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 706165

WIRE

$8.49

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 813085GS

GASKET
(Superseded to 797770)

$6.99

$

Usually ships in 2-12 days

0

31

* WASHER, Lock, M8

$

$

Not available

32

* NUT, Hex, M8 1.25

$

$

Not available

33

Briggs & Stratton 83083GS

SCREEN, Spark Arrest

$9.49

$

In Stock, only 2 left!

0

34

Briggs & Stratton 192569GS

MUFFLER

$179.99

$

In Stock, only 1 left!

0

35

Briggs & Stratton 706152

SCREW, M6 x 12

$4.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 319457GS

BRACKET, Muffler

$34.99

$

In Stock, only 1 left!

0

37

* WASHER, Flat, M8

$

$

Not available

38

* CAPSCREW, Hex Head, M8-1.25 x 40

$

$

Not available

39

Briggs & Stratton 207824GS

BOLT, M5 - 6 x 12

$4.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 313364GS

END COVER

$32.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 703572

STATOR

$591.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 703573

ROTOR

$464.99

$

In Stock, only 1 left!

0

43

Briggs & Stratton 207826GS

WASHER, Senci

$4.49

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 704235

BOLT

$11.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 207838GS

SUPPORT, Bearing

$106.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 207840GS

REGULATOR, Voltage

$

$

Not available

47

Briggs & Stratton 207827GS

BRUSH ASSEMBLY

$

$

Not available

48

Briggs & Stratton 316945GS

BLOCK-JUNCTION

$9.49

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 708693

BOLT

$5.49

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 791745

KIT-FUEL, Hose (Cut To Fit)

$10.99

$

In Stock, Qty 20+

0

51

Briggs & Stratton 209417GS

VALVE, Fuel

$8.99

$

In Stock, Qty 20+

0

52

Briggs & Stratton 315017GS

HOSE, Vapor (cut to fit)

$28.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 706376

COVER-RUBBER

$3.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 706535

PAD-RUBBER

$4.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 207878GS

NUT, M5

$7.49

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 705787

BOLT

$7.99

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 312911GS

SCREW

$2.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 706150

WIRE

$6.99

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 314955GS

CLAMP

$4.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 207879GS

BOOT, Rubber

$6.99

$

In Stock, only 2 left!

0

61

Briggs & Stratton 319451GS

MOUNT-VIBRATION

$13.99

$

In Stock, Qty 12

0

62

Briggs & Stratton 319066GS

DECAL

$11.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton 25T232-0009-G1

*ENGINE

$

$

Currently unavailable

--

Briggs & Stratton 206775GS

CORD, Power

Note: (Not Illustrated)

$186.99

$

Usually ships in 2-12 days

0
