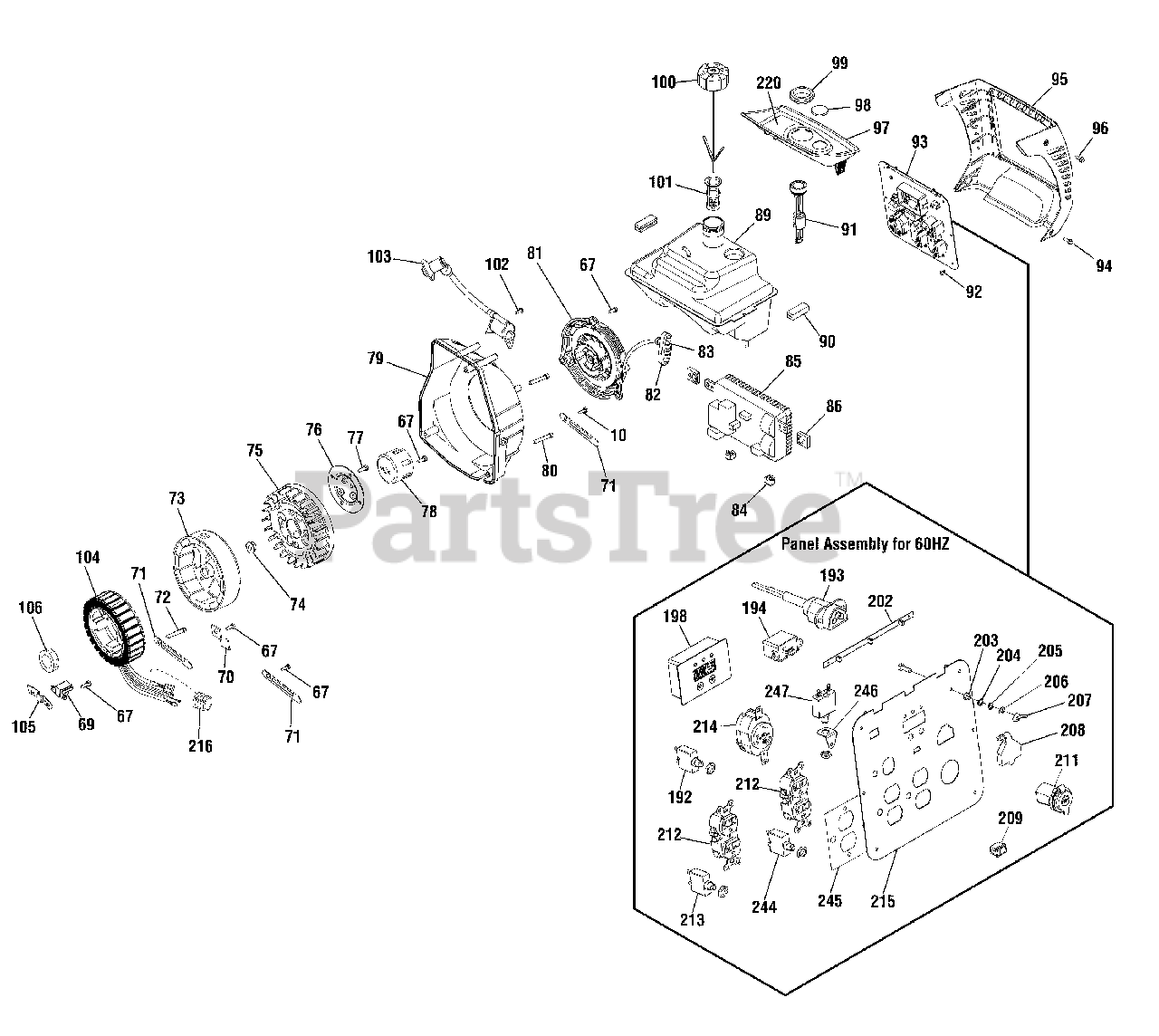

030545-00 - Briggs & Stratton 2,600 Watt Portable Generator, Inverter Alternator & Control Panel (800009370P1) Parts Diagram

2,600 Watt Portable Generator, Inverter

Alternator & Control Panel (800009370P1) Parts Diagram

  • Title

10

-----

SCREW

$

$

Not available

67

-----

BOLT-M6 x 12

$

$

Not available

69

Briggs & Stratton 705457

TRIGGER-IGNITION

$21.99

$

Usually ships in 2-12 days

0

70

-----

BRACKET

$

$

Not available

71

-----

BRACKET

$

$

Not available

72

-----

SCREW-M6 x 60

$

$

Not available

73

Briggs & Stratton 705458

ROTOR

$139.99

$

Usually ships in 2-12 days

0

74

-----

NUT, FLANGE M14

$

$

Not available

75

Briggs & Stratton 705459

FAN

$41.99

$

Usually ships in 2-12 days

0

76

-----

TERMINAL

$

$

Not available

77

-----

BOLT-M6 x 16

$

$

Not available

78

Briggs & Stratton 705466

CUP-FLYWHEEL

$14.99

$

Usually ships in 2-12 days

0

79

-----

COVER-FAN

$

$

Not available

80

-----

BOLT-M6 x 55

$

$

Not available

81

Briggs & Stratton 705465

STARTER-REWIND

$86.99

$

Usually ships in 2-12 days

0

82

-----

GRIP

$

$

Not available

83

-----

INSERT-GRIP

$

$

Not available

84

-----

MOUNT-VIBRATION

$

$

Not available

85

Briggs & Stratton 705462

INVERTER

$1104.99

$

Usually ships in 2-12 days

0

86

-----

MOUNT-VIBRATION

$

$

Not available

89

Briggs & Stratton 319939GS

TANK-FUEL

$222.99

$

Usually ships in 2-12 days

0

90

Briggs & Stratton 319941GS

MOUNT-VIBRATION

$7.49

$

Usually ships in 2-12 days

0

91

Briggs & Stratton 319933GS

GAUGE

$113.99

$

Usually ships in 2-12 days

0

92

-----

SCREW

$

$

Not available

93

Briggs & Stratton 319922GS

PANEL-CONTROL

$682.99

$

Usually ships in 2-12 days

0

94

-----

SCREW-M5 x 30

$

$

Not available

95

Briggs & Stratton 319927GS

COVER-PANEL

$87.99

$

Usually ships in 2-12 days

0

96

-----

SCREW-M6 x 56

$

$

Not available

97

Briggs & Stratton 319929GS

TRAY-FUEL

$45.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 706134

PLUG-SIGHT

$8.49

$

In Stock, only 1 left!

0

99

Briggs & Stratton 705490

GROMMET-FUEL

$14.99

$

Usually ships in 2-12 days

0

100

Briggs & Stratton 317134GS

CAP-FUEL

$28.99

$

Usually ships in 2-12 days

0

101

Briggs & Stratton 317441GS

FILTER-FILLER NECK

$7.49

$

Usually ships in 2-12 days

0

102

-----

SCREW

$

$

Not available

103

Briggs & Stratton 705463

COIL-IGNITION

$67.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 705464

STATOR

$378.99

$

Usually ships in 2-12 days

0

105

-----

BRACKET

$

$

Not available

106

-----

SEAL-OIL

$

$

Not available

192

Briggs & Stratton 311444GS

BREAKER-CIRCUIT

$80.99

$

Usually ships in 2-12 days

0

193

Briggs & Stratton 705488

PORT-PARALLEL

$46.99

$

Usually ships in 2-12 days

0

194

Briggs & Stratton 319946GS

PORT-USB

$56.99

$

Usually ships in 2-12 days

0

198

Briggs & Stratton 705482

MODULE

$207.99

$

Usually ships in 2-12 days

0

202

Briggs & Stratton 319945GS

PCB-LED

$35.99

$

Usually ships in 2-12 days

0

203

Briggs & Stratton 207743GS

NUT

$3.49

$

Usually ships in 2-12 days

0

204

Briggs & Stratton 91719GS

WASHER

$2.49

$

Usually ships in 2-12 days

0

205

Briggs & Stratton 207806GS

WASHER

$2.99

$

Usually ships in 2-12 days

0

206

Briggs & Stratton 207805GS

WASHER

$3.49

$

Usually ships in 2-12 days

0

207

Briggs & Stratton 187424GS

NUT-WING

$2.99

$

Usually ships in 2-12 days

0

208

Briggs & Stratton 705478

COVER-PORT

$8.99

$

In Stock, only 1 left!

0

209

Briggs & Stratton 311442GS

SWITCH

$24.99

$

Usually ships in 2-12 days

0

211

Briggs & Stratton 314531GS

OUTLET-DC

$18.99

$

Usually ships in 2-12 days

0

212

Briggs & Stratton 68759GS

OUTLET

$24.99

$

In Stock, Qty 9

0

213

Briggs & Stratton 705931

BREAKER-CIRCUIT

$41.99

$

Usually ships in 2-12 days

0

214

Briggs & Stratton 705932

OUTLET

$37.99

$

Usually ships in 2-12 days

0

215

Briggs & Stratton 705933

PANEL-CONTROL

$103.99

$

Usually ships in 2-12 days

0

216

-----

COVER-RUBBER

$

$

Not available

220

Briggs & Stratton 705934

DECAL

$14.99

$

Usually ships in 2-12 days

0

244

Briggs & Stratton 706175

BREAKER-CIRCUIT

$31.99

$

Usually ships in 2-12 days

0

245

Briggs & Stratton 706177

INSULATION

$18.99

$

Usually ships in 2-12 days

0

246

Briggs & Stratton 706176

BRACKET

$31.99

$

Usually ships in 2-12 days

0

247

Briggs & Stratton 706178

BREAKER-CIRCUIT

$34.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 187876GS

CABLE-BTTRY CHARGE

Note: (Not Illustrated)

$31.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 706357

FUNNEL

Note: (Not Illustrated)

$32.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 707499

ADAPTER-RV

Note: (Not Illustrated)

$56.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 100005GS

OIL
(Superseded to 100005)

Note: (Not Illustrated)

$8.99

$

In Stock, Qty 20+

0

--

Briggs & Stratton 703574

KIT-TOOL

Note: (Not Illustrated)

$13.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 706139

JET-MAIN, High Altitude, 5000 ft

Note: (Optional Accessory)

$9.49

$

Usually ships in 2-12 days

0
