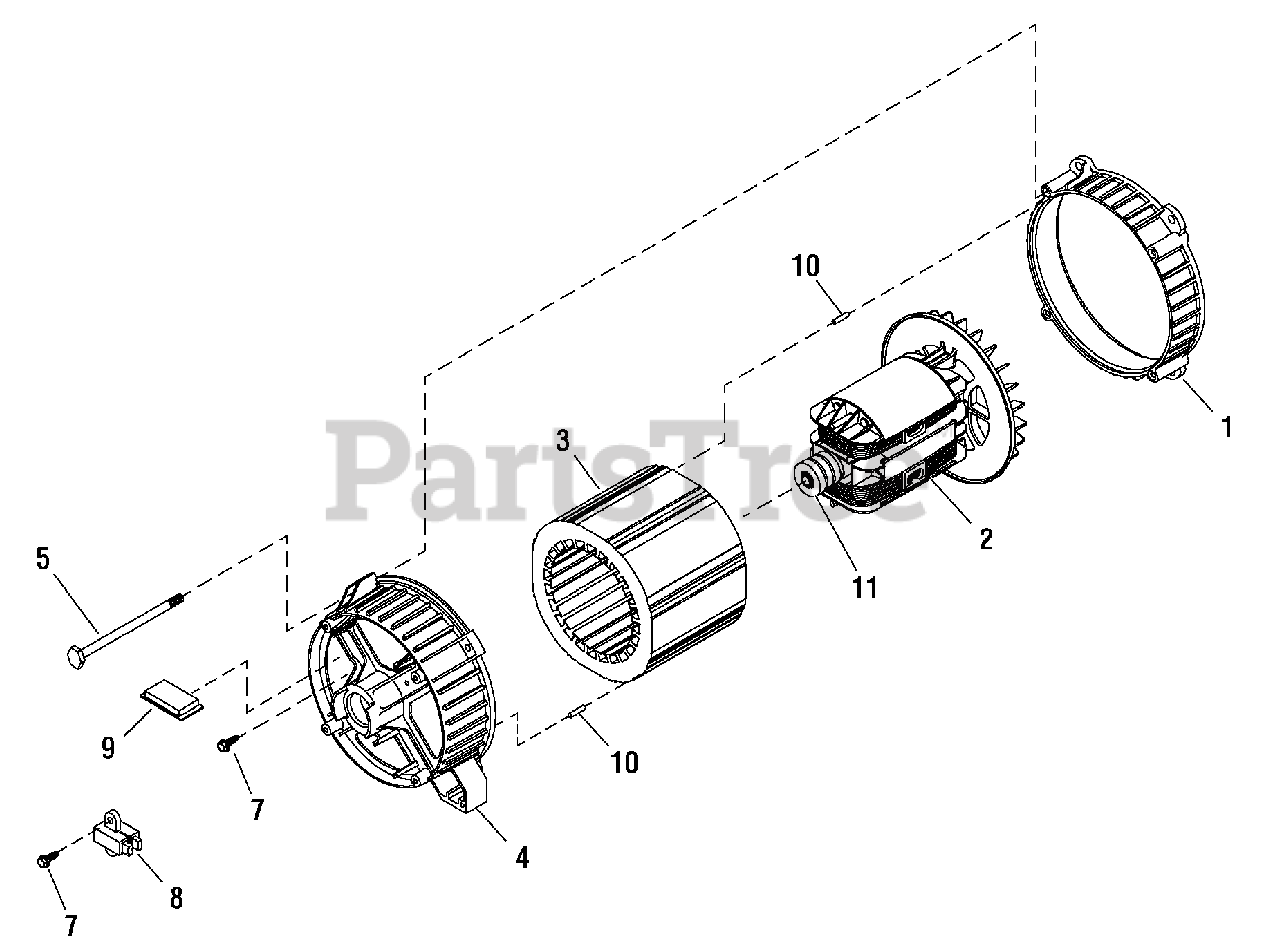

030536-0 - PowerBoss 8,000 Watt Portable Generator Alternator (314716) Parts Diagram

8,000 Watt Portable Generator

Alternator (314716) Parts Diagram

  • Title

1

Briggs & Stratton 209599GS

ADAPTER, Alternator

$35.99

$

In Stock, only 1 left!

0

2

Briggs & Stratton 195616GS

ROTOR

Note: (Includes Ref. No. 11)

$557.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 314538GS

STATOR

$620.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 193336GS

RBC, with O-Ring (p/n 189197)

$39.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 86308BGS

SCREW

$

$

Not available

7

Briggs & Stratton 66849GS

TAPTITE
(Superseded to 49815GS)

$3.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 66386GS

BRUSH ASSEMBLY

$23.99

$

In Stock, Qty 20+

0

9

Briggs & Stratton 205858GS

REGULATOR, Voltage

$107.99

$

In Stock, Qty 14

0

10

Briggs & Stratton 91551GS

PIN

$5.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 65791GS

BEARING

$34.99

$

Usually ships in 2-12 days

0
