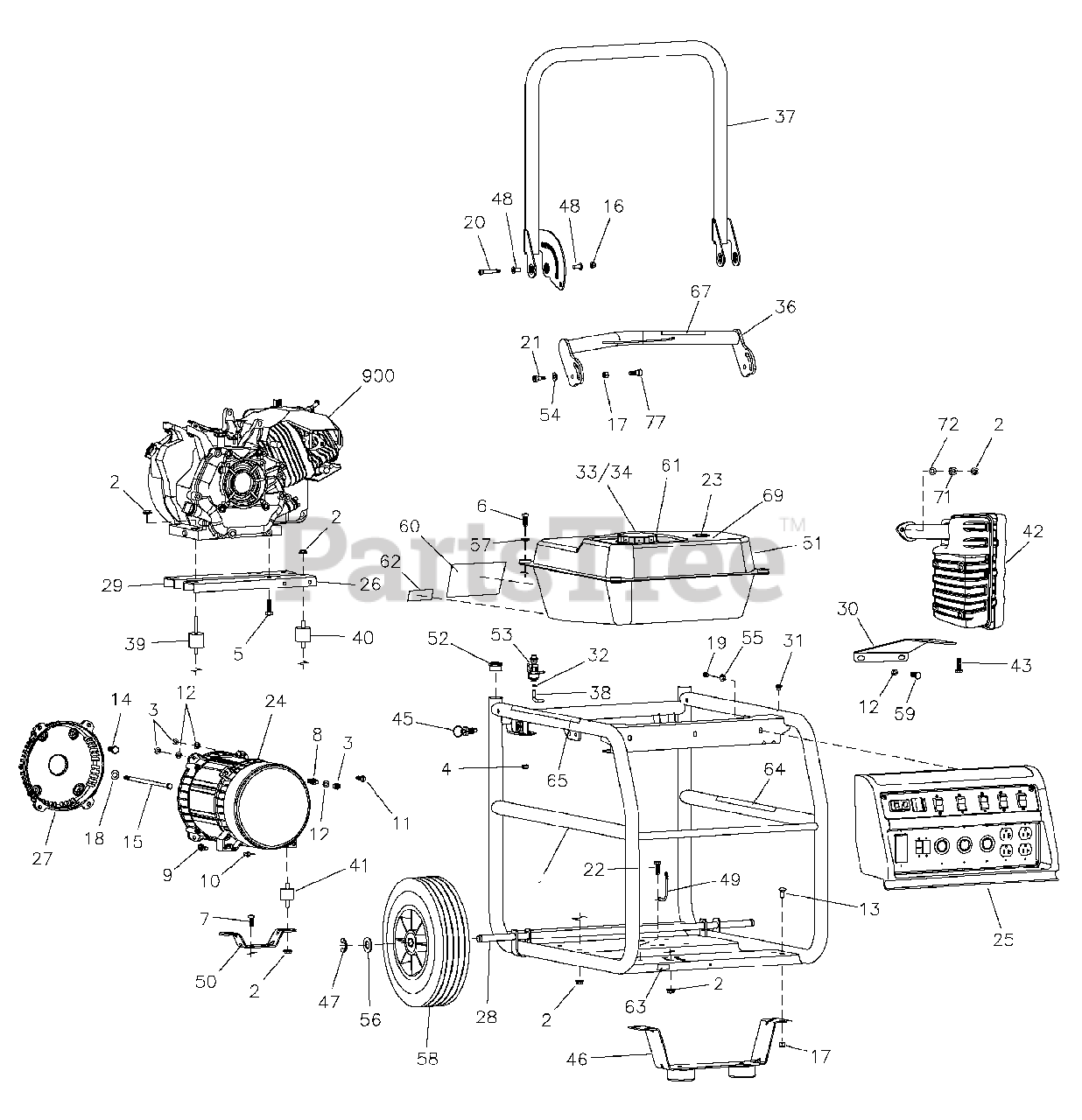

  • Title

1

Briggs & Stratton 205532AGS

CRADLE

Note: (Includes Ref. Nos. 63, 64 & 65)

$

$

Currently unavailable

2

Briggs & Stratton 67989GS

NUT

$3.49

$

In Stock, Qty 9

0

3

-----

* NUT, M8 - 1-1/4

$

$

Not available

4

Briggs & Stratton 52858GS

NUT, Lock, M8-1-1/4

$3.99

$

In Stock, only 2 left!

0

5

-----

* CAPSCREW, Hex Head, M8-1-1/4 x 40

$

$

Not available

6

-----

* CAPSCREW, Hex Head, M8-1-1/4 x 25

$

$

Not available

7

-----

* CAPSCREW, Hex Head, M8-1-1/4 x 20

$

$

Not available

8

Briggs & Stratton 187117GS

STUD

$3.49

$

Usually ships in 2-12 days

0

9

-----

* CAPSCREW, Hex Head, M6-1.0 x 40

$

$

Not available

10

Briggs & Stratton 87680GS

NUT

$7.49

$

Usually ships in 2-12 days

0

11

-----

* CAPSCREW, Hex Head, M8-1-1/4 x 25

$

$

Not available

12

-----

* LOCKWASHER, M8

$

$

Not available

13

Briggs & Stratton 206121GS

BOLT

$7.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 190274BGS

SCREW

$3.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 187365BGS

SCREW

$26.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 194005GS

NUT

$2.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 206140GS

NUT

$2.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 96796GS

WASHER

$3.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 206141GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 206157GS

SCREW

$5.49

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 206547GS

SCREW

$4.49

$

Usually ships in 2-12 days

0

22

Briggs & Stratton B2153GS

SCREW

$4.49

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 205441GS

GAUGE, Fuel

$17.99

$

Usually ships in 2-12 days

0

24

-----

ALTERNATOR

$

$

Not available

25

Briggs & Stratton 206160GS

PANEL

$

$

Not available

26

Briggs & Stratton 92731ZGS

SUPPORT, Engine

$29.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 190220GS

ADAPTER, Engine

$43.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 191267WGS

AXLE

$38.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 92531ZGS

SUPPORT, Engine

$25.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 193048GS

BRACKET

$28.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton B1797GS

CLIP

$3.99

$

In Stock, only 1 left!

0

32

Briggs & Stratton 189568GS

CLAMP

$5.49

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 189135GS

CAP, Fuel

$20.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 206892GS

STRAINER

$8.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 205549AGS

BAR, Lifting

$

$

Currently unavailable

37

Briggs & Stratton 205545AGS

HANDLE

$

$

Currently unavailable

38

Briggs & Stratton 791745

KIT, Fuel Line

Note: (Cut to Fit)

$10.99

$

In Stock, Qty 20+

0

39

Briggs & Stratton 194783GS

MOUNT, Vibration

$23.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 194789GS

MOUNT, Vibration

$15.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 85652GS

MOUNT, Vibration
(Superseded to 194153GS)

$11.99

$

In Stock, Qty 5

0

42

Briggs & Stratton 192569GS

MUFFLER

$179.99

$

In Stock, only 1 left!

0

43

Briggs & Stratton 66476GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 206132GS

PIN

$57.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 206317GS

SUPPORT, Leg

$100.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 191265GS

E-RING
(Superseded to 703977)

$4.99

$

In Stock, Qty 17

0

48

Briggs & Stratton 206134GS

SPACER

$9.49

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 195373GS

WIRE

$2.49

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 205544AGS

SUPPORT, Alternator

$

$

Currently unavailable

51

Briggs & Stratton 311869GS

FUEL TANK (Fuel Valve Sold Separately)

Note: (Includes Ref. Nos. 23, 33, 34, 60, 61, 62 & 69)

$176.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 189332GS

PLUG, Hole

$3.99

$

In Stock, only 2 left!

0

53

Briggs & Stratton 193272GS

VALVE, Fuel
(Superseded to 310574GS)

$10.99

$

In Stock, Qty 20+

0

54

-----

* WASHER, Flat, 3/8-M10

$

$

Not available

55

Briggs & Stratton 71693GS

WASHER

$2.99

$

Usually ships in 2-12 days

0

56

-----

* WASHER, 5/8

$

$

Not available

57

-----

* WASHER, Flat, 5/16-M8

$

$

Not available

58

Briggs & Stratton 206040GS

WHEEL

$93.99

$

In Stock, only 2 left!

0

59

-----

* CAPSCREW, Hex Head, 5/16-18 x 3/4

$

$

Not available

60

Briggs & Stratton 94480GS

DECAL

$17.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 205971GS

DECAL

$17.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 205972GS

DECAL

$8.99

$

Usually ships in 2-12 days

0

63

Briggs & Stratton 207107GS

DECAL

$10.99

$

Usually ships in 2-12 days

0

64

Briggs & Stratton 205970GS

DECAL

$20.99

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 206558GS

DECAL

$17.99

$

Usually ships in 2-12 days

0

67

Briggs & Stratton 206557GS

DECAL

$17.99

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 202997GS

DECAL

$13.99

$

Usually ships in 2-12 days

0

71

Briggs & Stratton 31579GS

SPACER

$19.99

$

Usually ships in 2-12 days

0

72

Briggs & Stratton 50190GS

WASHER

$3.99

$

In Stock, only 1 left!

0

77

Briggs & Stratton 206546GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

900

-----

** ENGINE

$

$

Not available

--

Briggs & Stratton 311866GS

MANUAL, Operator's

Note: (Not Illustrated)

$13.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton BB3061BGS

OIL (Qty 2 Required)
(Superseded to 100005)

Note: (Not Illustrated)

$8.99

$

In Stock, Qty 20+

0

--

Briggs & Stratton 83083GS

ARRESTOR, Spark

Note: (Not Illustrated)

$9.49

$

In Stock, only 2 left!

0

--

Briggs & Stratton 206183GS

KIT, Hardware

Note: (Not Illustrated)

$9.99

$

Usually ships in 2-12 days

0
