030478-00 - Troy-Bilt XP 7,000 Watt Portable Generator Control Panel (80005097) Parts Diagram

XP 7,000 Watt Portable Generator

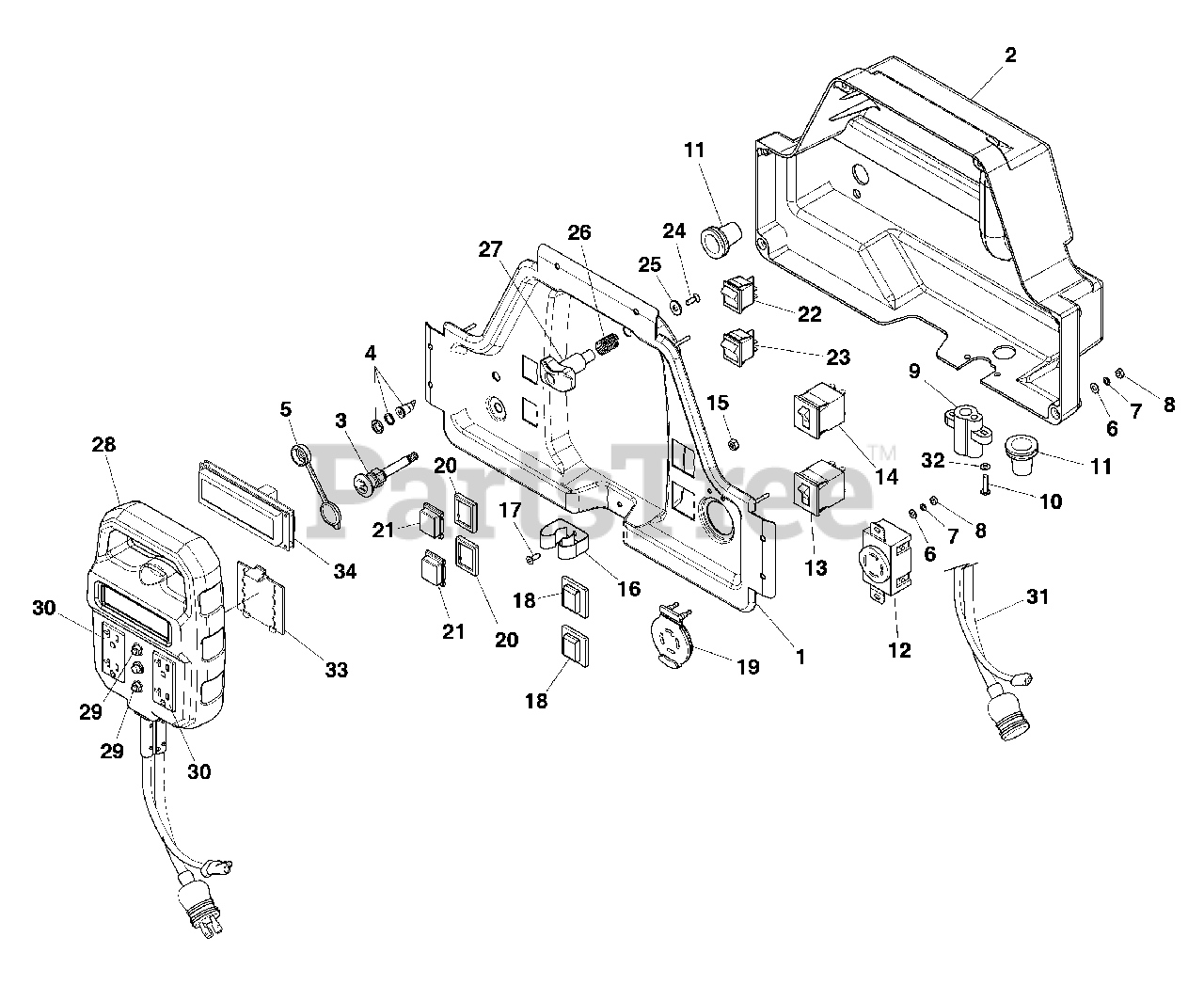

Control Panel (80005097) Parts Diagram

  • Title

1

Briggs & Stratton 312504GS

PANEL, Control

$70.99

$

In Stock, only 1 left!

0

2

Briggs & Stratton 311172GS

BOX, Control Panel

$55.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 312682GS

CAPBLE, Choke

$20.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 186168GS

JACK, Coaxial, DC
(Superseded to 208511GS)

$26.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 312687GS

BOOT-RUBBER JACK

$5.99

$

In Stock, Qty 9

0

6

* WASHER-M4

$

$

Not available

7

* WASHER-LOCK #8

$

$

Not available

8

* NUT-HEX M4-0.7

$

$

Not available

9

Briggs & Stratton 312691GS

STRAIN-RELIEF
(Superseded to 312550GS)

$106.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 75477GS

PPHMS, M5 - 0.8 x 20

$3.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 312741GS

GROMMET

$4.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 312689GS

OUTLET, 120/240V TL30A

$18.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 202029GS

BREAKER, Circuit, 20A

$166.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 202033GS

Breaker, Circuit, 30A, 2P

$104.99

$

Usually ships in 2-12 days

0

15

* NUT-HEX M6-1.0

$

$

Not available

16

Briggs & Stratton 311511GS

CLIP

$8.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 314473GS

SCREW

$4.49

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 191481GS

BOOT, Breaker Circuit

$11.99

$

In Stock, only 1 left!

0

19

Briggs & Stratton 311499GS

COVER, Outlet

$11.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 312686GS

PLATE

$10.99

$

In Stock, only 3 left!

0

21

Briggs & Stratton 312685GS

BOOT

$6.49

$

In Stock, Qty 13

0

22

Briggs & Stratton 312684GS

SWITCH, ON/OFF

$15.99

$

In Stock, only 2 left!

0

23

Briggs & Stratton 312683GS

SWITCH

$16.99

$

In Stock, Qty 20+

0

24

Briggs & Stratton 197486GS

SCREW, M5-0.8 X 8

$3.99

$

Usually ships in 2-12 days

0

25

* WASHER-M6-1/4

$

$

Not available

26

Briggs & Stratton 312584GS

SPRING

$4.49

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 311512GS

KNOB

$6.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 706184

EXTENDA-A-PANEL

$794.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 209872GS

BREAKER, Circuit, 20A

$9.99

$

In Stock, Qty 12

0

30

Briggs & Stratton 313387GS

OUTLET, 120V 20A

$99.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 312550GS

CORDSET

$106.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 51713GS

WASHER, M5

$2.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 312620GS

COVER-BACK

$5.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 707603

ASSY-LCD/PCB

$232.99

$

Usually ships in 2-12 days

0
