030477-01 - Troy-Bilt XP 7,000 Watt Portable Generator Control Panel (312430) Parts Diagram

XP 7,000 Watt Portable Generator

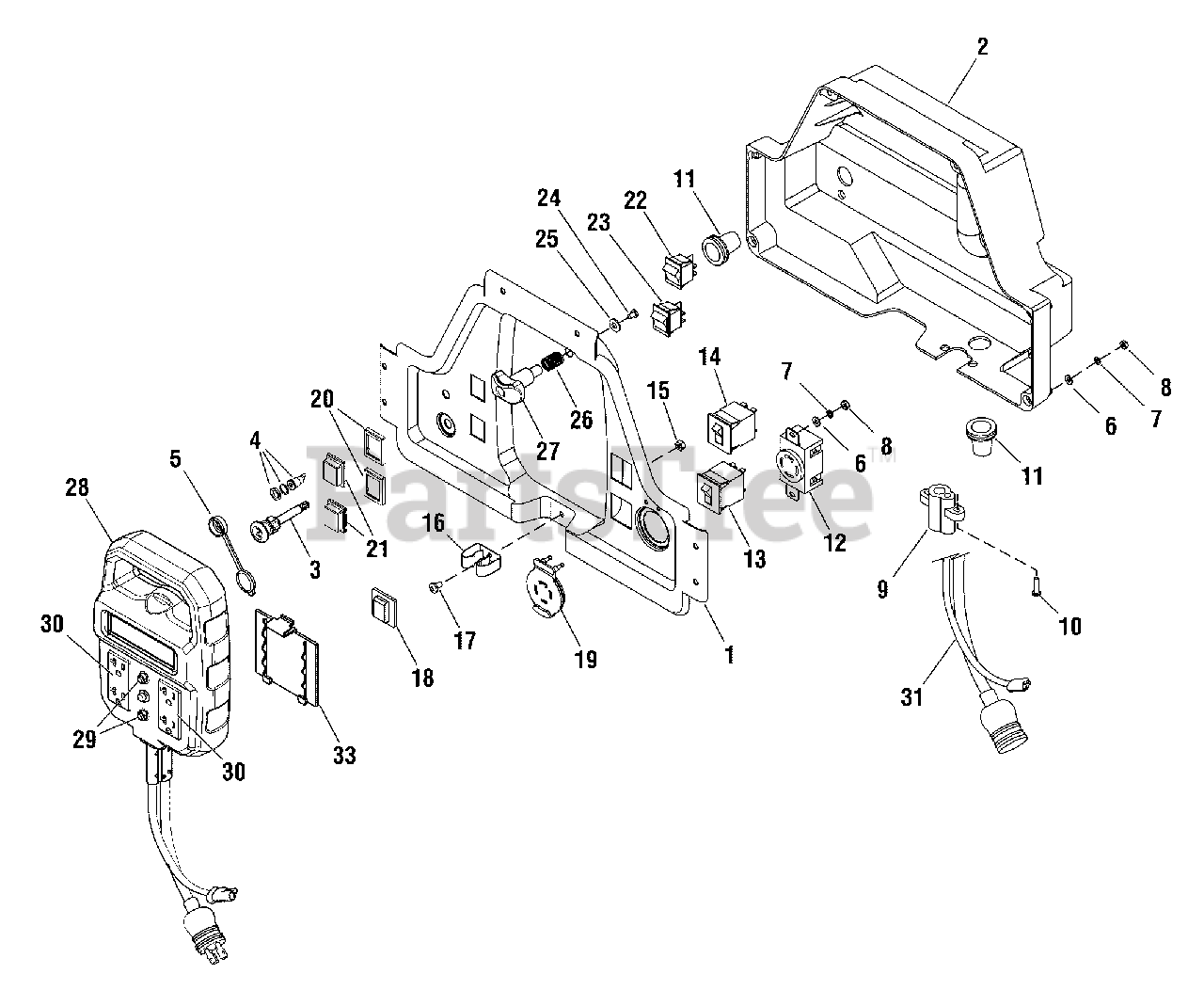

Control Panel (312430) Parts Diagram

  • Title

1

Briggs & Stratton 312504GS

PANEL, Control

$70.99

$

In Stock, only 1 left!

0

2

Briggs & Stratton 311172GS

BOX, Control Panel

$55.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 312682GS

CAPBLE, Choke

$20.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 186168GS

JACK, Coaxial, DC
(Superseded to 208511GS)

$26.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 312687GS

BOOT

$5.99

$

In Stock, Qty 9

0

6

* WASHER, M4

$

$

Not available

7

* WASHER, Lock, #8

$

$

Not available

8

* NUT, Hex, M4 - 0.7

$

$

Not available

9

STRAIN, Relief

Note: (Not a serviceable part. Order Ref. No. 31)

$

$

Not available

10

Briggs & Stratton 75477GS

SCREW

$3.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 312741GS

GROMMET

$4.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 312689GS

OUTLET, 120/240V 30A

$18.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 202029GS

BREAKER, Circuit, 20A

$166.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 202033GS

BREAKER, Circuit, 30A

$104.99

$

Usually ships in 2-12 days

0

15

* NUT, Hex, M6-1.0

$

$

Not available

16

Briggs & Stratton 311511GS

CLIP

$8.49

$

Usually ships in 2-12 days

0

17

* SCREW, M6-1 x 10

$

$

Not available

18

Briggs & Stratton 191481GS

BOOT, Breaker Circuit

$11.99

$

In Stock, only 1 left!

0

19

Briggs & Stratton 311499GS

COVER, Outlet

$11.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 312686GS

PLATE

$10.99

$

In Stock, only 3 left!

0

21

Briggs & Stratton 312685GS

BOOT

$6.49

$

In Stock, Qty 13

0

22

Briggs & Stratton 312684GS

SWITCH

$15.99

$

In Stock, only 2 left!

0

23

Briggs & Stratton 312683GS

SWITCH

$16.99

$

In Stock, Qty 20+

0

24

Briggs & Stratton 197486GS

SCREW

$3.99

$

Usually ships in 2-12 days

0

25

* WASHER, M6-1/4

$

$

Not available

26

Briggs & Stratton 312584GS

SPRING

$4.49

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 311512GS

KNOB

$6.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 311547GS

EXTENDA-A-PANEL

$

$

Not available

29

Briggs & Stratton 209872GS

BREAKER, Circuit, 20A

$9.99

$

In Stock, Qty 12

0

30

Briggs & Stratton 312635GS

OUTLET, 120V 20A

$17.99

$

In Stock, Qty 8

0

31

Briggs & Stratton 312550GS

CORDSET

Note: (Includes Ref. No. 9)

$106.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 312620GS

COVER-BACK

$5.99

$

Usually ships in 2-12 days

0
