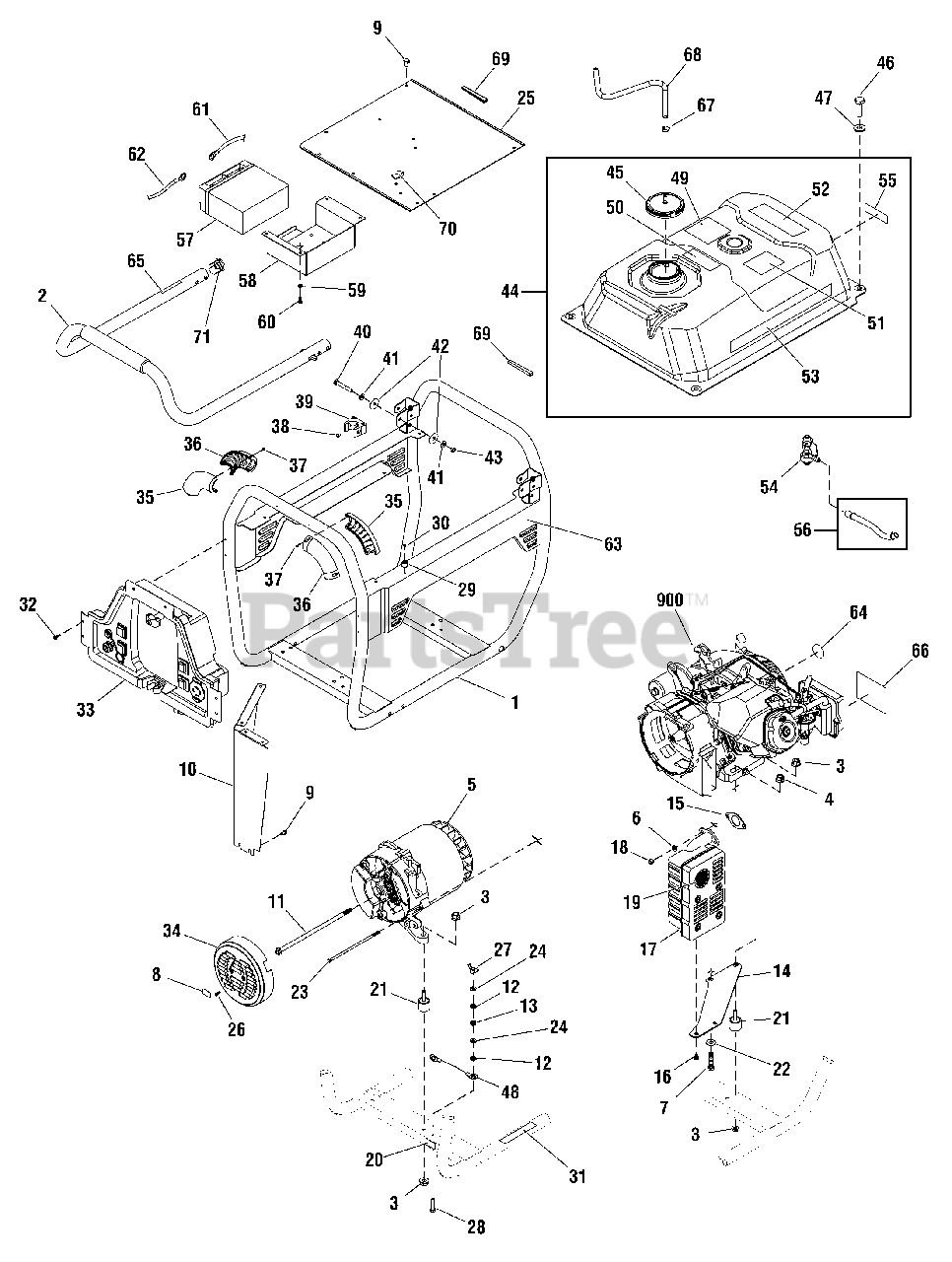

030477-01 - Troy-Bilt 7,000 Watt Portable Generator Main Unit (315111) Parts Diagram

7,000 Watt Portable Generator

Main Unit (315111) Parts Diagram

  • Title

1

Briggs & Stratton 311202BWGS

CRADLE

$397.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 313763GS

HANDLE

$142.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 67989GS

NUT

$3.49

$

In Stock, Qty 5

0

4

Briggs & Stratton 52859GS

NUT

$2.49

$

Usually ships in 2-12 days

0

5

-----

ALTERNATOR

$

$

Not available

6

-----

* WASHER, Lock, 3/8

$

$

Not available

7

-----

* CAPSCREW, Hex Head, M10 - 1-1/2 x 45

$

$

Not available

8

Briggs & Stratton 208452GS

DECAL

$8.99

$

Usually ships in 2-12 days

0

9

-----

* CAPSCREW, Hex Head, M6-1 x 10

$

$

Not available

10

Briggs & Stratton 312725GS

HEATSHIELD

$58.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 312912GS

BOLT

$7.99

$

In Stock, only 1 left!

0

12

-----

* WASHER, Lock, 1/4

$

$

Not available

13

-----

* NUT, M6-1

$

$

Not available

14

Briggs & Stratton 312941GS

BRACKET

$23.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 794818

GASKET, Exhaust

$8.49

$

In Stock, only 3 left!

0

16

-----

* CAPSCREW, Hex Head, M6-1 X 12

$

$

Not available

17

Briggs & Stratton 192569GS

MUFFLER

$179.99

$

In Stock, only 1 left!

0

18

-----

* NUT, M8 - 1-1/4

$

$

Not available

19

Briggs & Stratton 83083GS

SCREEN

$9.49

$

In Stock, only 2 left!

0

20

Briggs & Stratton B4986GS

DECAL

$2.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 85651GS

MOUNT, Vibration

$24.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 189295GS

WASHER
(Superseded to 22304GS)

$3.49

$

In Stock, Qty 20+

0

23

Briggs & Stratton 312915GS

BOLT

$5.49

$

In Stock, only 1 left!

0

24

-----

* WASHER, M6

$

$

Not available

25

Briggs & Stratton 312731GS

HEATSHIELD

$56.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 312909GS

SCREW

$3.49

$

In Stock, only 2 left!

0

27

Briggs & Stratton 87680GS

NUT

$7.49

$

Usually ships in 2-12 days

0

28

-----

* CAPSCREW, Hex Head, M6-1 x 25

$

$

Not available

29

Briggs & Stratton 313086GS

BUMPER

$5.49

$

In Stock, only 2 left!

0

30

Briggs & Stratton 313077GS

SCREW

$2.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 196830GS

DECAL

$15.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 313075GS

SCREW

$2.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 312509GS

PANEL, Control

$431.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 312870GS

COVER, Rear Bearing

$13.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 311213GS

GRIP

$9.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 311214GS

GRIP

$9.49

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 313076GS

SCREW

$2.49

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 197486GS

SCREW

$3.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 312402GS

BRACKET

$5.49

$

In Stock, only 2 left!

0

40

Briggs & Stratton 312943GS

BOLT

$4.49

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 312944GS

WASHER

$2.49

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 187104GS

WASHER

$4.49

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 312945GS

NUT

$3.49

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 315006GS

TANK, Fuel

$

$

Not available

45

Briggs & Stratton 314951GS

CAP, Fuel

$

$

Not available

46

-----

* CAPSCREW, Hex Head, M6-1 x 20

$

$

Not available

47

-----

* WASHER, Flat, 1/4

$

$

Not available

48

Briggs & Stratton 313481GS

WIRE

$6.49

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 312726GS

DECAL

$10.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 312728GS

DECAL

$10.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 202997GS

DECAL

$13.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 194799GS

DECAL

$11.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 312717GS

DECAL

$10.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 310574GS

VALVE, Fuel

$10.99

$

In Stock, Qty 20+

0

55

Briggs & Stratton 197797GS

DECAL

$8.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 791745

KIT, Fuel Hose

Note: (Cut to Fit)

$10.99

$

In Stock, Qty 20+

0

57

Briggs & Stratton 313282GS

BATTERY

$225.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 195680GS

TRAY, Battery

$62.99

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 70005GS

WASHER

$2.99

$

In Stock, only 1 left!

0

60

Briggs & Stratton 43116GS

BOLT

$3.49

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 313479GS

WIRE

$9.49

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 313480GS

WIRE

$14.99

$

In Stock, only 1 left!

0

63

Briggs & Stratton 312459GS

DECAL

$12.99

$

Usually ships in 2-12 days

0

64

Briggs & Stratton 200658GS

DECAL

$8.99

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 313159GS

DECAL

$8.49

$

Usually ships in 2-12 days

0

66

Briggs & Stratton 312884GS

DECAL

$8.49

$

Usually ships in 2-12 days

0

67

Briggs & Stratton 314955GS

CLAMP

$4.99

$

Usually ships in 2-12 days

0

68

Briggs & Stratton 315017GS

HOSE

$28.99

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 315041GS

EDGING

$9.99

$

Usually ships in 2-12 days

0

70

Briggs & Stratton 315042GS

CLAMP

$2.49

$

Usually ships in 2-12 days

0

900

-----

** ENGINE

$

$

Not available

--

Briggs & Stratton 312417GS

MANUAL, Operator's

Note: (Not Illustrated)

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 313591GS

OIL

Note: (Not Illustrated)

$

$

Currently unavailable

Briggs & Stratton 316711GS

FUSE

Note: (Not Illustrated)

$13.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton B4177GS

CHARGER, Battery
(Superseded to 705927)

Note: (Not Illustrated)

$38.99

$

In Stock, Qty 5

0

--

Briggs & Stratton 311548GS

CORDSET

Note: (Not Illustrated)

$302.99

$

Usually ships in 2-12 days

0
