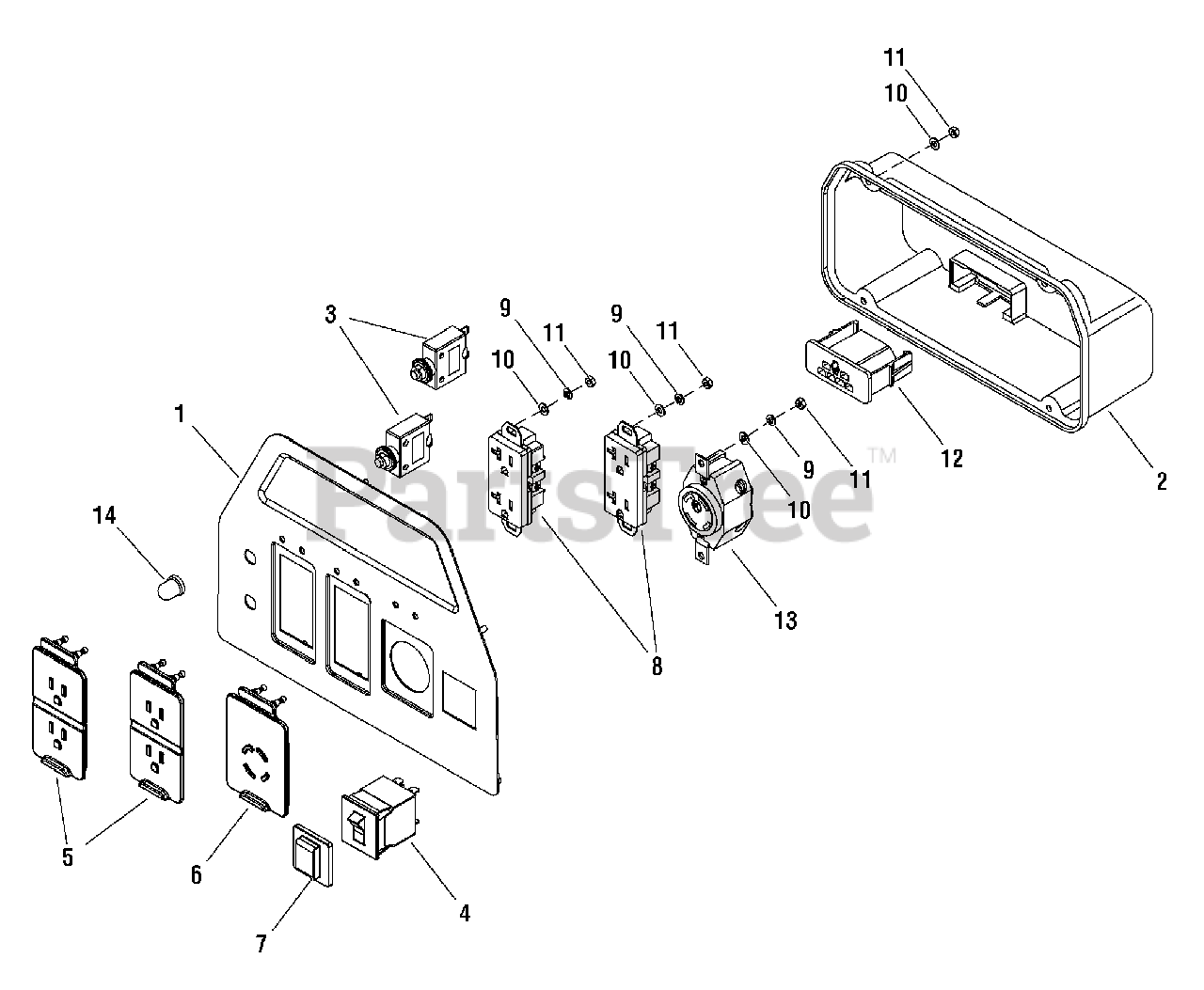

030475-01 - Troy-Bilt 6,000 Watt Portable Generator Control Panel (312411) Parts Diagram

6,000 Watt Portable Generator

Control Panel (312411) Parts Diagram

  • Title

1

Briggs & Stratton 312551GS

PANEL, Control
(Superseded to 313388GS)

$

$

Not available

2

Briggs & Stratton 311509GS

BOX, Control Panel

$80.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 209872GS

BREAKER, Circuit, 20A

$10.99

$

In Stock, Qty 6

0

4

Briggs & Stratton 209677GS

BREAKER, Circuit, 25A
(Superseded to 202031GS)

$115.99

$

In Stock, only 1 left!

0

5

Briggs & Stratton 311497GS

COVER, Outlet

$22.99

$

In Stock, only 1 left!

0

6

Briggs & Stratton 311498GS

COVER, Outlet

$25.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 191481GS

BOOT, Circuit Breaker

$11.99

$

In Stock, only 4 left!

0

8

Briggs & Stratton 312635GS

OUTLET, 120V 20A

$18.99

$

In Stock, only 4 left!

0

9

-----

* WASHER, Lock, #8

$

$

Not available

10

-----

* WASHER, Flat, M4

$

$

Not available

11

-----

* NUT, Hex

$

$

Not available

12

Briggs & Stratton 201678GS

CONNECTOR, 6 Pin

$10.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 204075GS

OUTLET, 120/240V TL30A
(Superseded to 43437GS)

$

$

Not available

14

Briggs & Stratton 312636GS

BOOT, Circuit Breaker

$5.99

$

In Stock, Qty 5

0
