030475-0 - Troy-Bilt 6,000 Watt Portable Generator Main Unit (312409) Parts Diagram

6,000 Watt Portable Generator

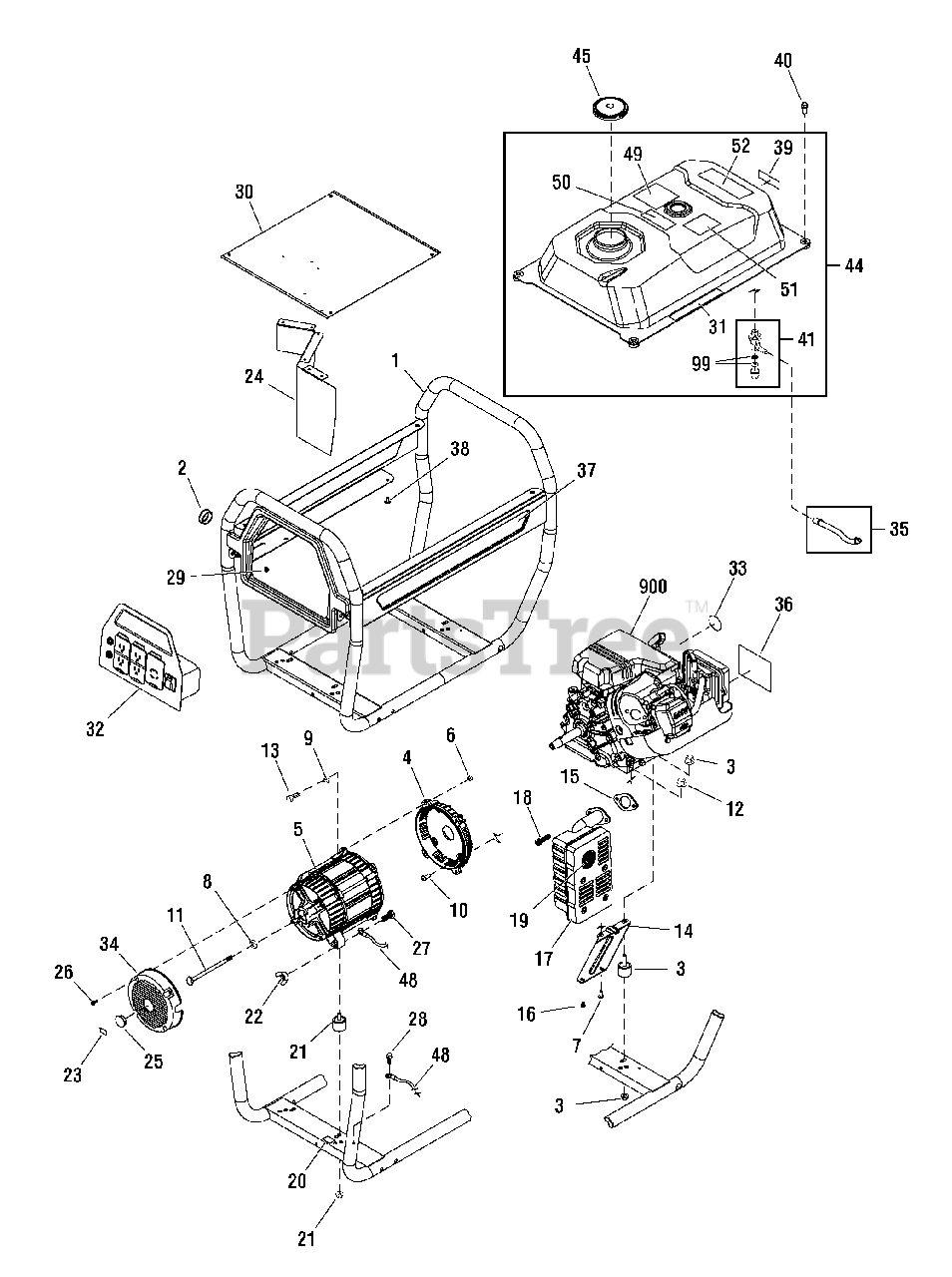

Main Unit (312409) Parts Diagram

  • Title

1

Briggs & Stratton 311522BVGS

CRADLE
(Superseded to 316306BVGS)

Note: (Includes Ref. No. 20)

$682.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 186173GS

BUSHING

$3.49

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 195478GS

MOUNT, Vibration

$26.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 190220GS

ADAPTER, Engine

$43.99

$

Usually ships in 2-12 days

0

5

-----

ALTERNATOR

$

$

Not available

6

-----

* NUT, Hex, M8 - 1.25

$

$

Not available

7

Briggs & Stratton 195398GS

SCREW

$2.99

$

In Stock, only 1 left!

0

8

Briggs & Stratton 96796GS

WASHER

$3.49

$

Usually ships in 2-12 days

0

9

-----

* WASHER, Lock, 5/16 - M8

$

$

Not available

10

-----

* CAPSCREW, Trilobular, 3/8-16 x 7/8 Lg.

$

$

Not available

11

Briggs & Stratton 187365FGS

CAPSCREW, Hex Head, 5/16-24 x 7.44

$17.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 67989GS

NUT

$3.49

$

In Stock, Qty 5

0

13

-----

* CAPSCREW, Hex Head, M8 - 1.25 x 25

$

$

Not available

14

Briggs & Stratton 189009GS

BRACKET

$23.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 695398

GASKET

$7.99

$

In Stock, Qty 7

0

16

-----

* CAPSCREW, Hex Head, M6 - 1.0 x 12 w/LW

$

$

Not available

17

Briggs & Stratton 189008GS

MUFFLER

$

$

Not available

18

-----

* CAPSCREW, Socket Head, M8 1.25 x 20

$

$

Not available

19

Briggs & Stratton 83083GS

SCREEN

$9.49

$

In Stock, only 2 left!

0

20

Briggs & Stratton B4986GS

DECAL

$2.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 194153GS

MOUNT, Vibration

$11.99

$

In Stock, Qty 5

0

22

Briggs & Stratton 87680GS

NUT

$7.49

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 208452GS

DECAL

$8.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 311877GS

HEATSHIELD

$58.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 191190GS

CAP

$3.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 74908GS

TAPTITE

$2.99

$

Usually ships in 2-12 days

0

27

-----

* CAPSCREW, Hex Head, M6 - 1.0 x 40

$

$

Not available

28

Briggs & Stratton B2153GS

SCREW

$4.49

$

Usually ships in 2-12 days

0

29

-----

* NUT, Palnut, M4

$

$

Not available

30

Briggs & Stratton 311876GS

HEATSHIELD

$58.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 196830GS

DECAL

$15.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 312508GS

PANEL, Control

$

$

Not available

33

Briggs & Stratton 276928

DECAL

$

$

Currently unavailable

34

Briggs & Stratton 195422GS

COVER, Rear Bearing

$13.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 791745

KIT, Fuel Hose

Note: (Cut to Fit)

$10.99

$

In Stock, Qty 20+

0

36

Briggs & Stratton 208451GS

DECAL

$12.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 312458GS

DECAL

$10.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 192376GS

SCREW

$3.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 197798GS

DECAL

$9.49

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 197955GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 310574GS

KIT, Fuel Valve

$10.99

$

In Stock, Qty 20+

0

44

Briggs & Stratton 311811GS

TANK, Fuel

$

$

Not available

45

Briggs & Stratton 311513GS

CAP, Fuel

$21.99

$

In Stock, only 1 left!

0

48

Briggs & Stratton 195373GS

WIRE

$2.49

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 312727GS

DECAL

$10.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 312728GS

DECAL

$10.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 202997GS

DECAL

$13.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 194799GS

DECAL

$11.99

$

Usually ships in 2-12 days

0

99

Briggs & Stratton 189759GS

KIT, Fuel Valve Repair
(Superseded to 310574GS)

$10.99

$

In Stock, Qty 20+

0

900

-----

** ENGINE

$

$

Not available

--

Briggs & Stratton 312403GS

MANUAL, Operator's

$14.99

$

Usually ships in 2-12 days

0
