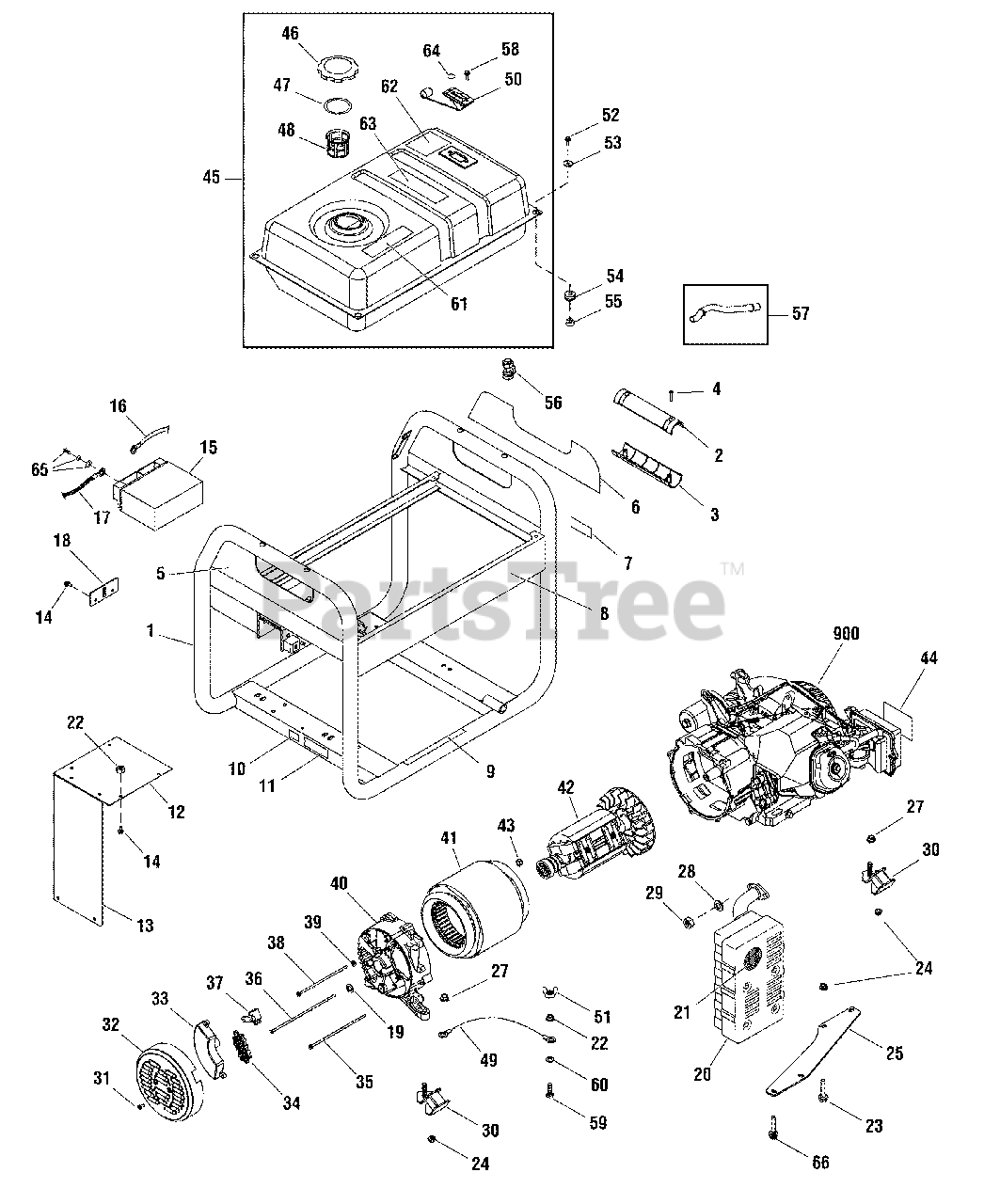

030471-00 - Briggs & Stratton 8,000 Watt Portable Generator Main Unit (311995) Parts Diagram

8,000 Watt Portable Generator

Main Unit (311995) Parts Diagram

  • Title

1

Briggs & Stratton 312007GS

CRADLE

$608.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 312008GS

GRIP-HANDLE

$16.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 312009GS

GRIP-HANDLE

$18.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 75477GS

SCREW

$3.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 313235GS

DECAL

$15.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 313236GS

DECAL

$15.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 197798GS

DECAL

$9.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 313234GS

DECAL

$18.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 200310GS

DECAL

$15.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton B4986GS

DECAL

$2.99

$

In Stock, only 1 left!

0

11

Briggs & Stratton 200311GS

DECAL

$8.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 312020GS

HEATSHIELD

$36.99

$

In Stock, only 1 left!

0

13

Briggs & Stratton 312019GS

HEATSHIELD

$60.99

$

In Stock, only 1 left!

0

14

Briggs & Stratton 209775GS

BOLT

$4.99

$

In Stock, only 1 left!

0

15

Briggs & Stratton 193043GS

BATTERY

$137.99

$

In Stock, only 3 left!

0

16

Briggs & Stratton 312014GS

CABLE-BTTRY, RED

$22.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 312026GS

CABLE-BTTRY, BLACK

$21.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 311983GS

PLATE-BATTERY

$9.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 312045GS

WASHER

$3.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 192569GS

MUFFLER

$179.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 83083GS

SCREEN

$9.49

$

In Stock, only 2 left!

0

22

Briggs & Stratton 197861GS

NUT

$3.49

$

In Stock, only 1 left!

0

23

Briggs & Stratton 311987GS

SCREW

$4.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 67989GS

NUT

$3.49

$

In Stock, Qty 9

0

25

Briggs & Stratton 311985GS

SUPPORT-MUFFLER

$18.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 193747GS

NUT

$4.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 22129GS

WASHER

$2.99

$

In Stock, only 2 left!

0

29

Briggs & Stratton 45771GS

NUT

$6.49

$

In Stock, only 2 left!

0

30

Briggs & Stratton 312012GS

MOUNT-VIBRATION
(Superseded to 319451GS)

$13.99

$

In Stock, Qty 12

0

31

Briggs & Stratton 207824GS

SCREW

$4.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 209428GS

END COVER

$31.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 312038GS

VOLTAGE REGULATOR

$65.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 312041GS

TERMINAL BLOCK

$16.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 312638GS

BOLT

$17.99

$

In Stock, only 2 left!

0

36

Briggs & Stratton 312639GS

BOLT

$8.49

$

In Stock, only 2 left!

0

37

Briggs & Stratton 209441GS

BRUSH ASSY

$

$

Not available

38

Briggs & Stratton 312640GS

BOLT

$7.49

$

In Stock, only 2 left!

0

39

Briggs & Stratton 49226GS

WASHER

$2.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 207838GS

CARRIER-BEARING

$106.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 312032GS

STATOR

$583.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 312029GS

ROTOR

$484.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 207878GS

NUT

$7.49

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 311478GS

DECAL

$11.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 311988GS

TANK-FUEL

$

$

Not available

46

Briggs & Stratton 311990GS

CAP-FUEL

$

$

Not available

47

Briggs & Stratton 209939GS

SEAL

$

$

Not available

48

Briggs & Stratton 311991GS

FILTER-SCREEN

$

$

Not available

49

Briggs & Stratton 312040GS

WIRE

$6.99

$

In Stock, only 1 left!

0

50

Briggs & Stratton 311992GS

GAUGE-FUEL

$18.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 87680GS

NUT

$7.49

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 209421GS

BOLT

$4.49

$

In Stock, only 4 left!

0

53

Briggs & Stratton 312005GS

WASHER

$3.99

$

In Stock, only 3 left!

0

54

Briggs & Stratton 312006GS

GROMMET

$3.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 312010GS

SPACER

$3.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 209417GS

VALVE-FUEL

$8.99

$

In Stock, Qty 20+

0

57

Briggs & Stratton 791745

KIT-FUEL HOSE

Note: (Cut to Fit)

$10.99

$

In Stock, Qty 20+

0

58

Briggs & Stratton 197896GS

SCREW

$2.49

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 47411GS

SCREW

$

$

Not available

60

Briggs & Stratton 22097GS

WASHER

$3.49

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 188333GS

DECAL

$23.99

$

In Stock, only 1 left!

0

62

Briggs & Stratton 202997GS

DECAL

$13.99

$

Usually ships in 2-12 days

0

63

Briggs & Stratton 194984GS

DECAL

$17.99

$

Usually ships in 2-12 days

0

64

Briggs & Stratton 313461GS

DECAL

$10.99

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 315546GS

KIT-HRDWR, BATTERY TERMINAL

$8.99

$

In Stock, only 1 left!

0

66

Briggs & Stratton 66476GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

900

-----

** ENGINE

$

$

Not available

--

Briggs & Stratton B4177GS

CHARGER-BATTERY
(Superseded to 705927)

Note: (Not Illustrated)

$38.99

$

In Stock, Qty 9

0

--

Briggs & Stratton 316742GS

FUSE

Note: (Not Illustrated)

$13.99

$

In Stock, only 1 left!

0
