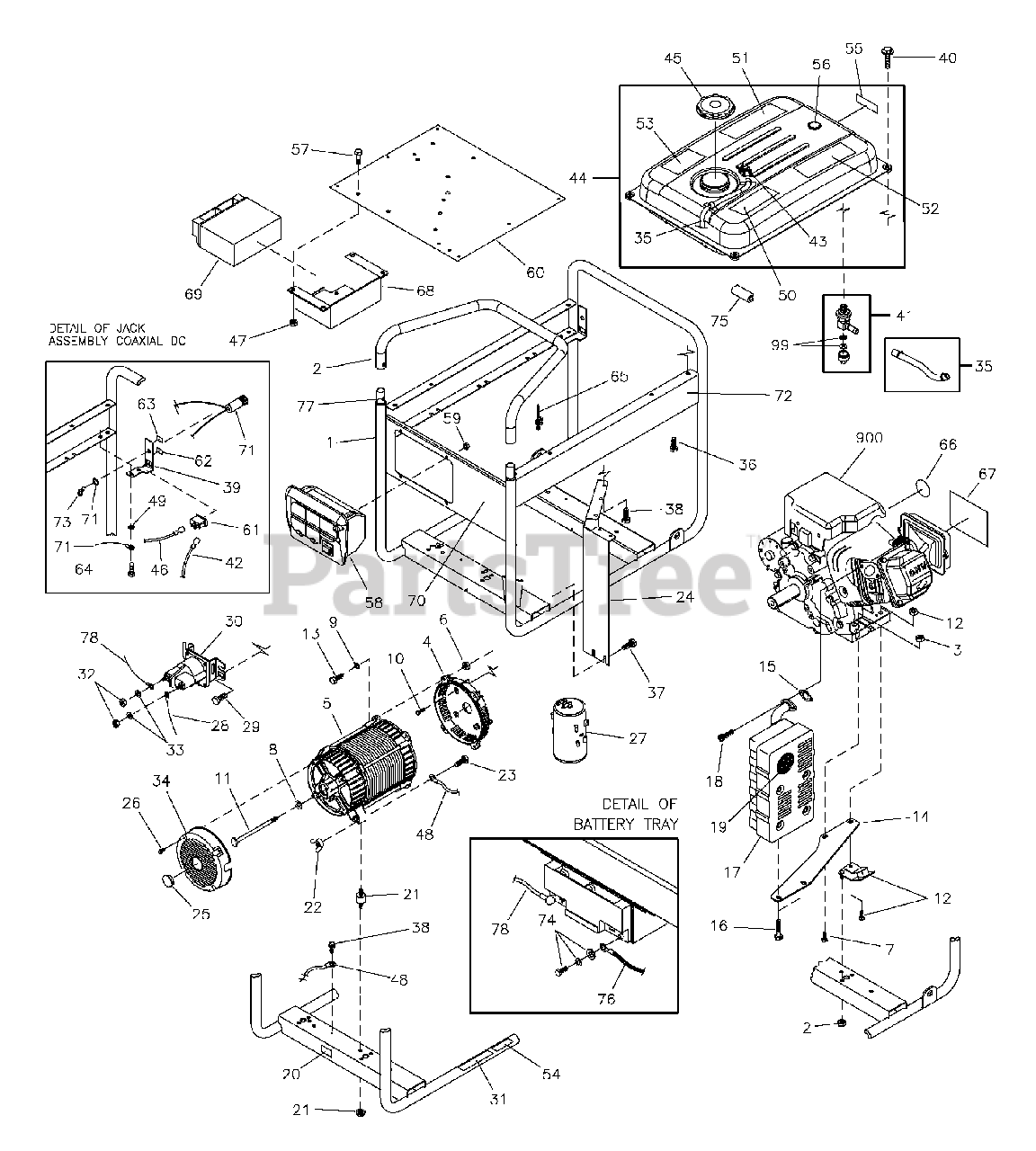

030452-0 - Briggs & Stratton 6,200 Watt Portable Generator Main Unit Parts Diagram

6,200 Watt Portable Generator

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton J209626GS

CRADLE

$

$

Not available

2

Briggs & Stratton J209287GS

HANDLE

$93.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 67989GS

NUT, Flange Serrated, M8

$3.49

$

In Stock, Qty 9

0

4

Briggs & Stratton 190220GS

ADAPTER, Engine

$43.99

$

Usually ships in 2-12 days

0

5

-----

ALTERNATOR (see page 5)

$

$

Not available

6

-----

*NUT, Hex, M8-1-1/4

$

$

Not available

7

Briggs & Stratton 195398GS

SCREW

$2.99

$

In Stock, only 1 left!

0

8

Briggs & Stratton 96796GS

WASHER, 8.4 x 22.2 x 3

$3.49

$

Usually ships in 2-12 days

0

9

-----

*WASHER, Lock, 5/16-M8

$

$

Not available

10

Briggs & Stratton 190274DGS

SCREW

$3.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 187365FGS

SCREW

$17.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 194150GS

MOUNT, Vibration

$13.99

$

Usually ships in 2-12 days

0

13

-----

*CAPSCREW, Hex Head, M8-1-1/4 x 25

$

$

Not available

14

Briggs & Stratton 189009GS

BRACKET

$23.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 695398

GASKET, Exhaust

$7.99

$

In Stock, Qty 8

0

16

-----

*CAPSCREW, Hex Head, M6-1 x 12

$

$

Not available

17

Briggs & Stratton 189008GS

MUFFLER

$

$

Not available

18

Briggs & Stratton 204885GS

SCREW, M8 -1.25 x 20

$2.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 83083GS

ARRESTOR, Spark

$9.49

$

In Stock, only 2 left!

0

20

Briggs & Stratton B4986GS

DECAL, Ground

$2.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 194153GS

MOUNT, Vibration

$11.99

$

In Stock, Qty 5

0

22

Briggs & Stratton 87680GS

NUT, Wing, M6-1

$7.49

$

Usually ships in 2-12 days

0

23

-----

*CAPSCREW, Hex Head, M6-1 x 40

$

$

Not available

24

Briggs & Stratton 194390GS

HEAT SHIELD

$86.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 191190GS

CAP

$3.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 74908GS

TAPTITE, M5 - 0.8 x 10

$2.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 209044GS

CANISTER, Carbon

$64.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 189302RGS

WIRE

$26.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton B4300GS

BOLT
(Superseded to 704130)

$3.99

$

In Stock, Qty 7

0

30

Briggs & Stratton 691656

SOLENOILD

$31.99

$

In Stock, Qty 20+

0

31

Briggs & Stratton 196830GS

DECAL

$15.99

$

Usually ships in 2-12 days

0

32

-----

*NUT, 1/4-20

$

$

Not available

33

-----

*WASHER, Lock, 1/4

$

$

Not available

34

Briggs & Stratton 195422GS

COVER, Rear Bearing

$13.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 791745

KIT, Fuel Hose

Note: (Cut to Fit)

$10.99

$

In Stock, Qty 20+

0

36

Briggs & Stratton 192376GS

SCREW

$3.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 56893GS

CRIMPTITE, 10-24 x 1/2

$3.49

$

In Stock, only 1 left!

0

38

Briggs & Stratton B2153GS

SCREW, Self Driller, 12-14 x 7/8

$4.49

$

Usually ships in 2-12 days

0

39

Briggs & Stratton P198757GS

BRACKET

$

$

Currently unavailable

40

Briggs & Stratton 197955GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 193272GS

VALVE, Fuel
(Superseded to 310574GS)

$10.99

$

In Stock, Qty 20+

0

42

Briggs & Stratton 198871ZGS

WIRE

$4.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 209042GS

VALVE

$15.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 209930GS

TANK, Fuel

Note: (Includes Ref. No. 41)

$

$

Not available

45

Briggs & Stratton 207874GS

CAP, Fuel

$20.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 198871YGS

WIRE

$5.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 77395GS

NUT

$3.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 195373GS

WIRE

$2.49

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 26850GS

WASHER

$2.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 188333GS

DECAL

$23.99

$

In Stock, only 1 left!

0

51

Briggs & Stratton 194799GS

DECAL

$11.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 189235GS

DECAL

$19.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 202997GS

DECAL, Warning, CO

$13.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 208538GS

DECAL
(Superseded to 705920)

$33.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 197797GS

DECAL

$8.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 208962GS

GAUGE

$

$

Not available

57

-----

*CAPSCREW, Hex Head, M6-1 x 12

$

$

Not available

58

Briggs & Stratton 204072GS

CONTROL PANEL

$

$

Not available

59

Briggs & Stratton 189164GS

PALNUT, 3/16

$3.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 208183GS

HEAT SHIELD

$93.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 87799GS

SWITCH, Rocker

$7.49

$

In Stock, Qty 10

0

62

Briggs & Stratton 197159GS

DECAL

$12.99

$

Usually ships in 2-12 days

0

63

Briggs & Stratton 198800GS

DECAL

$7.49

$

Usually ships in 2-12 days

0

64

Briggs & Stratton 90388GS

TAPTITE

$2.49

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 209036GS

MOUNT, Tiewrap

$8.49

$

Usually ships in 2-12 days

0

66

Briggs & Stratton 200658GS

DECAL, Recoil

$8.99

$

Usually ships in 2-12 days

0

67

Briggs & Stratton 209764GS

DECAL

$46.99

$

Usually ships in 2-12 days

0

68

Briggs & Stratton 195680GS

TRAY, Battery

$62.99

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 193043GS

BATTERY

$137.99

$

In Stock, only 2 left!

0

70

Briggs & Stratton 209763GS

DECAL

$46.99

$

Usually ships in 2-12 days

0

71

Briggs & Stratton 209393GS

JACK, Coaxial

$66.99

$

Usually ships in 2-12 days

0

72

Briggs & Stratton 209762GS

DECAL

$26.99

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 192351GS

LUG

$2.49

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 193347GS

KIT, Battery Hardware

$2.99

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 209646GS

TRIM, Edge
(Superseded to 209929GS)

$4.99

$

Usually ships in 2-12 days

0

76

Briggs & Stratton 208518GS

WIRE

$19.99

$

Usually ships in 2-12 days

0

77

Briggs & Stratton 207525GS

PIN, Spring, Handle

$6.49

$

Usually ships in 2-12 days

0

78

Briggs & Stratton 208519GS

WIRE

$32.99

$

Usually ships in 2-12 days

0

99

Briggs & Stratton 189759GS

KIT, Fuel Filter
(Superseded to 310574GS)

$10.99

$

In Stock, Qty 20+

0

900

-----

**ENGINE

$

$

Not available

--

Briggs & Stratton 209760GS

MANUAL, Operator's

$13.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton B4177GS

CHARGER, Battery
(Superseded to 705927)

$38.99

$

In Stock, Qty 8

0
