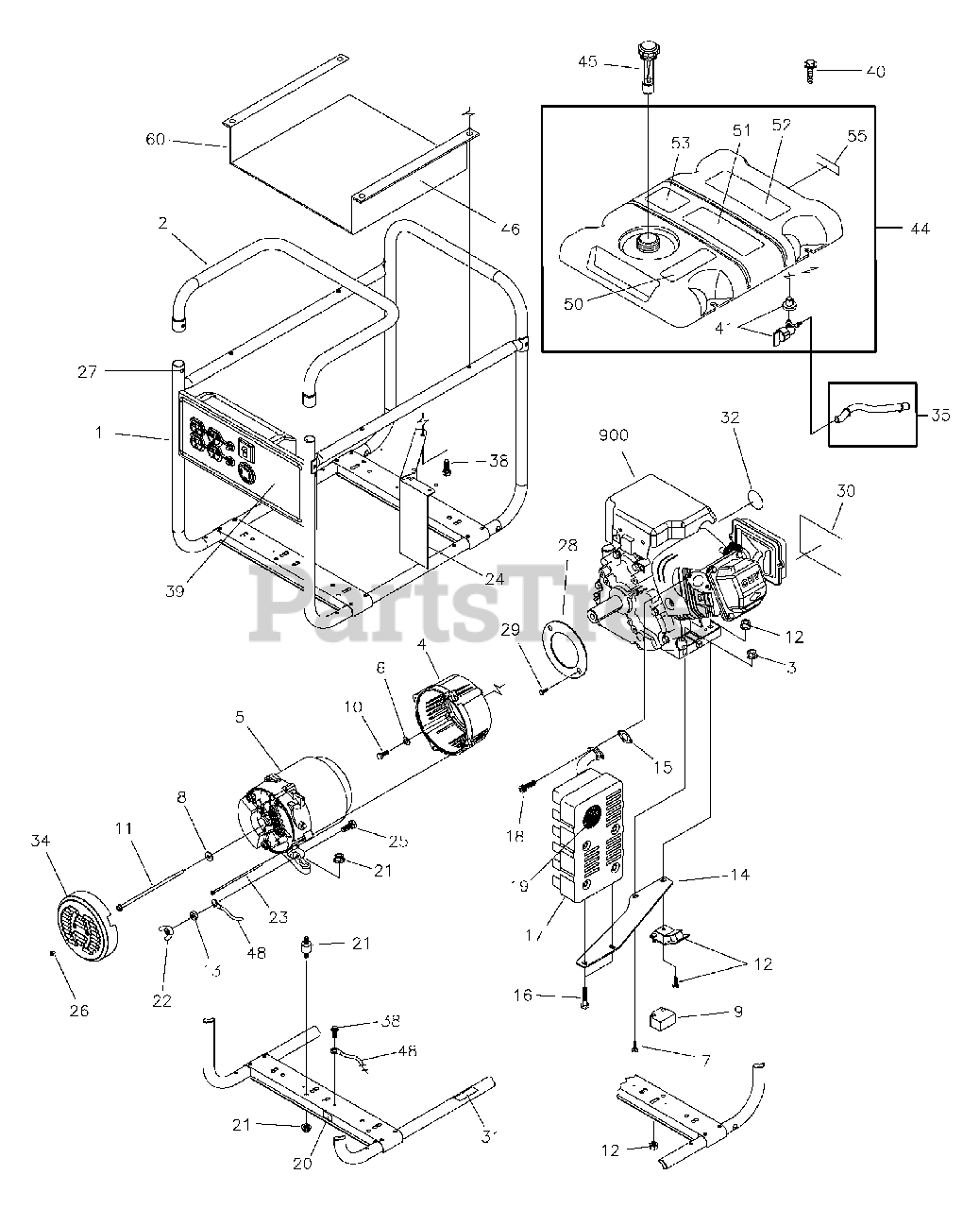

030440-0 - Briggs & Stratton 5,500 Watt Portable Generator Main Unit (209306) Parts Diagram

5,500 Watt Portable Generator

Main Unit (209306) Parts Diagram

  • Title

1

Briggs & Stratton 209329GS

CRADLE

Note: (Includes Ref. Nos. 20 & 31)

$

$

Not available

2

Briggs & Stratton J206971GS

HANDLE

$55.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 67989GS

NUT

$3.49

$

In Stock, Qty 9

0

4

Briggs & Stratton 207822GS

ADAPTER, Engine

$94.99

$

Usually ships in 2-12 days

0

5

-----

ALTERNATOR

$

$

Not available

6

-----

*WASHER, Lock, 3/8

$

$

Not available

7

Briggs & Stratton 195398GS

SCREW, Pan Head Torx, M8 1.25 x 35

$2.99

$

In Stock, only 1 left!

0

8

Briggs & Stratton 207826GS

WASHER

$4.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 207609GS

SPACER

$5.49

$

Usually ships in 2-12 days

0

10

-----

*CAPSCREW, Hex Head, 3/8-16 x 1-1/4

$

$

Not available

11

Briggs & Stratton 207831GS

BOLT

$8.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 208916GS

MOUNT, Vibration

$15.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 49813GS

NUT

$2.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 189009GS

BRACKET

$23.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 695398

GASKET

$7.99

$

In Stock, Qty 8

0

16

-----

*CAPSCREW, Hex Head, M6 - 1.0 x 12

$

$

Not available

17

Briggs & Stratton 189008GS

MUFFLER

$

$

Not available

18

-----

*CAPSCREW, Socket Head, M8 - 1.25 x 20

$

$

Not available

19

Briggs & Stratton 83083GS

SCREEN

$9.49

$

In Stock, only 2 left!

0

20

Briggs & Stratton B4986GS

DECAL

$2.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 195478GS

MOUNT, Vibration

$26.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 87680GS

NUT

$7.49

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 207828GS

BOLT, M6 - 6 x 190

$12.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 207954GS

HEAT SHIELD

$60.99

$

Usually ships in 2-12 days

0

25

-----

*CAPSCREW, Hex Head, M6 - 1.0 x 35

$

$

Not available

26

Briggs & Stratton 207824GS

SCREW

$4.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 207525GS

PIN, Spring, Handle

$6.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton B4260GS

DISK

$48.99

$

Usually ships in 2-12 days

0

29

-----

*CAPSCREW, Hex Head, 5/16 - 24 x 3/4

$

$

Not available

30

Briggs & Stratton 209250GS

DECAL

$12.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 200310GS

DECAL

$15.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 200658GS

DECAL

$8.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 207823GS

COVER, Rear Bearing

$27.99

$

In Stock, only 1 left!

0

35

Briggs & Stratton 791745

KIT, Fuel Hose (cut to fit)

$10.99

$

In Stock, Qty 20+

0

36

Briggs & Stratton 192376GS

SCREW

$3.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 56893GS

CRIMPTITE

$3.49

$

In Stock, only 1 left!

0

38

Briggs & Stratton B2153GS

SCREW

$4.49

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 209251GS

DECAL

$19.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 199256GS

BOLT

$2.49

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 192980GS

VALVE, Fuel

$17.99

$

In Stock, Qty 20+

0

44

Briggs & Stratton 200814GS

TANK, Fuel

$

$

Not available

45

Briggs & Stratton B4363GS

CAP, Fuel

$41.99

$

In Stock, Qty 20+

0

46

Briggs & Stratton 209252GS

DECAL

$26.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 195373GS

WIRE

$2.49

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 208029GS

HARNESS, Power

$95.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 188333GS

DECAL

$23.99

$

In Stock, only 1 left!

0

51

Briggs & Stratton 194984GS

DECAL

$17.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 94480GS

DECAL

$17.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 202997GS

DECAL

$13.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 197798GS

DECAL

$9.49

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 206805GS

HEAT SHIELD

$93.99

$

Usually ships in 2-12 days

0

900

-----

**ENGINE

$

$

Not available

--

Briggs & Stratton 209269GS

MANUAL, Operator's

Note: (Not Illustrated)

$12.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 200311GS

DECAL

Note: (Not Illustrated)

$8.99

$

Usually ships in 2-12 days

0
