030436-1 - Husky 5,000 Watt Portable Generator Main Unit (310321) Parts Diagram

5,000 Watt Portable Generator

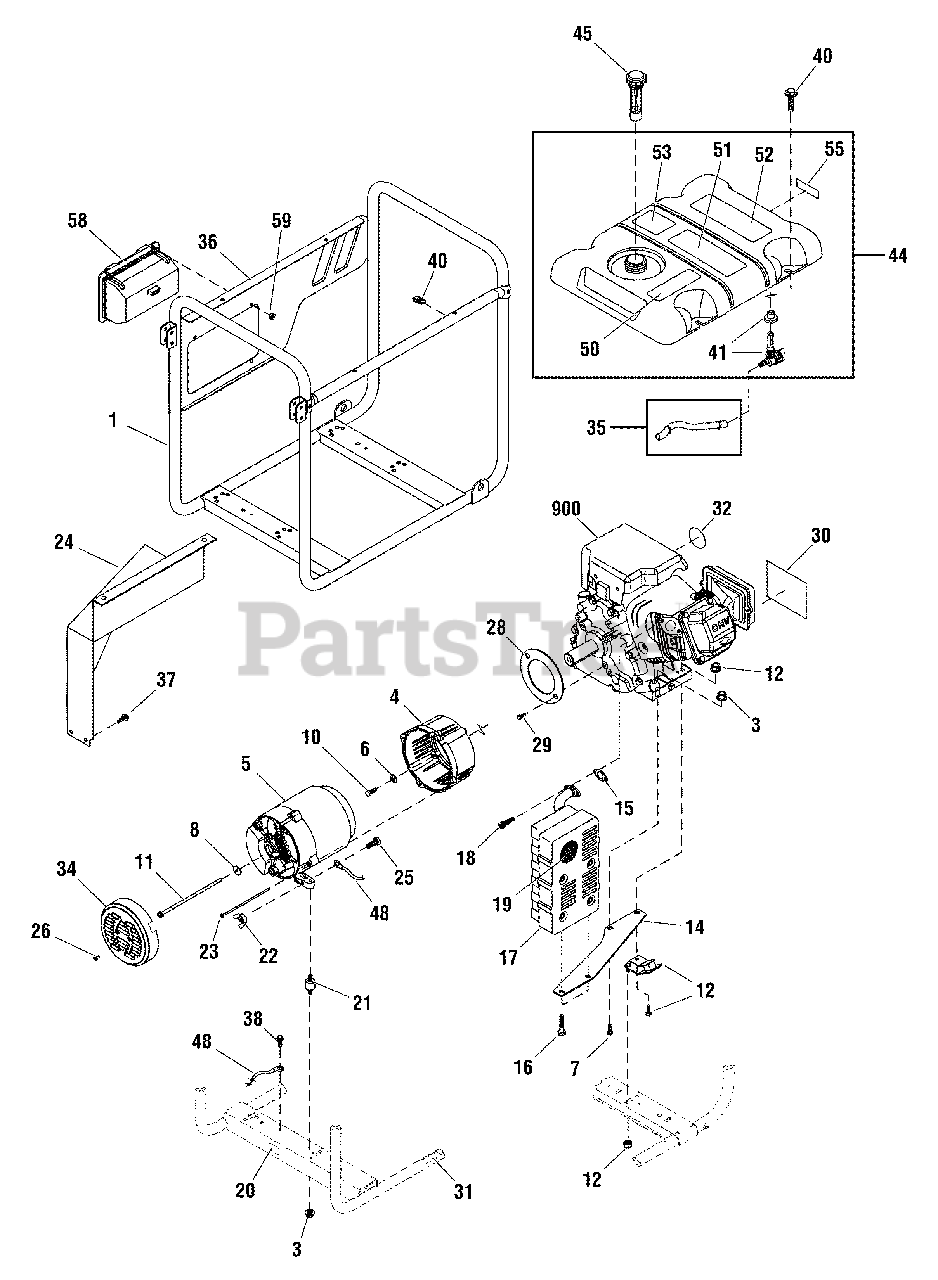

Main Unit (310321) Parts Diagram

  • Title

1

Briggs & Stratton 209244GS

CRADLE

Note: (Includes Ref. Nos. 20 & 31)

$

$

Not available

3

Briggs & Stratton 67989GS

NUT

$3.49

$

In Stock, Qty 9

0

4

Briggs & Stratton 208537GS

ADAPTER, Engine

$119.99

$

Usually ships in 2-12 days

0

5

-----

ALTERNATOR

$

$

Not available

6

-----

* WASHER, Lock, 3/8

$

$

Not available

7

Briggs & Stratton 195398GS

SCREW, Pan Head Torx, M8 1.25 x 35

$2.99

$

In Stock, only 1 left!

0

8

Briggs & Stratton 207826GS

WASHER

$4.49

$

Usually ships in 2-12 days

0

10

-----

* CAPSCREW, Hex Head, 3/8-16 x 1-1/4

$

$

Not available

11

Briggs & Stratton 207830GS

BOLT

$11.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 194150GS

MOUNT, Vibration

$13.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 189009GS

BRACKET

$23.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 695398

GASKET

$7.99

$

In Stock, Qty 8

0

16

-----

* CAPSCREW, Hex Head, M6 - 1.0 x 12

$

$

Not available

17

Briggs & Stratton 189008GS

MUFFLER

$

$

Not available

18

-----

* CAPSCREW, Socket Head, M8 - 1.25 x 20

$

$

Not available

19

Briggs & Stratton 83083GS

SCREEN

$9.49

$

In Stock, only 2 left!

0

20

Briggs & Stratton B4986GS

DECAL

$2.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 85652GS

MOUNT, Vibration
(Superseded to 194153GS)

$11.99

$

In Stock, Qty 5

0

22

Briggs & Stratton 87680GS

NUT

$7.49

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 207829GS

BOLT, M6 - 6 x 180

$14.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 208236GS

HEAT SHIELD

$96.99

$

Usually ships in 2-12 days

0

25

-----

* CAPSCREW, Hex Head, M6 - 1.0 x 35

$

$

Not available

26

Briggs & Stratton 207824GS

SCREW

$4.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton B4260GS

DISK

$48.99

$

Usually ships in 2-12 days

0

29

-----

* CAPSCREW, Hex Head, 5/16-24 x 3/4

$

$

Not available

30

Briggs & Stratton 208950GS

DECAL

$12.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 196830GS

DECAL

$15.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 200658GS

DECAL

$8.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 208429GS

COVER, Rear Bearing

$43.99

$

In Stock, only 1 left!

0

35

Briggs & Stratton 791745

KIT, Fuel Hose (cut to fit)

$10.99

$

In Stock, Qty 20+

0

36

Briggs & Stratton 208374GS

DECAL

$12.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 56893GS

CRIMPTITE

$3.49

$

In Stock, only 1 left!

0

38

Briggs & Stratton B2153GS

SCREW

$4.49

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 199433GS

KIT, Hardware, Fuel Tank

$11.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 199284GS

U-CLIPS

Note: (Optional Accessory)

$4.49

$

In Stock, only 1 left!

0

41

Briggs & Stratton 192980GS

VALVE, Fuel

$17.99

$

In Stock, Qty 20+

0

44

Briggs & Stratton 193668GS

TANK, Fuel

$

$

Not available

45

Briggs & Stratton B4363GS

CAP, Fuel

$41.99

$

In Stock, Qty 20+

0

48

Briggs & Stratton 195373GS

WIRE

$2.49

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 188333GS

DECAL

$23.99

$

In Stock, only 1 left!

0

51

Briggs & Stratton 194799GS

DECAL

$11.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 189235GS

DECAL

$19.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 202997GS

DECAL

$13.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 197798GS

DECAL

$9.49

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 201575GS

CONTROL PANEL

$

$

Not available

59

Briggs & Stratton 189164GS

PALNUT, 3/16

$3.99

$

Usually ships in 2-12 days

0

900

-----

** ENGINE

$

$

Not available

--

Briggs & Stratton 208373GS

MANUAL, Operator's

Note: (Not Illustrated)

$13.99

$

Usually ships in 2-12 days

0
