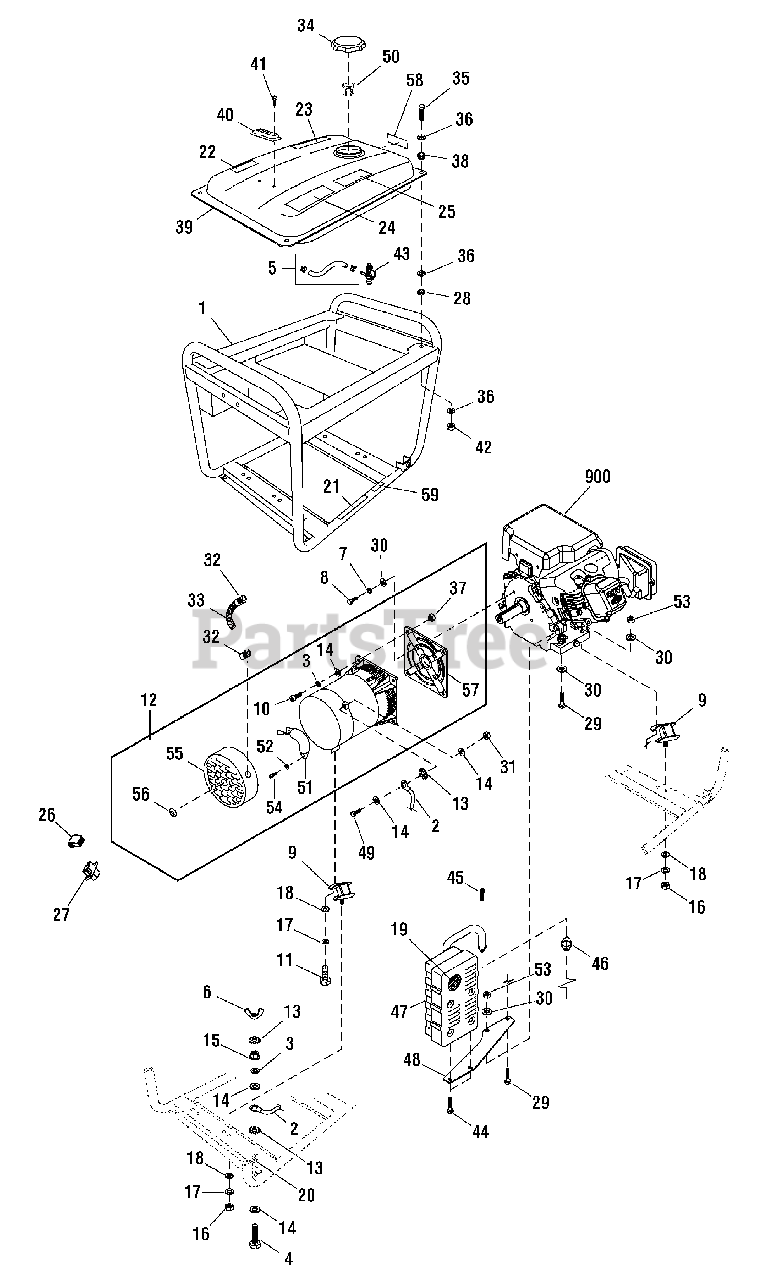

030434-0 - Briggs & Stratton 3,250 Watt Portable Generator Main Unit (207767) Parts Diagram

3,250 Watt Portable Generator

Main Unit (207767) Parts Diagram

  • Title

1

NSP

CRADLE

$

$

Not available

2

Briggs & Stratton 203694GS

WIRE

$4.49

$

Usually ships in 2-12 days

0

3

-----

* WASHER, Lock, M8

$

$

Not available

4

-----

* BOLT, M8 x 30

$

$

Not available

5

Briggs & Stratton 791745

KIT, Fuel Hose

Note: (Cut to Fit)

$10.99

$

In Stock, Qty 20+

0

6

Briggs & Stratton 204748GS

NUT

$3.49

$

Usually ships in 2-12 days

0

7

-----

* WASHER, Lock, M8

$

$

Not available

8

-----

* CAPSCREW, Hex Head, 5/16-24

$

$

Not available

9

Briggs & Stratton 204735GS

MOUNT, Vibration

$

$

Not available

10

-----

* CAPSCREW, Socket Head, M8 x 30

$

$

Not available

11

-----

* CAPSCREW, Hex Head

$

$

Not available

12

Briggs & Stratton 204772GS

ALTERNATOR

$576.99

$

Usually ships in 2-12 days

0

13

-----

* WASHER, M8

$

$

Not available

14

-----

* WASHER, Flat, M8 x 16

$

$

Not available

15

-----

* NUT, Hex, M8

$

$

Not available

16

-----

* NUT, M10

$

$

Not available

17

-----

* WASHER, Lock, M10

$

$

Not available

18

-----

* WASHER, Flat, M10

$

$

Not available

19

Briggs & Stratton 83083GS

SCREEN

$9.49

$

In Stock, only 2 left!

0

20

Briggs & Stratton B4986GS

DECAL

$2.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 196830GS

DECAL

$15.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 194799GS

DECAL

$11.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 188333GS

DECAL

$23.99

$

In Stock, only 1 left!

0

24

Briggs & Stratton 189235GS

DECAL

$19.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 202997GS

DECAL

$13.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 204740GS

WIRE END SEAT

$10.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 204741GS

WIRE END SEAT, WHT

$4.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 204736GS

PAD-SUPPORT

$2.99

$

Usually ships in 2-12 days

0

29

-----

* CAPSCREW, Hex Head, M8 x 35

$

$

Not available

30

-----

* WASHER, Flat, M8 x 16

$

$

Not available

31

-----

* NUT, Nylon, M8

$

$

Not available

32

Briggs & Stratton 204737GS

CONNECTOR

$8.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 204738GS

TUBE

$8.99

$

Usually ships in 2-12 days

0

34

NSP

CAP, Fuel

$

$

Not available

35

-----

* SCREW, M6 x 30

$

$

Not available

36

-----

* WASHER, Flat, M6 x 24

$

$

Not available

37

-----

* NUT, M8

$

$

Not available

38

Briggs & Stratton 204749GS

GROMMET

$3.49

$

Usually ships in 2-12 days

0

39

NSP

TANK, Fuel

$

$

Not available

40

Briggs & Stratton 204744GS

GAUGE, Fuel

$13.99

$

Usually ships in 2-12 days

0

41

-----

* SCREW, M5 x 10

$

$

Not available

42

-----

* NUT, Nylon, M6

$

$

Not available

43

Briggs & Stratton 204743GS

VALVE, Fuel
(Superseded to 310574GS)

$10.99

$

In Stock, Qty 20+

0

44

-----

* CAPSCREW, Hex Head, M6 - 1.0 x 12 with LW

$

$

Not available

45

-----

* CAPSCREW, Socket Head, M6 - 1.0 x 20

$

$

Not available

46

Briggs & Stratton 697815

GASKET
(Superseded to 692237)

$5.49

$

In Stock, only 3 left!

0

47

Briggs & Stratton 188301GS

MUFFLER

$152.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 191785GS

BRACKET

$16.99

$

Usually ships in 2-12 days

0

49

-----

* SCREW, M8 x 25

$

$

Not available

50

Briggs & Stratton 204742GS

FILTER

$7.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 204774GS

CAPACITOR

$

$

Not available

52

Briggs & Stratton 204776GS

WASHER

$3.49

$

Usually ships in 2-12 days

0

53

-----

* NUT, Nylon, M8

$

$

Not available

54

Briggs & Stratton 204777GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 204775GS

COVER, Rear Bearing

$26.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 204773GS

RUBBER

$2.99

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 203705GS

FLANGE

$30.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 197797GS

DECAL

$8.99

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 208538GS

DECAL
(Superseded to 705920)

$33.99

$

Usually ships in 2-12 days

0

900

-----

** ENGINE

$

$

Not available

--

Briggs & Stratton 310090GS

MANUAL, Operator's

Note: (Not Illustrated)

$13.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton BB3061BGS

OIL
(Superseded to 100005)

Note: (Not Illustrated)

$8.99

$

In Stock, Qty 20+

0

--

-----

CANISTER, Carbon

Note: (Not Illustrated)

$

$

Not available
