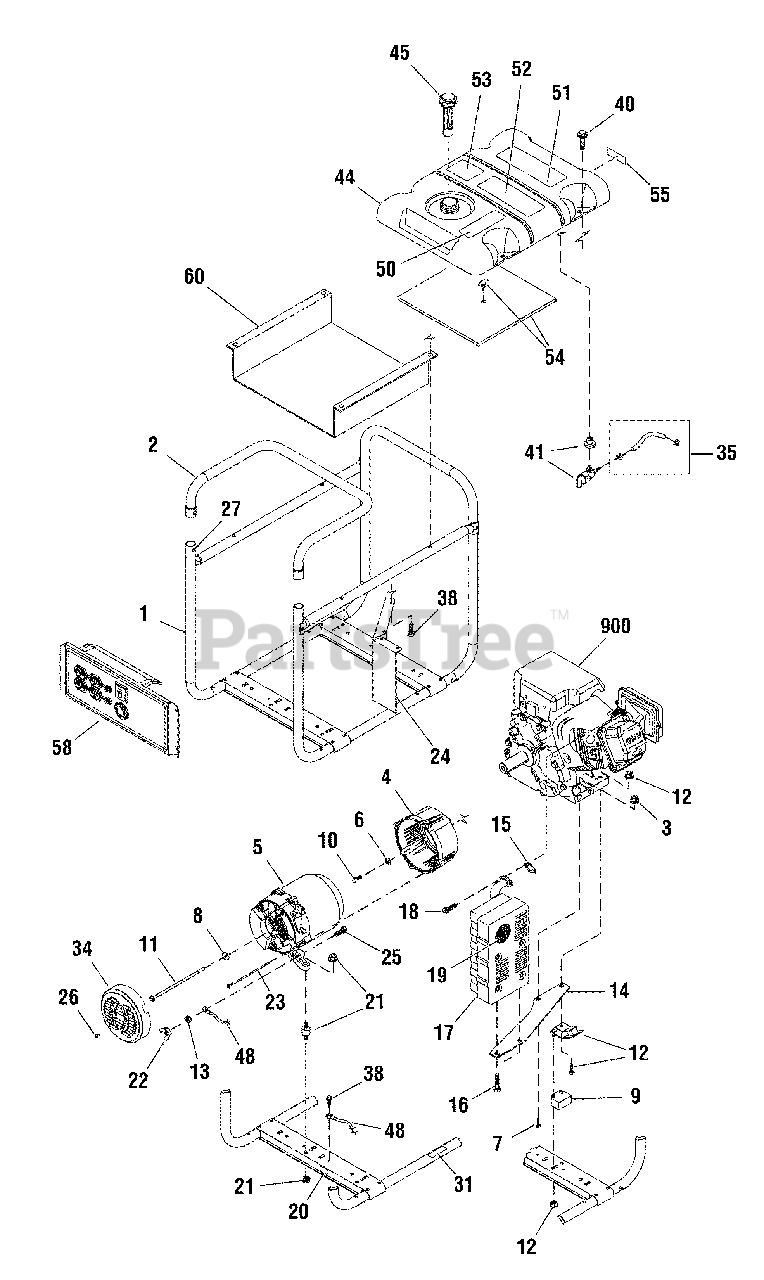

  • Title

1

Briggs & Stratton 209715GS

CRADLE

Note: (Includes Ref. Nos. 20, 31 & 58)

$

$

Not available

2

Briggs & Stratton P206971GS

HANDLE

$59.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 67989GS

NUT, M8 Flange Serrated

$3.49

$

In Stock, Qty 9

0

4

Briggs & Stratton 207822GS

ADAPTER, Engine

$94.99

$

Usually ships in 2-12 days

0

5

-----

ALTERNATOR ASSEMBLY

$

$

Not available

6

-----

* WASHER, Lock, 3/8

$

$

Not available

7

Briggs & Stratton 195398GS

TPHMS, M8 1.25 x 35

$2.99

$

In Stock, only 1 left!

0

8

Briggs & Stratton 207826GS

WASHER, Senci

$4.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 207609GS

SPACER

$5.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton * (22511)

* CAPSCREW, Hex Head, 3/8-16 x 1-1/4

$

$

Currently unavailable

11

Briggs & Stratton 207831GS

BOLT, 5/16-24 x 238

$8.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 208916GS

KIT, Vibration Mount, 45

$15.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 49813GS

NUT, Hex, M6 - 1.0

$2.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 189009GS

BRACKET, Muffler

$23.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 695398

GASKET, Exhaust

$7.99

$

In Stock, Qty 8

0

16

-----

* CAPSCREW, Hex Head, M6-1.0 x 12

$

$

Not available

17

Briggs & Stratton 189008GS

MUFFLER

$

$

Not available

18

-----

* CAPSCREW, Socket Head, M8-1.25 x 20

$

$

Not available

19

Briggs & Stratton 83083GS

SCREEN, Spark Arrest

$9.49

$

In Stock, only 2 left!

0

20

Briggs & Stratton B4986GS

DECAL, Ground

$2.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 195478GS

KIT, Vibration Mount

$26.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 87680GS

NUT, Wing, M6-1

$7.49

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 207828GS

BOLT, M6-6 x 190

$12.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 207954GS

HEAT SHIELD

$60.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 208561GS

CAPSCREW, Hex Head, M6-1 x 35

$3.49

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 207824GS

BOLT, M5-6 x 12

$4.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 207525GS

PIN, Spring, Handle

$6.49

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 196830GS

DECAL, Warning, Exhaust

$15.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 207823GS

COVER, End

$27.99

$

In Stock, only 1 left!

0

35

Briggs & Stratton 791745

KIT, Fuel Hose

Note: (Cut to Fit)

$10.99

$

In Stock, Qty 20+

0

36

Briggs & Stratton 192376GS

SCREW, Thread Forming, 12-24 x 1/2

$3.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 56893GS

CRIMPTITE, 10-24 x 1/2

$3.49

$

In Stock, only 1 left!

0

38

Briggs & Stratton B2153GS

SCREW, Self Driller, 12-14 x 7/8

$4.49

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 199256GS

BOLT, Shoulder, M6-1

$2.49

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 192980GS

VALVE, Fuel

$17.99

$

In Stock, Qty 20+

0

44

Briggs & Stratton 193668GS

FUEL TANK ASSEMBLY

Note: (Includes Ref. 41, 50, 51, 52, 53 & 55)

$

$

Not available

45

Briggs & Stratton B4363GS

CAP, Fuel Gauge

$41.99

$

In Stock, Qty 20+

0

48

Briggs & Stratton 195373GS

WIRE, Ground

$2.49

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 188333GS

DECAL, Instruction Fuel Level

$23.99

$

In Stock, only 1 left!

0

51

Briggs & Stratton 194799GS

DECAL, Danger

$11.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 189235GS

DECAL, Instruction, Start

$19.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 202997GS

DECAL, Warning, CO

$13.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 194448GS

KIT, Insulation w/Clip

$31.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 197798GS

DECAL, Fuel Shutoff

$9.49

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 206916GS

CONTROL PANEL ASSEMBLY
(Superseded to 209715GS)

Note: (Includes Ref. No. 59)

$

$

Not available

60

Briggs & Stratton 206805GS

HEAT SHIELD

$93.99

$

Usually ships in 2-12 days

0

900

-----

** ENGINE

$

$

Not available

--

Briggs & Stratton 201349GS

MANUAL, Operator’s

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 206871GS

DECAL, Air Cleaner

$19.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 200658GS

DECAL, Recoil

$8.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 207923GS

DECAL, Control Panel

$17.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 208029GS

HARNESS, Power

$95.99

$

Usually ships in 2-12 days

0
