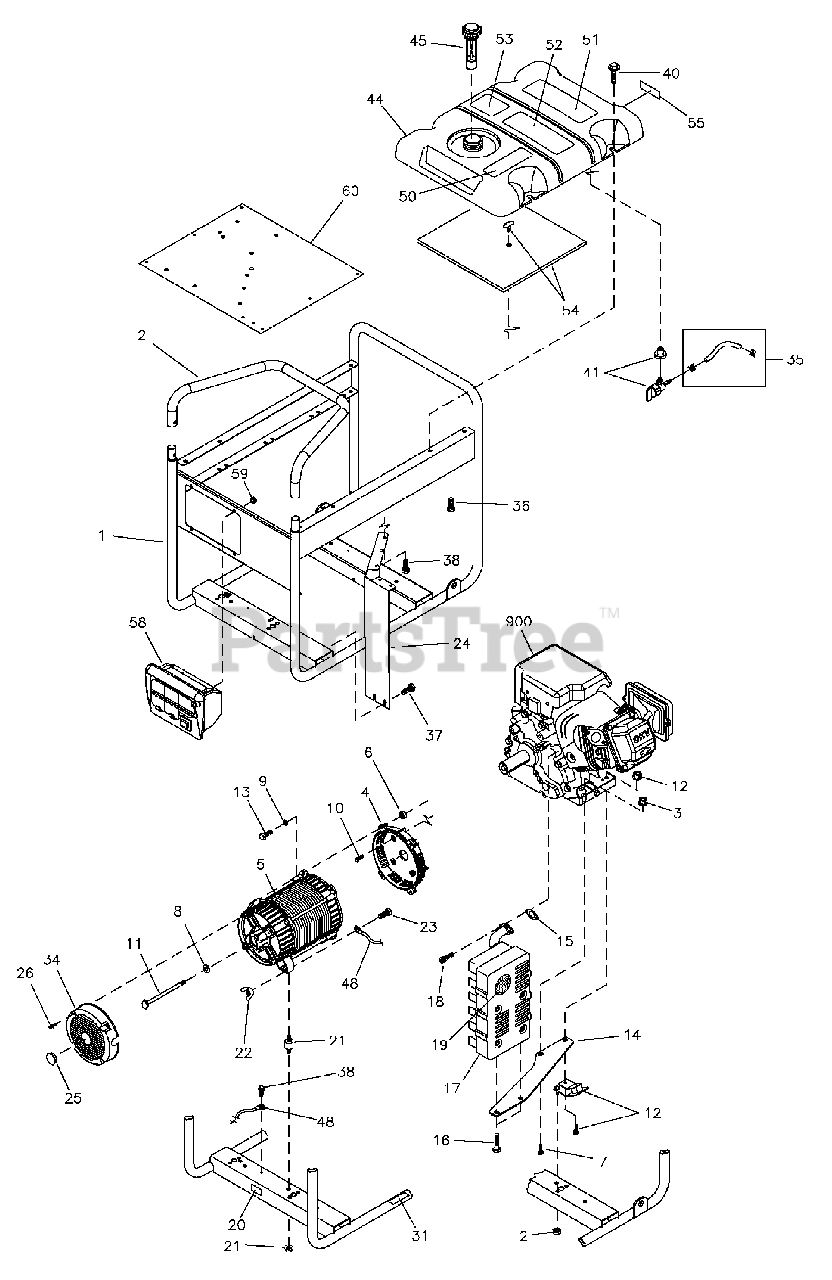

030430-2 - Briggs & Stratton 5,500 Watt Portable Generator Main Unit (208495) Parts Diagram

5,500 Watt Portable Generator

Main Unit (208495) Parts Diagram

  • Title

1

Briggs & Stratton R206909GS

CRADLE
(Superseded to 313583BUGS)

Note: (Includes Ref. Nos. 20 & 31)

$508.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton R209287GS

HANDLE
(Superseded to 209287BUGS)

$111.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 67989GS

NUT, Flange Serrated, M8

$3.49

$

In Stock, Qty 9

0

4

Briggs & Stratton 190220GS

ADAPTER, Engine

$43.99

$

Usually ships in 2-12 days

0

5

-----

ALTERNATOR (see page 5)

$

$

Not available

6

-----

*NUT, Hex, M8-1-1/4

$

$

Not available

7

Briggs & Stratton 195398GS

SCREW, Pan Head Torx, M8 1.25 x 35

$2.99

$

In Stock, only 1 left!

0

8

Briggs & Stratton 96796GS

WASHER, 8.4 x 22.2 x 3

$3.49

$

Usually ships in 2-12 days

0

9

-----

*WASHER, Lock, 5/16-M8

$

$

Not available

10

Briggs & Stratton 190274BGS

SCREW, 3/8-16 x 1

$3.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 47480GS

CAPSCREW, Hex Head, 5/16-24 x 7

$10.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 194150GS

KIT, Vibration Mount, 45°

$13.99

$

Usually ships in 2-12 days

0

13

-----

*CAPSCREW, Hex Head, M8-1-1/4 x 25

$

$

Not available

14

Briggs & Stratton 189009GS

BRACKET, Muffler

$23.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 695398

GASKET, Exhaust

$7.99

$

In Stock, Qty 8

0

16

-----

*CAPSCREW, Hex Head, M6-1 x 12

$

$

Not available

17

Briggs & Stratton 189008GS

MUFFLER

$

$

Not available

18

Briggs & Stratton 204885GS

SCREW, M8 -1.25 x 20

$2.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 83083GS

SCREEN, Spark Arrest

$9.49

$

In Stock, only 2 left!

0

20

Briggs & Stratton B4986GS

DECAL, Ground

$2.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 194153GS

KIT, Vibration Mount

$11.99

$

In Stock, Qty 5

0

22

Briggs & Stratton 87680GS

NUT, Wing, M6-1

$7.49

$

Usually ships in 2-12 days

0

23

-----

*CAPSCREW, Hex Head, M6-1 x 40

$

$

Not available

24

Briggs & Stratton 194390GS

ASSEMBLY, Heat Shield

$86.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 191190GS

CAP

$3.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 74908GS

TAPTITE, M5 - 0.8 x 10

$2.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 196830GS

DECAL, Warning, Exhaust

$15.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 195422GS

COVER, RBC Plastic with Cap

$13.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 791745

KIT, Fuel Hose

Note: (Cut to Fit)

$10.99

$

In Stock, Qty 20+

0

36

Briggs & Stratton 192376GS

SCREW, Thread Forming, 12-24 x 1/2

$3.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 56893GS

CRIMPTITE, 10-24 x 1/2

$3.49

$

In Stock, only 1 left!

0

38

Briggs & Stratton B2153GS

SCREW, Self Driller, 12-14 x 7/8

$4.49

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 199256GS

BOLT, Shoulder, M6 - 1.0 w/washer

$2.49

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 192980GS

VALVE, Fuel

$17.99

$

In Stock, Qty 20+

0

44

Briggs & Stratton 194217GS

ASSEMBLY, Fuel Tank

Note: (Includes Ref. 41, 50, 51, 52, 53 & 55)

$

$

Not available

45

Briggs & Stratton B4363GS

CAP, Fuel Gauge

$41.99

$

In Stock, Qty 20+

0

48

Briggs & Stratton 195373GS

WIRE, Ground

$2.49

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 188333GS

DECAL, Instruction Fuel Level

$23.99

$

In Stock, only 1 left!

0

51

Briggs & Stratton 194799GS

DECAL, Danger

$11.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 189235GS

DECAL, Instruction, Start

$19.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 202997GS

DECAL, Warning, CO

$13.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 194448GS

KIT, Insulation w/Clip

$31.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 197798GS

DECAL, Fuel Shutoff

$9.49

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 207267GS

ASSEMBLY, Control Panel

$217.99

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 189164GS

PALNUT, 3/16

$3.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 204594GS

HEAT SHIELD

$98.99

$

Usually ships in 2-12 days

0

900

-----

**ENGINE

$

$

Not available

--

Briggs & Stratton 206883GS

MANUAL, Operator’s

Note: (Not Shown)

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 197474GS

CORDSET
(Superseded to 206775GS)

Note: (Not Shown)

$186.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 207525GS

PIN, Spring, Handle

Note: (Not Shown)

$6.49

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 206888GS

DECAL, Panel End

Note: (Not Shown)

$17.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 206887GS

DECAL, Panel Side

Note: (Not Shown)

$15.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 200658GS

DECAL, Recoil

Note: (Not Shown)

$8.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 207889GS

DECAL, Air Cleaner

Note: (Not Shown)

$10.99

$

Usually ships in 2-12 days

0
