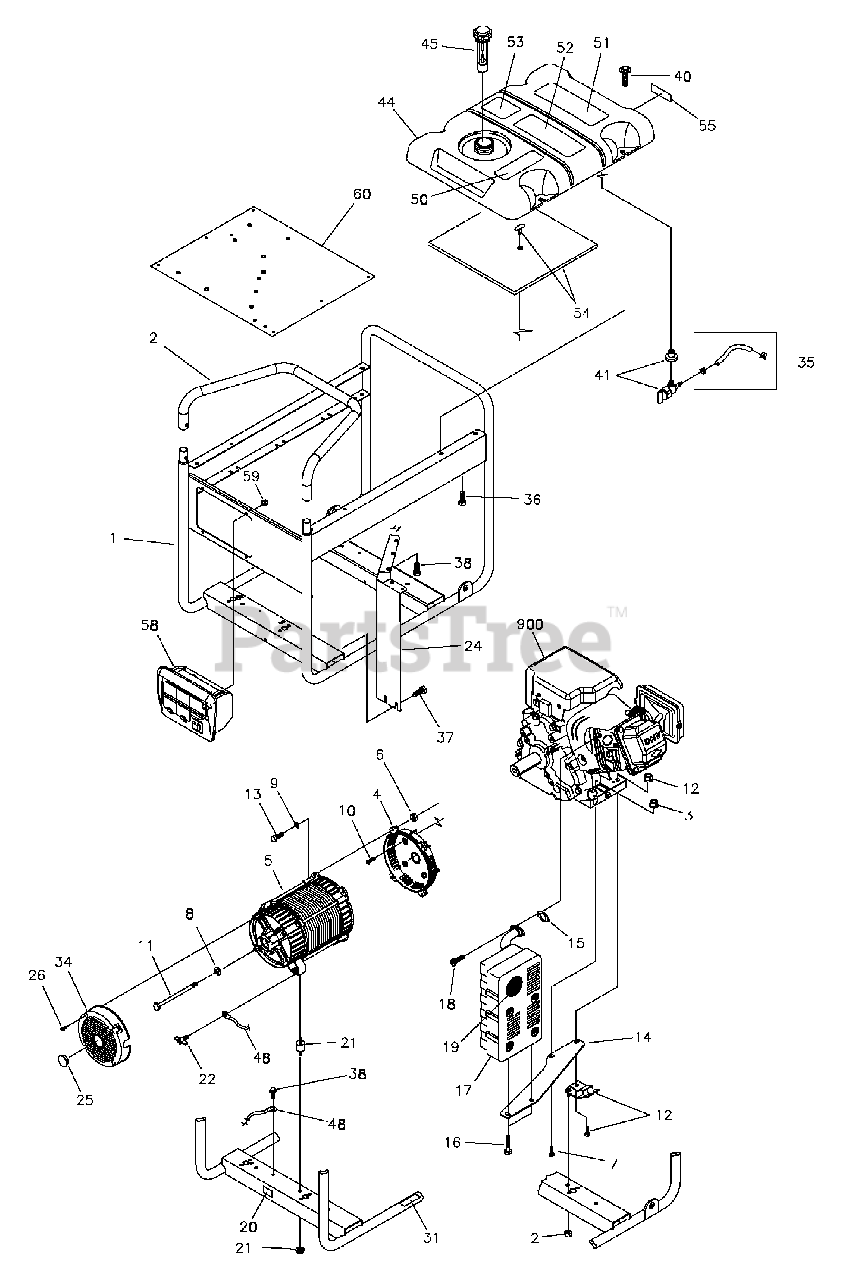

030430-1 - Briggs & Stratton 5,500 Watt Portable Generator Main Unit (207719) Parts Diagram

5,500 Watt Portable Generator

Main Unit (207719) Parts Diagram

  • Title

1

Briggs & Stratton 209877BUGS

CRADLE
(Superseded to 313583BUGS)

Note: (Includes Ref. Nos. 20 & 31)

$508.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 209287BUGS

HANDLE

$111.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 67989GS

NUT, M8 Flange Serrated

$3.49

$

In Stock, Qty 5

0

4

Briggs & Stratton 190220GS

ADAPTER, Engine

$43.99

$

Usually ships in 2-12 days

0

5

-----

ALTERNATOR

$

$

Not available

6

-----

* NUT, Hex M8 - 1-1/4

$

$

Not available

7

Briggs & Stratton 195398GS

SCREW

$2.99

$

In Stock, only 1 left!

0

8

Briggs & Stratton 96796GS

WASHER, 8.4 x 22.2 x 3

$3.49

$

Usually ships in 2-12 days

0

9

-----

* WASHER, Lock, 5/16-M8

$

$

Not available

10

Briggs & Stratton 190274BGS

SCREW, 3/8-16 x 1

$3.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 187365FGS

CAPSCREW, Hex Head, 5/16-24 x 7-7/16

$17.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 194150GS

KIT, Vibration Mount, 45°

$13.99

$

In Stock, only 2 left!

0

13

-----

CAPSCREW, Hex Head, M8 - 1-1/4 x 25

$

$

Not available

14

Briggs & Stratton 189009GS

BRACKET, Muffler

$23.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 695398

GASKET, Exhaust

$7.99

$

In Stock, Qty 8

0

16

-----

* CAPSCREW, Hex Head, M6-1 x 12

$

$

Not available

17

Briggs & Stratton 189008GS

MUFFLER

$

$

Not available

18

Briggs & Stratton 204885GS

SCREW, M8 - 1-1/4 x 20

$2.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 83083GS

SPARK ARRESTOR

$9.49

$

In Stock, only 2 left!

0

20

Briggs & Stratton B4986GS

DECAL, Ground

$2.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 194153GS

KIT, Vibration Mount

$11.99

$

In Stock, Qty 5

0

22

Briggs & Stratton 87680GS

NUT

$7.49

$

Usually ships in 2-12 days

0

23

-----

* CAPSCREW, Hex Head, M6-1 x 40

$

$

Not available

24

Briggs & Stratton 194390GS

HEAT SHIELD

$86.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 191190GS

CAP

$3.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 74908GS

TAPTITE, M5 - 0.8 x 10

$2.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 207525GS

PIN

$6.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 206887GS

DECAL

$15.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 206888GS

DECAL

$17.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 196830GS

DECAL

$15.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 196830GS

DECAL, Warning, Exhaust

$15.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 200658GS

DECAL

$8.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 195422GS

COVER, RBC Plastic w/Cap

$13.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 791745

KIT, Hose, Fuel (cut to fit)

$10.99

$

In Stock, Qty 20+

0

36

Briggs & Stratton 192376GS

SCREW, 12 - 24 x 1/2 Thread Forming

$3.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 56893GS

CRIMPTITE, 10-24 x 1/2

$3.49

$

In Stock, only 1 left!

0

38

Briggs & Stratton B2153GS

SCREW, Self Driller, 12-14 x 7/8

$4.49

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 199256GS

BOLT, Shoulder, M6 - 1.0 w/washer

$2.49

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 192980GS

VALVE, Fuel

$17.99

$

In Stock, Qty 20+

0

44

Briggs & Stratton 194217GS

FUEL TANK ASSEMBLY

Note: (Includes Ref. Nos. 41, 50, 51, 52, 53 & 55)

$

$

Not available

45

Briggs & Stratton B4363GS

CAP, Fuel Gauge

$41.99

$

In Stock, Qty 20+

0

48

Briggs & Stratton 14353621GS

WIRE, Ground
(Superseded to 195373GS)

$2.49

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 188333GS

DECAL, Instruction Fuel Level

$23.99

$

In Stock, only 1 left!

0

51

Briggs & Stratton 194799GS

DECAL, Danger

$11.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 189235GS

DECAL, Instruction, Start

$19.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 202997GS

DECAL, Warning, CO

$13.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 197798GS

DECAL, Fuel Shutoff

$9.49

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 310763GS

CONTROL PANEL, Complete

$211.99

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 189164GS

PALNUT, 3/16

$3.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 200183GS

HEAT SHIELD

$

$

Currently unavailable

900

-----

** ENGINE

$

$

Not available

--

Briggs & Stratton 206883GS

MANUAL, Operator’s

Note: (Not Illustrated)

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 206775GS

CORDSET

Note: (Not Illustrated)

$186.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 189208GS

STABILIZER, Fuel

Note: (Not Illustrated)

$4.49

$

Usually ships in 2-12 days

0
