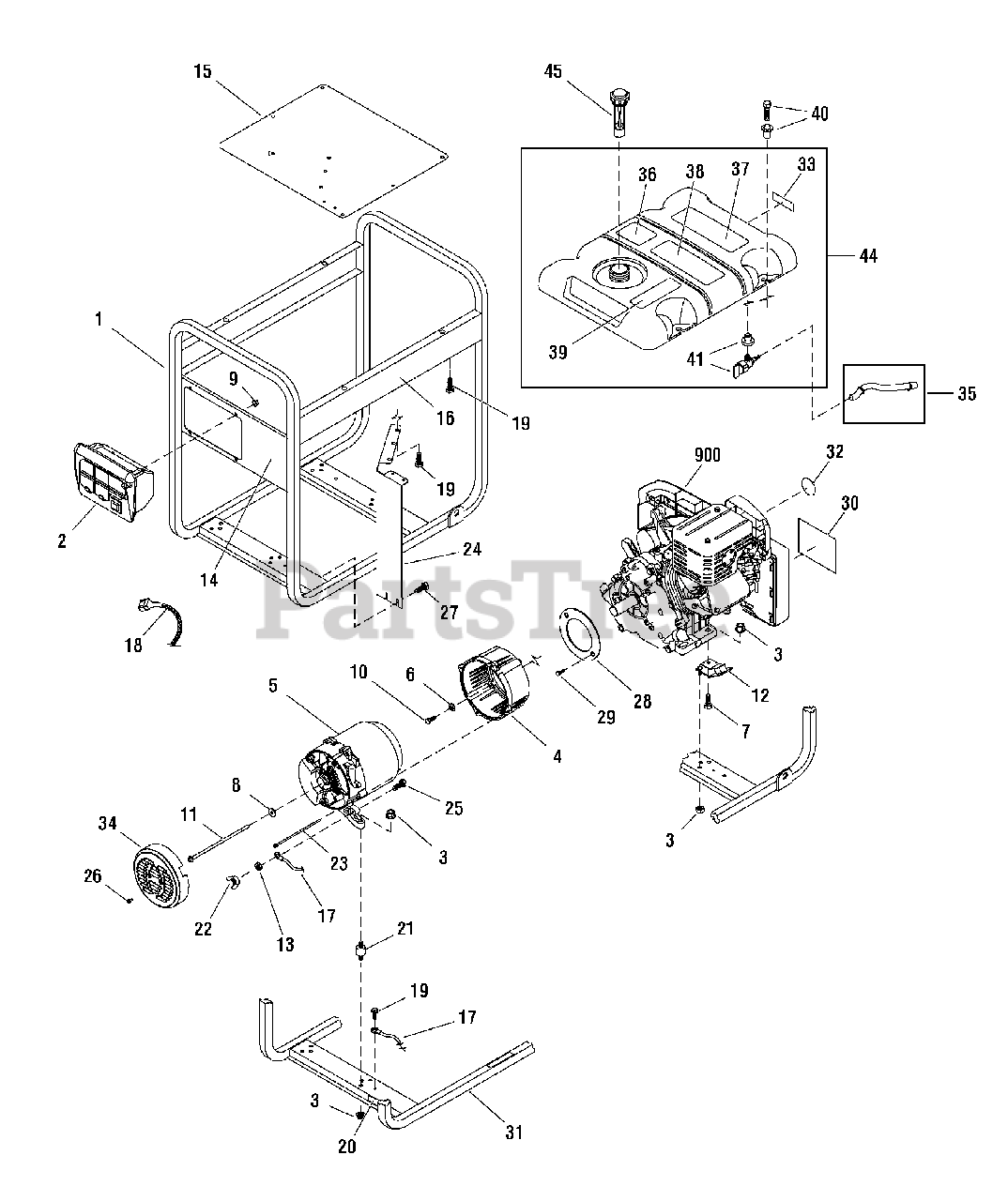

030422-0 - Briggs & Stratton 5,000 Watt Portable Generator Main Unit (310771) Parts Diagram

5,000 Watt Portable Generator

Main Unit (310771) Parts Diagram

  • Title

1

Briggs & Stratton J209927GS

CRADLE

Note: (Includes Ref. No. 20 & 31)

$533.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 204073GS

CONTROL PANEL

$201.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 67989GS

NUT

$3.49

$

In Stock, Qty 9

0

4

Briggs & Stratton 207822GS

ADAPTER, Engine

$94.99

$

Usually ships in 2-12 days

0

5

-----

ALTERNATOR

$

$

Not available

6

-----

* WASHER, Lock, 3/8

$

$

Not available

7

Briggs & Stratton 195398GS

SCREW

$2.99

$

In Stock, only 1 left!

0

8

Briggs & Stratton 207826GS

WASHER

$4.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 189164GS

PALNUT, 3/16

$3.99

$

Usually ships in 2-12 days

0

10

-----

* CAPSCREW, Hex Head, 3/8-16 x 1-1/4

$

$

Not available

11

Briggs & Stratton 207830GS

BOLT

$11.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 70642GS

MOUNT, Vibration

$31.99

$

In Stock, only 2 left!

0

13

Briggs & Stratton 49813GS

NUT

$2.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 209405GS

DECAL

$17.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 209444GS

HEATSHIELD

$93.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 209354GS

DECAL

$12.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 195373GS

WIRE

$2.49

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 208029GS

HARNESS, Power

$95.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton B2153GS

SCREW

$4.49

$

Usually ships in 2-12 days

0

20

Briggs & Stratton B4986GS

DECAL

$2.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 85651GS

MOUNT, Vibration

$24.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 87680GS

NUT

$7.49

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 207828GS

BOLT

$12.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 310727GS

HEATSHIELD

$93.99

$

Usually ships in 2-12 days

0

25

-----

* CAPSCREW, Hex Head, M6-1.0 x 35

$

$

Not available

26

Briggs & Stratton 207824GS

SCREW

$4.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 56893GS

CRIMPTITE

$3.49

$

In Stock, only 1 left!

0

28

Briggs & Stratton B4260GS

DISK

$48.99

$

Usually ships in 2-12 days

0

29

-----

* CAPSCREW, Hex Head, 5/16-24 x 3/4

$

$

Not available

30

Briggs & Stratton 209442GS

DECAL

$8.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 196830GS

DECAL

$15.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 200658GS

DECAL

$8.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 197798GS

DECAL

$9.49

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 207823GS

COVER, Rear Bearing

$27.99

$

In Stock, only 1 left!

0

35

Briggs & Stratton 791745

KIT, Fuel Hose

Note: (Cut to Fit)

$10.99

$

In Stock, Qty 20+

0

36

Briggs & Stratton 202997GS

DECAL

$13.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 189235GS

DECAL

$19.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 194799GS

DECAL

$11.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 188333GS

DECAL

$23.99

$

In Stock, only 1 left!

0

40

Briggs & Stratton 197618GS

KIT, Hardware, Fuel Tank

$17.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 192980GS

VALVE, Fuel

$17.99

$

In Stock, Qty 20+

0

44

Briggs & Stratton 204702GS

TANK, Fuel

$

$

Not available

45

Briggs & Stratton B4363GS

CAP, Fuel

$41.99

$

In Stock, Qty 20+

0

900

-----

** ENGINE

$

$

Not available

--

Briggs & Stratton 310736GS

MANUAL, Operator's

Note: (Not Illustrated)

$14.99

$

Usually ships in 2-12 days

0
