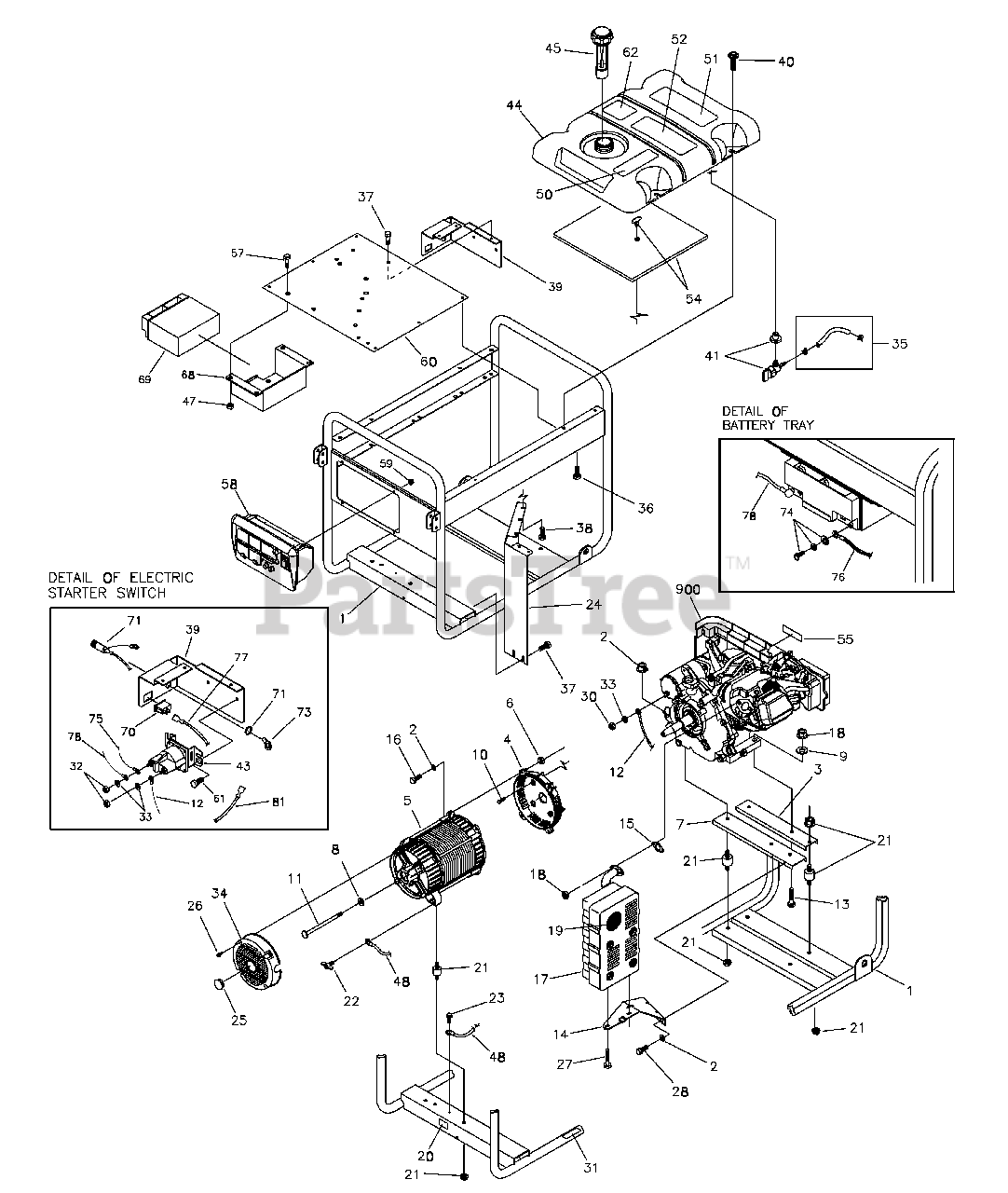

030387-0 - Troy-Bilt 8,000 Watt Portable Generator Main Unit Parts Diagram

8,000 Watt Portable Generator

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton B198267GS

Kit, Cradle

Note: Includes 20, 31

$

$

Not available

2

Washer, Lock 5/16 M8

Note: (Purchase locally)

$

$

Not available

3

Briggs & Stratton B92531GS

Bracket, Support Engine

$30.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 190220GS

Adapter, Engine

$43.99

$

Usually ships in 2-12 days

0

5

NSP

Assy., Alternator

Note: Alternator

$

$

Not available

6

Nut, Hex M8 - 1.25

Note: (Purchase locally)

$

$

Not available

7

Briggs & Stratton B190723GS

Bracket, Support Eng/Muffler

$36.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 96796GS

Washer

$3.49

$

Usually ships in 2-12 days

0

9

Washer, 0.34 x 1 x 10

Note: (Purchase locally)

$

$

Not available

10

Briggs & Stratton 190274DGS

SBHC, 3/8 - 16 x 7/8"

$3.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 73068GS

HHCS, 5/16 - 24 x 8-7/8

$29.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 189302LGS

Asm Wire, #16, Red

$22.99

$

Usually ships in 2-12 days

0

13

HHCS, M8 - 1.25 x 45

Note: (Purchase locally)

$

$

Not available

14

Briggs & Stratton 92532GS

Bracket, Muffler

$22.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 710250

Gasket, Exhaust

$8.49

$

In Stock, only 1 left!

0

16

HHCS, M8 - 1.25 x 25

Note: (Purchase locally)

$

$

Not available

17

Briggs & Stratton B4206AGS

Muffler

$

$

Not available

18

Briggs & Stratton 67989GS

Nut, M8 Flange Serrated

$3.49

$

In Stock, Qty 9

0

19

Briggs & Stratton 83083GS

Screen, Spark Arrest

$9.49

$

In Stock, only 2 left!

0

20

Briggs & Stratton B4986GS

Decal, Ground

$2.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 198222GS

Kit, Vibration Mount

$18.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 86494GS

Screw, Wing M6 - 1.0 x 16

$2.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 86292GS

Screw, 10 - 16 x 3/4, Self Drill
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

24

Briggs & Stratton 194390GS

Assy., Heat Shield

$86.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 191190GS

Cap

$3.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 74908GS

Taptite, M5 - 0.8 x 10

$2.99

$

Usually ships in 2-12 days

0

27

HHCS, M6-1.0 x 12

Note: (Purchase locally)

$

$

Not available

28

HHCS, 5/16 - 18 x 3/4

Note: (Purchase locally)

$

$

Not available

30

Nut, Hex M6 - 1

Note: (Purchase locally)

$

$

Not available

31

Briggs & Stratton 196830GS

Decal, Caution Hot Muffler

$15.99

$

Usually ships in 2-12 days

0

32

Nut, 1/4 - 20

Note: (Purchase locally)

$

$

Not available

33

Washer, 1/4 Lock

Note: (Purchase locally)

$

$

Not available

34

Briggs & Stratton 195422GS

Cover, Rbc Plastic With Cap

$13.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 791745

Kit, Hose, Fuel

Note: Cut To Fit

$10.99

$

In Stock, Qty 20+

0

36

Briggs & Stratton 192376GS

Screw, 12 - 24 x 1/2 Thread Forming

$3.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 56893GS

Crimptite, 10 - 24 x 1/2

$3.49

$

In Stock, only 1 left!

0

38

Briggs & Stratton B2153GS

Screw, Self Driller, 12 - 24 x 7/8

$4.49

$

Usually ships in 2-12 days

0

39

Briggs & Stratton B196810GS

Bracket, Starter

$35.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 199256GS

Bolt, Shoulder, M6 - 1.0 w/Washer

$2.49

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 192980GS

Valve, Fuel

$17.99

$

In Stock, Qty 20+

0

43

Briggs & Stratton 691656

Solenoid

$31.99

$

In Stock, Qty 20+

0

44

Briggs & Stratton 194217GS

Assy., Tank Fuel

Note: Includes Items 41, 50, 51, 52 & 62

$

$

Not available

45

Briggs & Stratton B4363GS

Cap, Tank Fuel

$41.99

$

In Stock, Qty 20+

0

47

Briggs & Stratton 77395GS

Nut, M6 Flange Lock

$3.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 195373GS

Wire, Ground

$2.49

$

Usually ships in 2-12 days

0

49

Washer, Shakeproof, Ext

Note: (Purchase locally)

$

$

Not available

50

Briggs & Stratton 188333GS

Decal, Instruction Fuel Level

$23.99

$

In Stock, only 1 left!

0

51

Briggs & Stratton 194799GS

Decal, Danger

$11.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 189235GS

Decal, Start Instructions

$19.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 194448GS

Kit, Insulation w/ Clip

$31.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 197798GS

Decal, Fuel Shutoff

$9.49

$

Usually ships in 2-12 days

0

57

HHCS, M6 - 1.0 x 12

Note: (Purchase locally)

$

$

Not available

58

Briggs & Stratton 200301GS

Assy. Control Panel

$220.99

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 189164GS

Palnut, 3/16

$3.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 195537GS

Heatsheild

$72.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton B4300GS

HHS, 1/4 - 20 x 1/2, Trilobular
(Superseded to 704130)

$3.99

$

In Stock, Qty 11

0

62

Briggs & Stratton 202997GS

Decal, Warning, CO

$13.99

$

Usually ships in 2-12 days

0

68

Briggs & Stratton 195680GS

Tray, Battery

$62.99

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 193463GS

Battery

$172.99

$

Usually ships in 2-12 days

0

70

Briggs & Stratton 87799GS

Switch, Rocker On/Off

$7.49

$

In Stock, Qty 10

0

71

Briggs & Stratton 196626GS

Assy, Jack, Coax, DC
(Superseded to 312004GS)

$10.99

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 192351GS

Lug, 1/4, #22/18

$2.49

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 193347GS

Kit, Hardware Battery

$2.99

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 196627AGS

Wire-A, #13, Red

$4.49

$

Usually ships in 2-12 days

0

76

Briggs & Stratton 185939KGS

Asm Wire, #55 Black

$

$

Not available

77

Briggs & Stratton 196627BGS

Wire-A, #13B, Red

$4.49

$

Usually ships in 2-12 days

0

78

Briggs & Stratton 189302MGS

Asm Wire, #13 Red

$22.99

$

Usually ships in 2-12 days

0

81

Briggs & Stratton 196627EGS

Wire-A, #0, Black

$4.99

$

Usually ships in 2-12 days

0

900

Engine

Note: Contact Engine Manufacturer

$

$

Not available

Briggs & Stratton 200869GS

Manual, Operator's

Note: Parts Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton BB3061BGS

Bottle, Oil
(Superseded to 100005)

Note: Parts Not Illustrated

$8.99

$

In Stock, Qty 20+

0

Briggs & Stratton B4177GS

Charger, Battery
(Superseded to 705927)

Note: Parts Not Illustrated

$38.99

$

In Stock, Qty 9

0

Briggs & Stratton 202180GS

Decal, Family, CA EVP

Note: Parts Not Illustrated

$8.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 191895DGS

Set, Cord, 30A

Note: Parts Not Illustrated

$231.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 198051GS

Kit, Decal Service

Note: Parts Not Illustrated

$24.99

$

Usually ships in 2-12 days

0
