030382-0 - Briggs & Stratton 8,000 Watt Portable Generator Control Panel Parts Diagram

8,000 Watt Portable Generator

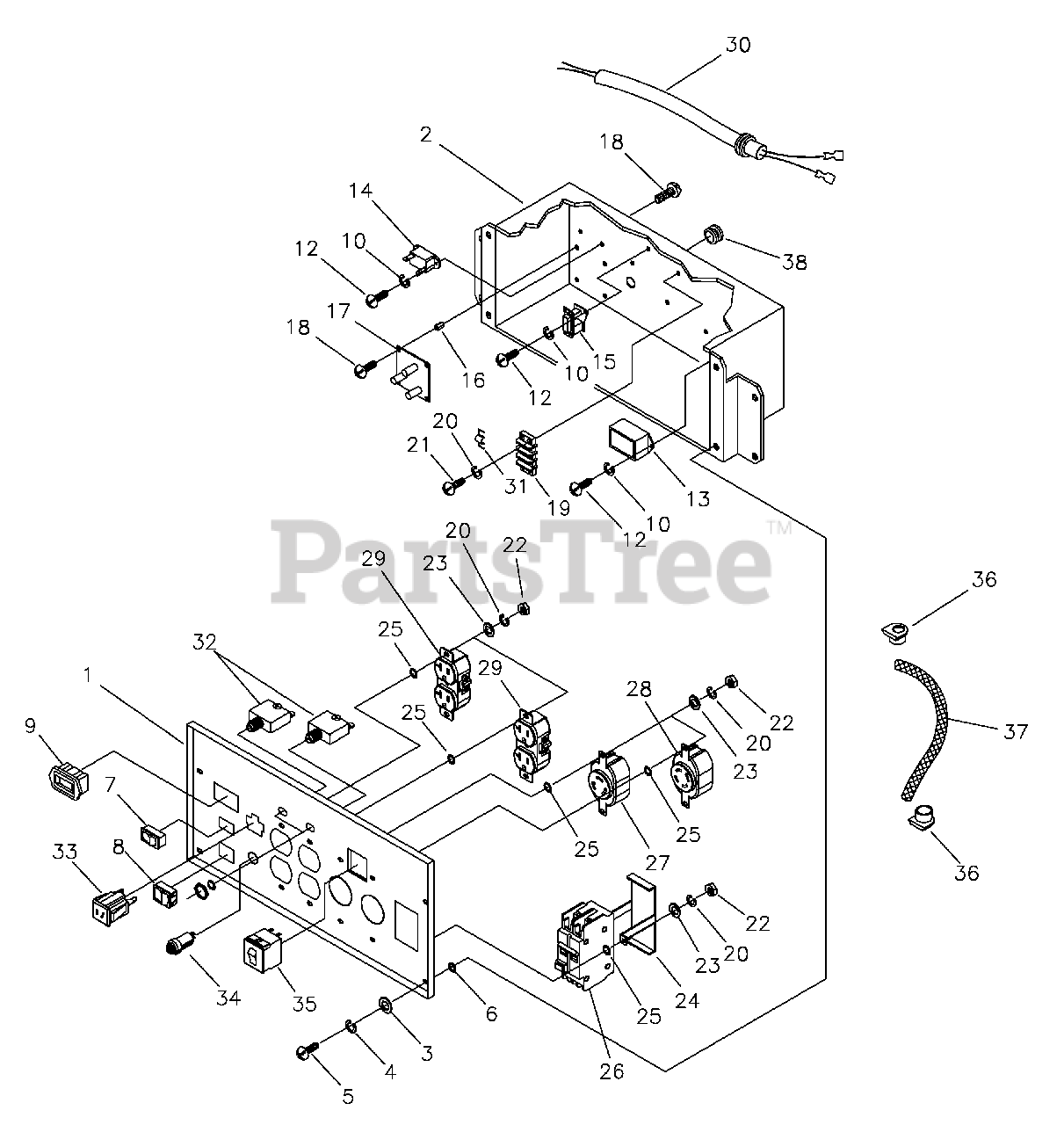

Control Panel Parts Diagram

  • Title

1

Briggs & Stratton B195397GS

Panel, Control

$148.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton B192837GS

Box, Control Panel

$136.99

$

Usually ships in 2-12 days

0

3

Washer, Flat, #10 - M5

Note: (Purchase locally)

$

$

Not available

4

Lockwasher, M5

Note: (Purchase locally)

$

$

Not available

5

PPHMS, M5 - 0.8 x 12

Note: (Purchase locally)

$

$

Not available

6

Washer, M6 - 1/4, Int. Shakeproof

Note: (Purchase locally)

$

$

Not available

7

Briggs & Stratton 82538GS

Switch, Rocker

$6.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 192855GS

Switch, Rocker

$29.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 202602GS

Hour Meter

$97.99

$

Usually ships in 2-12 days

0

10

Lockwasher, M3

Note: (Purchase locally)

$

$

Not available

11

Nut, M3 - 0.5

Note: (Purchase locally)

$

$

Not available

12

PHMS, M3 - 0.5 x 10

Note: (Purchase locally)

$

$

Not available

13

Briggs & Stratton 77314GS

Thermal, Relay

$76.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 87962GS

Breaker, Circuit, 10A, 12V

$29.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 84028GS

Transformer, Idle Control

$47.99

$

In Stock, only 1 left!

0

16

Briggs & Stratton 64525GS

Standoff, Hex, 3/4"

$5.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 195406GS

PCB, Idle Control, 10KW

$198.99

$

Usually ships in 2-12 days

0

18

PHTS, 6 - 32 x 3/8"

Note: (Purchase locally)

$

$

Not available

19

Briggs & Stratton 92953GS

Terminal, Block

$17.99

$

Usually ships in 2-12 days

0

20

Lockwasher, M4

Note: (Purchase locally)

$

$

Not available

21

PPHMS, M4 - 0.7 x 20

Note: (Purchase locally)

$

$

Not available

22

Nut, M4 - 0.7

Note: (Purchase locally)

$

$

Not available

23

Washer, Flat, M4

Note: (Purchase locally)

$

$

Not available

24

Briggs & Stratton 192931GS

Bracket, GFCI Breaker

$46.99

$

Usually ships in 2-12 days

0

25

Washer, Shakeproof, Int. #8

Note: (Purchase locally)

$

$

Not available

26

Briggs & Stratton 192828EGS

Breaker, Circuit, GFCI, 40A

$198.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 68868GS

Outlet, 120V, 30A
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 43437GS

Outlet, 120/240V, 30A

$17.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 68759GS

Outlet, 120V, 20A, Duplex

$24.99

$

In Stock, only 4 left!

0

30

Briggs & Stratton 194953GS

Harness, Wire

$

$

Currently unavailable

31

Briggs & Stratton 193597GS

Jumper, Terminal Block

$15.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 202394GS

Breaker, Circuit, 20A With Hardware

$33.99

$

In Stock, only 1 left!

0

33

Briggs & Stratton 90418GS

Outlet, 12VDC, Snap

$

$

Not available

34

Briggs & Stratton B4694GS

Jack, Coaxial
(Superseded to 312004GS)

$10.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 202033GS

Breaker, Circuit, 30A, 2P

$104.99

$

In Stock, only 1 left!

0

36

Briggs & Stratton 188632GS

Boot, Rubber Wire Outlet

$3.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 77043BGS

Conduit, Flex, .50 I.D. x 9.5

$1.49

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 62265GS

Grommet

$8.49

$

Usually ships in 2-12 days

0
