030380-0 - Briggs & Stratton 5,000 Watt Portable Generator Control Panel Parts Diagram

5,000 Watt Portable Generator

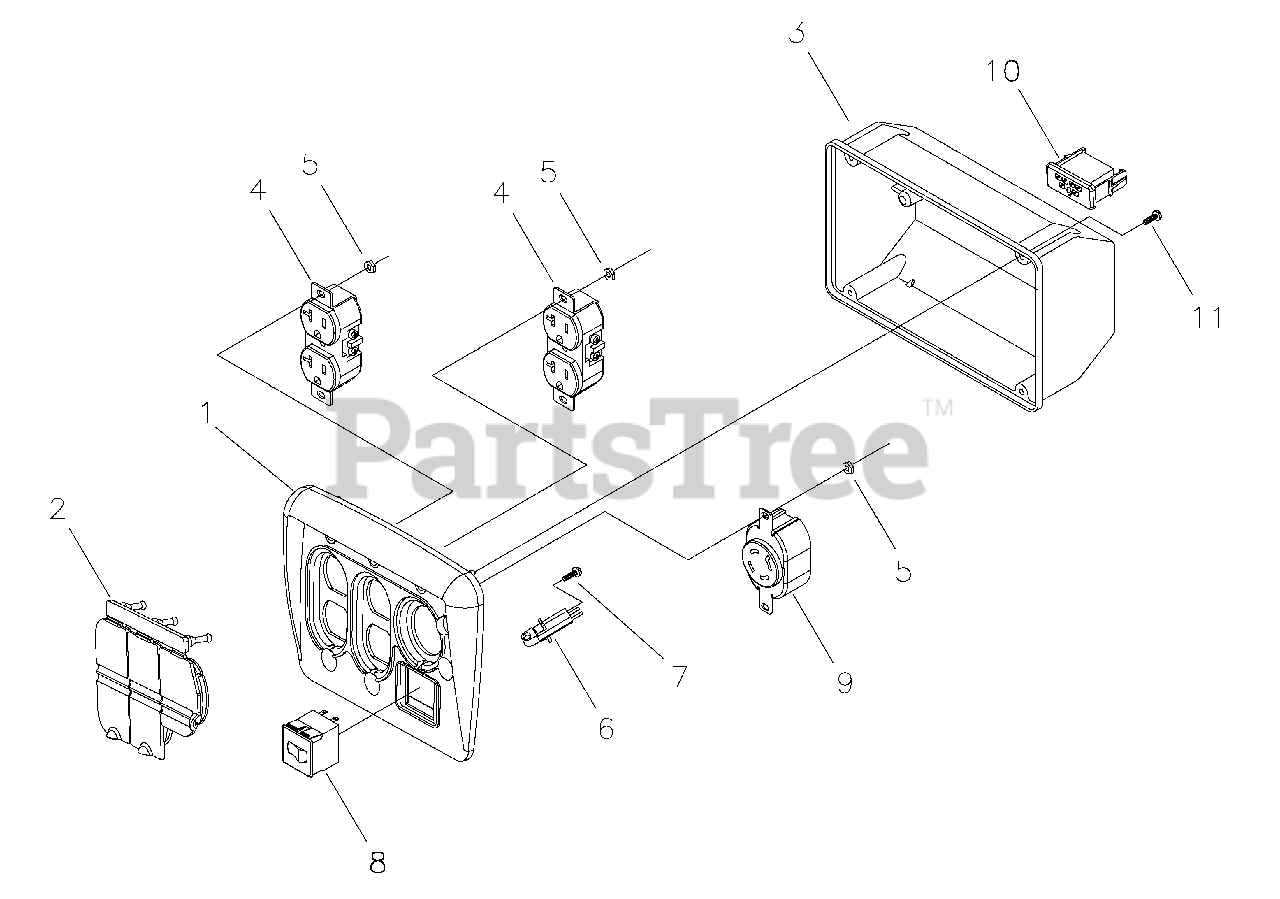

Control Panel Parts Diagram

  • Title

1

Briggs & Stratton 201571GS

Panel, Control

$

$

Not available

2

Briggs & Stratton 197472GS

Cover, Outlet Flip

$21.99

$

In Stock, only 1 left!

0

3

Briggs & Stratton 201572GS

Cover, Back Panel

$15.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 197731GS

Outlet, 120V, 15/20A Duplex

$18.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 189164GS

Nut, 3/16 Pal

$3.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 202951GS

Module, Led

$6.99

$

Usually ships in 2-12 days

0

7

-----

Screw, 3 x 6, Tapping

Note: (Purchase locally)

$

$

Not available

8

Briggs & Stratton 202030GS

Breaker, Circuit, 20A

$104.99

$

In Stock, only 1 left!

0

8

Briggs & Stratton 191481GS

Boot, Breaker Circuit

Note: (Not Shown)

$11.99

$

In Stock, only 1 left!

0

9

Briggs & Stratton 43437GS

Outlet, 120/240V, 30A

$17.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 201678GS

Housing, Receptacle, 6 Pin

$10.99

$

Usually ships in 2-12 days

0

11

-----

PPPHS, M3 - 0.5 x 12

Note: (Purchase locally)

$

$

Not available
