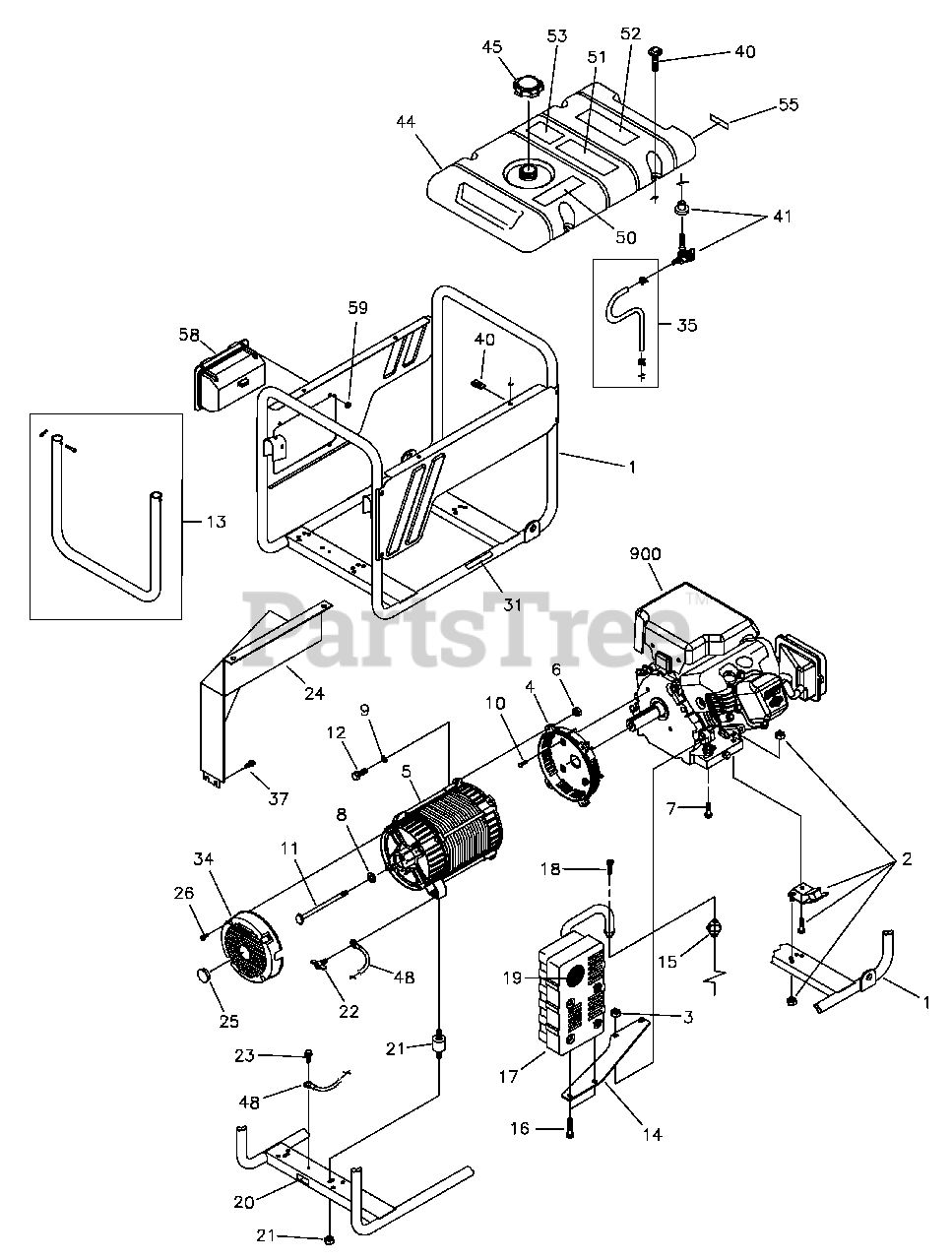

030377-0 - Troy-Bilt 3,250 Watt Portable Generator Main Unit Parts Diagram

3,250 Watt Portable Generator

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 197670GS

Kit, Cradle

Note: Includes Items 20 & 31

$285.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 194150GS

Kit, Vibration, Mount, 45°

$13.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 67989GS

Nut, M8 Flange Serrated

$3.49

$

In Stock, Qty 5

0

4

Briggs & Stratton 186058AGS

Housing, Engine Adapter

$30.99

$

Usually ships in 2-12 days

0

5

NSP

Assy, Alternator

Note: Alternator

$

$

Not available

6

Nut, Hex M8 - 1.25

Note: (Purchase locally)

$

$

Not available

7

TPHMS, M8 - 1.25 x 35

Note: (Purchase locally)

$

$

Not available

8

Briggs & Stratton 96796GS

Washer, 8.4 x 22.2 x 3

$3.49

$

Usually ships in 2-12 days

0

9

Washer, Lock 5/16 M8

Note: (Purchase locally)

$

$

Not available

10

HHCS, 5/16-24 x 3/4

Note: (Purchase locally)

$

$

Not available

11

Briggs & Stratton 47480GS

HHCS, 5/16-24 x 7

$10.99

$

Usually ships in 2-12 days

0

12

HHCS, M8 1.25 x 25

Note: (Purchase locally)

$

$

Not available

13

Briggs & Stratton 194330GS

Kit, Handle

$49.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 191785GS

Bracket, Muffler

$16.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 697815

Gasket, Exhaust
(Superseded to 692237)

$5.49

$

In Stock, only 2 left!

0

16

HHCS, M6 - 1 x 12 w/LW

Note: (Purchase locally)

$

$

Not available

17

Briggs & Stratton 188301GS

Muffler

$152.99

$

Usually ships in 2-12 days

0

18

SHCS, M6 - 1 x 20

Note: (Purchase locally)

$

$

Not available

19

Briggs & Stratton 83083GS

Screen, Spark Arrest

$9.49

$

In Stock, only 2 left!

0

20

Briggs & Stratton B4986GS

Decal, Ground, Green

$2.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 194153GS

Kit, Vibration Mount

$11.99

$

In Stock, only 3 left!

0

22

Briggs & Stratton 86494GS

Screw, Wing M6 - 1.0 x 16

$2.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton B2153GS

Screw, 12 - 14 x 7/8, Self Drill

$4.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 198037GS

Shield, Heat

$130.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 191190GS

Cap

$3.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 74908GS

Screw, M5-0.8 x 10, Taptite

$2.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 196830GS

Decal, Exhaust Warning

$15.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 195422GS

Cover, RBC, Plastic w/Cap

$13.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 195207GS

Kit, Hose Formed

$

$

Not available

37

Briggs & Stratton 56893GS

Crimptite, 10-24 x 1/2

$3.49

$

In Stock, only 1 left!

0

40

Briggs & Stratton 199433GS

Kit, Fuel Tank Hardware w/U-Clips

$11.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 199284GS

U-Clips

Note: Optional Accessory

$4.49

$

In Stock, only 1 left!

0

41

Briggs & Stratton 192980GS

Kit, Valve, Fuel Tank

$17.99

$

In Stock, Qty 20+

0

44

Briggs & Stratton 198226GS

Assy., Tank, Fuel

Note: Includes Items 41, 50, 51, 52, 53 & 55

$

$

Not available

45

Briggs & Stratton 200095GS

Cap, Fuel
(Superseded to 846987)

$21.99

$

In Stock, only 4 left!

0

48

Briggs & Stratton 195373GS

Wire, Ground

$2.49

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 188333GS

Decal, Gas Fill

$23.99

$

In Stock, only 1 left!

0

51

Briggs & Stratton 194799GS

Decal, Danger

$11.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 189235GS

Decal, Start Instructions

$19.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 202997GS

Decal, Warning, CO

$13.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 197798GS

Decal, Shut-Off, Fuel

$9.49

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 197641GS

Assy, Control Panel

$

$

Not available

59

Nut, Palnut, 3/16"

Note: (Purchase locally)

$

$

Not available

900

Engine

Note: Contact Engine Manufacturer

$

$

Not available

Briggs & Stratton 204109GS

Manual, Operator's

Note: Parts Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 202387GS

Kit, Decals, Service

Note: Parts Not Illustrated

$28.99

$

Usually ships in 2-12 days

0
