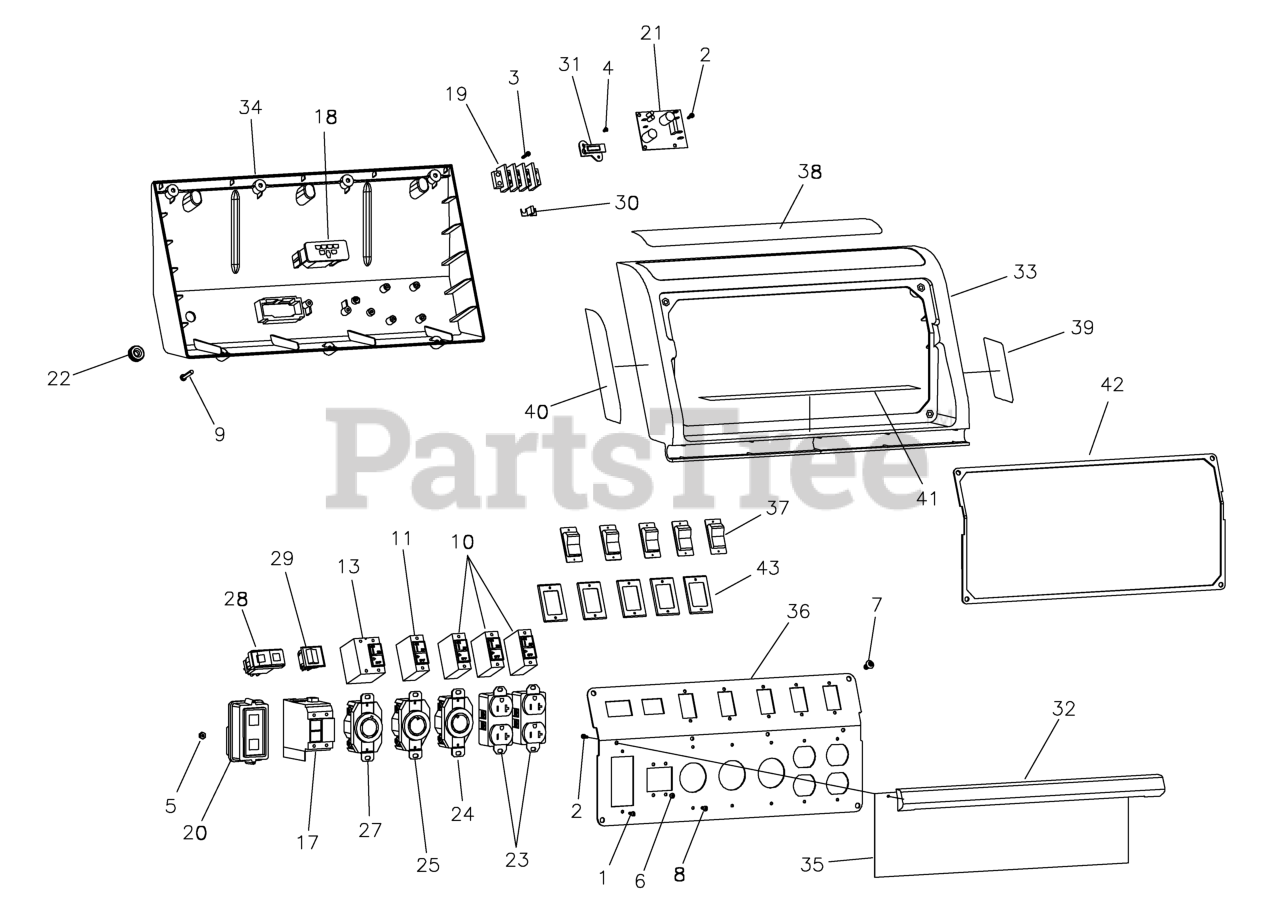

030374-0 - Milwaukee 5,500 Watt Portable Generator Control Panel Parts Diagram

5,500 Watt Portable Generator

Control Panel Parts Diagram

  • Title

1

Screw, M3 x 10mm

Note: (Purchase locally)

$

$

Not available

2

Screw, M3 0.5 x 12

Note: (Purchase locally)

$

$

Not available

3

Screw, M5 0.5 x 18

Note: (Purchase locally)

$

$

Not available

4

Screw, M3 x 6

Note: (Purchase locally)

$

$

Not available

5

Nut, #6 - 32

Note: (Purchase locally)

$

$

Not available

6

Screw, #6 - 32 x 3/16

Note: (Purchase locally)

$

$

Not available

7

Screw, 1/4 - 20 x 1/2"

Note: (Purchase locally)

$

$

Not available

8

Screw, #6 - 32 x 3/8"

Note: (Purchase locally)

$

$

Not available

9

Screw, 8 - 16 x 1, Slotted Plastite

Note: (Purchase locally)

$

$

Not available

10

Briggs & Stratton 206473GS

Breaker, 20A

$120.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 206469GS

Breaker, 30A

$104.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 206508GS

Breaker, 30A - 2 Pole

$90.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 206511GS

Circuit Breaker, 27.5A

$426.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 201678GS

Connector

$10.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 193427GS

Terminal Block

$8.49

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 206506GS

Module, GFCI Sensing

$316.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 193362GS

Board, Idle Control

$164.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 38057GS

Grommet

$3.49

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 68759GS

Outlet, 120V, 20A, Duplex

$24.99

$

In Stock, only 4 left!

0

24

Briggs & Stratton 74190GS

Outlet, 120V, 20A

$38.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 68868GS

Outlet, 120V, 30A
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 43437GS

Outlet, 120/240V, 30A

$17.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 206463GS

Switch, On/Off

$35.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 206462GS

Switch, Rocker, Auto Idle

$15.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 193095GS

Jumper

$13.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 84028GS

Transformer

$47.99

$

In Stock, only 1 left!

0

32

Briggs & Stratton 206461GS

Curtain Rod

$6.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 206505GS

Panel, Control, Front

Note: (Includes #’s 39, 40 & 41)

$38.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 206460GS

Panel, Control, Back

$43.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 206465GS

Curtain

$11.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 206471GS

Panel, Control

$33.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 206464GS

Seal, Rubber, Breaker

$4.49

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 206205GS

Decal, Logo

$12.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 205974GS

Decal, Warning, Exhaust

$8.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 205975GS

Decal, Warning

$12.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 205969GS

Decal, Warning, English

$26.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 206843GS

Gasket

$15.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 206844GS

Seal, Breaker

$4.49

$

Usually ships in 2-12 days

0
